Ticketing Solution Detailed Design
Version: v2.0-beta
Updated: 2025-12-29
Status: Preview
1. System Overview and Design Philosophy
1.1 System Positioning
This system is an AI-driven intelligent ticket management platform built on the NocoBase low-code platform. The core goal is:
1.2 Design Philosophy
Philosophy One: T-Shaped Data Architecture
What is T-Shaped Architecture?
Inspired by the "T-shaped talent" concept — horizontal breadth + vertical depth:
- Horizontal (Main Table): Universal capabilities covering all business types — ticket number, status, assignee, SLA and other core fields
- Vertical (Extension Tables): Specialized fields for specific business types — equipment repair has serial numbers, complaints have compensation plans
Why This Design?
| Traditional Approach | T-Shaped Architecture |
|---|---|
| One table per business type, duplicated fields | Common fields unified, business fields extended as needed |
| Statistical reports need to merge multiple tables | One main table for all ticket statistics |
| Process changes require modifications in multiple places | Core process changes in one place only |
| New business types require new tables | Only add extension tables, main flow unchanged |
Philosophy Two: AI Employee Team
Not "AI features", but "AI employees". Each AI has a clear role, personality, and responsibilities:
| AI Employee | Position | Core Responsibilities | Trigger Scenario |
|---|---|---|---|
| Sam | Service Desk Supervisor | Ticket routing, priority assessment, escalation decisions | Automatic on ticket creation |
| Grace | Customer Success Expert | Reply generation, tone adjustment, complaint handling | When agent clicks "AI Reply" |
| Max | Knowledge Assistant | Similar cases, knowledge recommendations, solution synthesis | Automatic on ticket detail page |
| Lexi | Translator | Multi-language translation, comment translation | Automatic when foreign language detected |
Why the "AI Employee" Model?
- Clear Responsibilities: Sam handles routing, Grace handles replies, no confusion
- Easy to Understand: Saying "Let Sam analyze this" is friendlier than "Call the classification API"
- Extensible: Adding new AI capabilities = hiring new employees

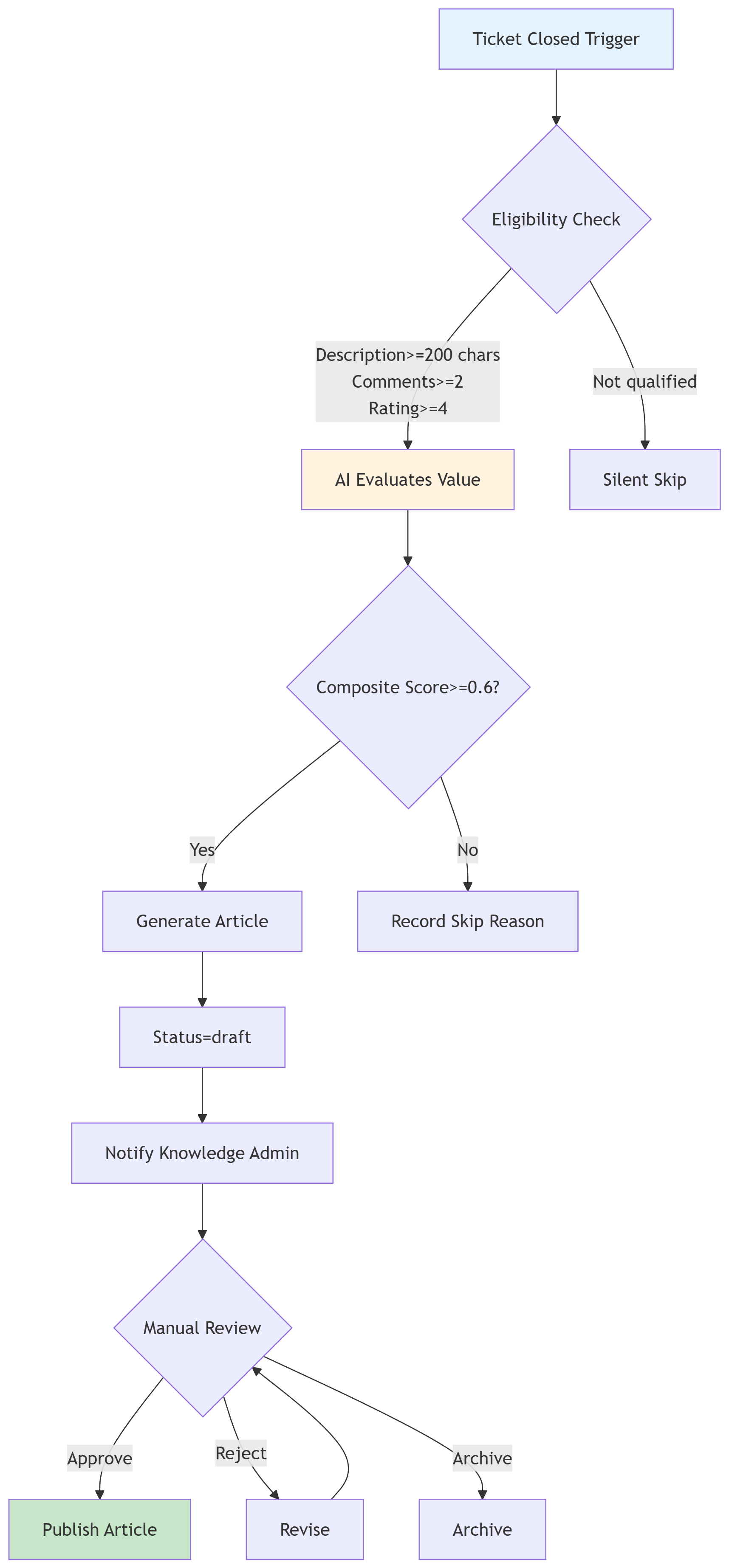

Philosophy Three: Knowledge Self-Circulation
This forms a Knowledge Accumulation - Knowledge Application closed loop.
2. Core Entities and Data Model
2.1 Entity Relationship Overview
2.2 Core Table Details

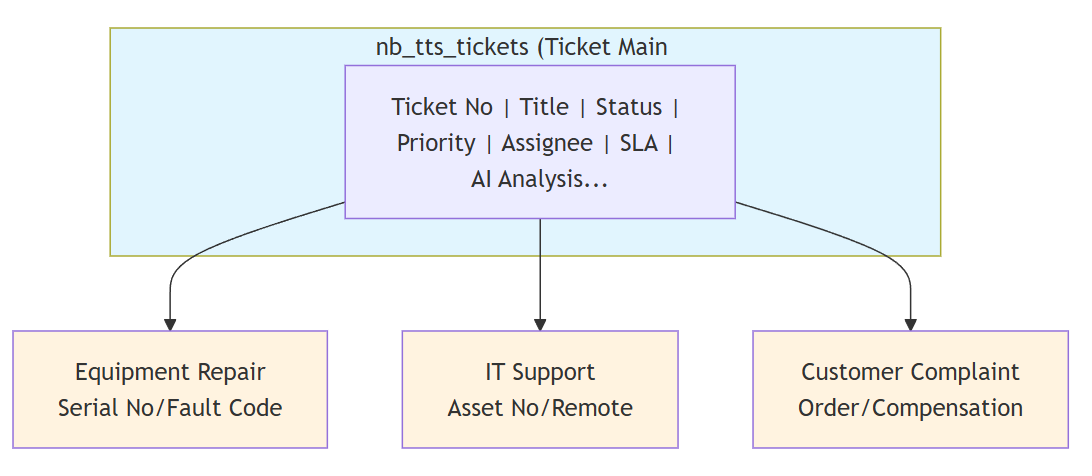

2.2.1 Ticket Main Table (nb_tts_tickets)
This is the core of the system, using a "wide table" design with all commonly used fields in the main table.
Basic Information
| Field | Type | Description | Example |
|---|---|---|---|
| id | BIGINT | Primary key | 1001 |
| ticket_no | VARCHAR | Ticket number | TKT-20251229-0001 |
| title | VARCHAR | Title | Slow network connection |
| description | TEXT | Problem description | Since this morning, office network... |
| biz_type | VARCHAR | Business type | it_support |
| priority | VARCHAR | Priority | P1 |
| status | VARCHAR | Status | processing |
Source Tracking
| Field | Type | Description | Example |
|---|---|---|---|
| source_system | VARCHAR | Source system | crm / email / iot |
| source_channel | VARCHAR | Source channel | web / phone / wechat |
| external_ref_id | VARCHAR | External reference ID | CRM-2024-0001 |
Contact Information
| Field | Type | Description |
|---|---|---|
| customer_id | BIGINT | Customer ID |
| contact_name | VARCHAR | Contact name |
| contact_phone | VARCHAR | Contact phone |
| contact_email | VARCHAR | Contact email |
| contact_company | VARCHAR | Company name |
Assignee Information
| Field | Type | Description |
|---|---|---|
| assignee_id | BIGINT | Assignee ID |
| assignee_department_id | BIGINT | Assignee department ID |
| transfer_count | INT | Transfer count |
Time Nodes
| Field | Type | Description | Trigger Timing |
|---|---|---|---|
| submitted_at | TIMESTAMP | Submission time | On ticket creation |
| assigned_at | TIMESTAMP | Assignment time | When assignee specified |
| first_response_at | TIMESTAMP | First response time | On first reply to customer |
| resolved_at | TIMESTAMP | Resolution time | When status changes to resolved |
| closed_at | TIMESTAMP | Closure time | When status changes to closed |
SLA Related
| Field | Type | Description |
|---|---|---|
| sla_config_id | BIGINT | SLA config ID |
| sla_response_due | TIMESTAMP | Response deadline |
| sla_resolve_due | TIMESTAMP | Resolution deadline |
| sla_paused_at | TIMESTAMP | SLA pause start time |
| sla_paused_duration | INT | Cumulative pause duration (minutes) |
| is_sla_response_breached | BOOLEAN | Response breached |
| is_sla_resolve_breached | BOOLEAN | Resolution breached |
AI Analysis Results
| Field | Type | Description | Populated By |
|---|---|---|---|
| ai_category_code | VARCHAR | AI-identified category | Sam |
| ai_sentiment | VARCHAR | Sentiment analysis | Sam |
| ai_urgency | VARCHAR | Urgency level | Sam |
| ai_keywords | JSONB | Keywords | Sam |
| ai_reasoning | TEXT | Reasoning process | Sam |
| ai_suggested_reply | TEXT | Suggested reply | Sam/Grace |
| ai_confidence_score | NUMERIC | Confidence score | Sam |
| ai_analysis | JSONB | Complete analysis result | Sam |
Multi-Language Support
| Field | Type | Description | Populated By |
|---|---|---|---|
| source_language_code | VARCHAR | Original language | Sam/Lexi |
| target_language_code | VARCHAR | Target language | System default EN |
| is_translated | BOOLEAN | Whether translated | Lexi |
| description_translated | TEXT | Translated description | Lexi |
2.2.2 Business Extension Tables
Equipment Repair (nb_tts_biz_repair)
| Field | Type | Description |
|---|---|---|
| ticket_id | BIGINT | Associated ticket ID |
| equipment_model | VARCHAR | Equipment model |
| serial_number | VARCHAR | Serial number |
| fault_code | VARCHAR | Fault code |
| spare_parts | JSONB | Spare parts list |
| maintenance_type | VARCHAR | Maintenance type |
IT Support (nb_tts_biz_it_support)
| Field | Type | Description |
|---|---|---|
| ticket_id | BIGINT | Associated ticket ID |
| asset_number | VARCHAR | Asset number |
| os_version | VARCHAR | OS version |
| software_name | VARCHAR | Software involved |
| remote_address | VARCHAR | Remote address |
| error_code | VARCHAR | Error code |
Customer Complaint (nb_tts_biz_complaint)
| Field | Type | Description |
|---|---|---|
| ticket_id | BIGINT | Associated ticket ID |
| related_order_no | VARCHAR | Related order number |
| complaint_level | VARCHAR | Complaint level |
| compensation_amount | DECIMAL | Compensation amount |
| compensation_type | VARCHAR | Compensation method |
| root_cause | TEXT | Root cause |
2.2.3 Comments Table (nb_tts_ticket_comments)
Core Fields
| Field | Type | Description |
|---|---|---|
| id | BIGINT | Primary key |
| ticket_id | BIGINT | Ticket ID |
| parent_id | BIGINT | Parent comment ID (supports tree structure) |
| content | TEXT | Comment content |
| direction | VARCHAR | Direction: inbound(customer)/outbound(agent) |
| is_internal | BOOLEAN | Whether internal note |
| is_first_response | BOOLEAN | Whether first response |
AI Review Fields (for outbound)
| Field | Type | Description |
|---|---|---|
| source_language_code | VARCHAR | Source language |
| content_translated | TEXT | Translated content |
| is_translated | BOOLEAN | Whether translated |
| is_ai_blocked | BOOLEAN | Whether blocked by AI |
| ai_block_reason | VARCHAR | Block reason |
| ai_block_detail | TEXT | Detailed explanation |
| ai_quality_score | NUMERIC | Quality score |
| ai_suggestions | TEXT | Improvement suggestions |
2.2.4 Ratings Table (nb_tts_ratings)
| Field | Type | Description |
|---|---|---|
| ticket_id | BIGINT | Ticket ID (unique) |
| overall_rating | INT | Overall satisfaction (1-5) |
| response_rating | INT | Response speed (1-5) |
| professionalism_rating | INT | Professionalism (1-5) |
| resolution_rating | INT | Problem resolution (1-5) |
| nps_score | INT | NPS score (0-10) |
| tags | JSONB | Quick tags |
| comment | TEXT | Written feedback |

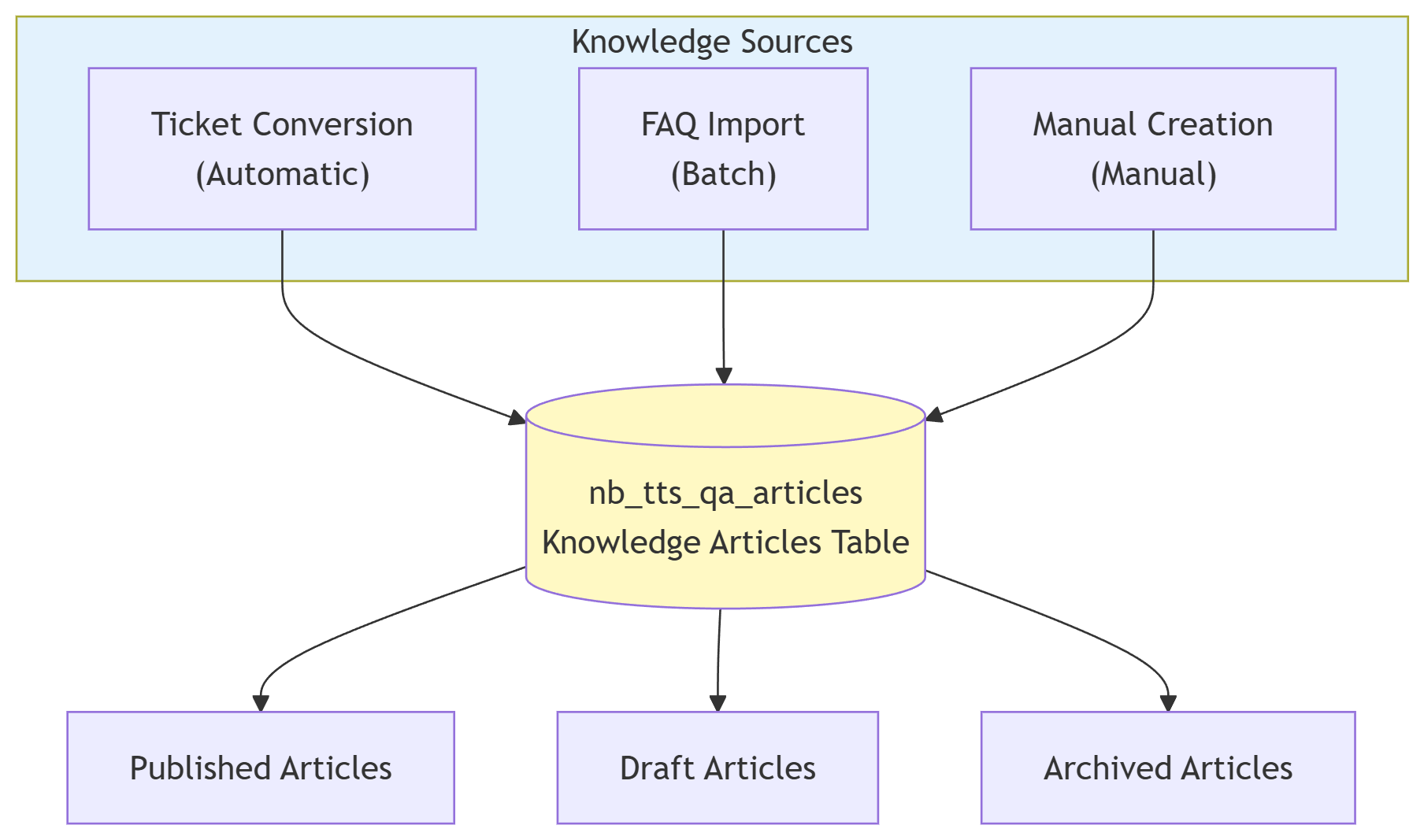

2.2.5 Knowledge Articles Table (nb_tts_qa_articles)
| Field | Type | Description |
|---|---|---|
| article_no | VARCHAR | Article number KB-T0001 |
| title | VARCHAR | Title |
| content | TEXT | Content (Markdown) |
| summary | TEXT | Summary |
| category_code | VARCHAR | Category code |
| keywords | JSONB | Keywords |
| source_type | VARCHAR | Source: ticket/faq/manual |
| source_ticket_id | BIGINT | Source ticket ID |
| ai_generated | BOOLEAN | Whether AI-generated |
| ai_quality_score | NUMERIC | Quality score |
| status | VARCHAR | Status: draft/published/archived |
| view_count | INT | View count |
| helpful_count | INT | Helpful count |
2.3 Data Table List
| No. | Table Name | Description | Record Type |
|---|---|---|---|
| 1 | nb_tts_tickets | Ticket main table | Business data |
| 2 | nb_tts_biz_repair | Equipment repair extension | Business data |
| 3 | nb_tts_biz_it_support | IT support extension | Business data |
| 4 | nb_tts_biz_complaint | Customer complaint extension | Business data |
| 5 | nb_tts_customers | Customer main table | Business data |
| 6 | nb_tts_customer_contacts | Customer contacts | Business data |
| 7 | nb_tts_ticket_comments | Ticket comments | Business data |
| 8 | nb_tts_ratings | Satisfaction ratings | Business data |
| 9 | nb_tts_qa_articles | Knowledge articles | Knowledge data |
| 10 | nb_tts_qa_article_relations | Article relations | Knowledge data |
| 11 | nb_tts_faqs | FAQs | Knowledge data |
| 12 | nb_tts_tickets_categories | Ticket categories | Config data |
| 13 | nb_tts_sla_configs | SLA configuration | Config data |
| 14 | nb_tts_skill_configs | Skill configuration | Config data |
| 15 | nb_tts_business_types | Business types | Config data |
3. Ticket Lifecycle
3.1 Status Definitions
| Status | Name | Description | SLA Timing | Color |
|---|---|---|---|---|
| new | New | Just created, awaiting assignment | Start | Blue |
| assigned | Assigned | Assignee specified, awaiting pickup | Continue | Cyan |
| processing | Processing | Being processed | Continue | Orange |
| pending | Pending | Waiting for customer feedback | Paused | Gray |
| transferred | Transferred | Transferred to another person | Continue | Purple |
| resolved | Resolved | Waiting for customer confirmation | Stop | Green |
| closed | Closed | Ticket ended | Stop | Gray |
| cancelled | Cancelled | Ticket cancelled | Stop | Gray |
3.2 Status Flow Diagram

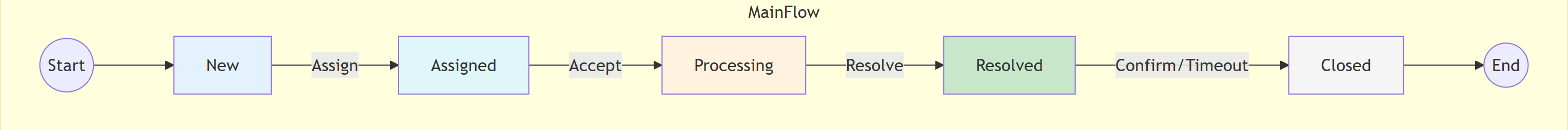

Main Flow (Left to Right)

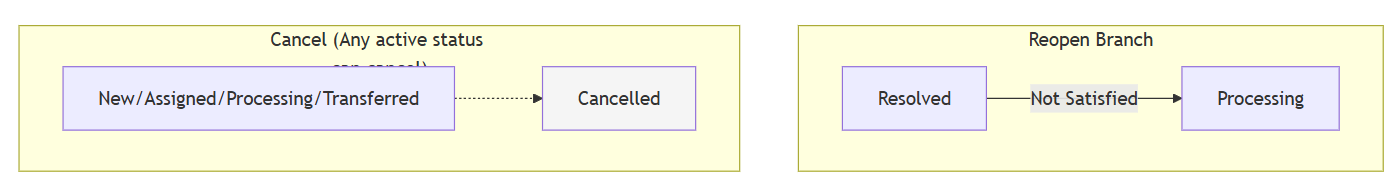

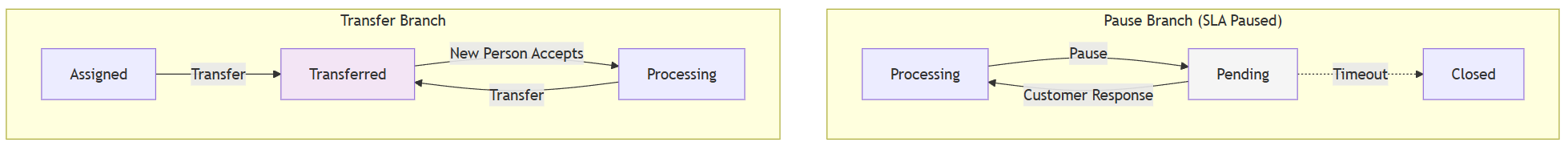

Branch Flows

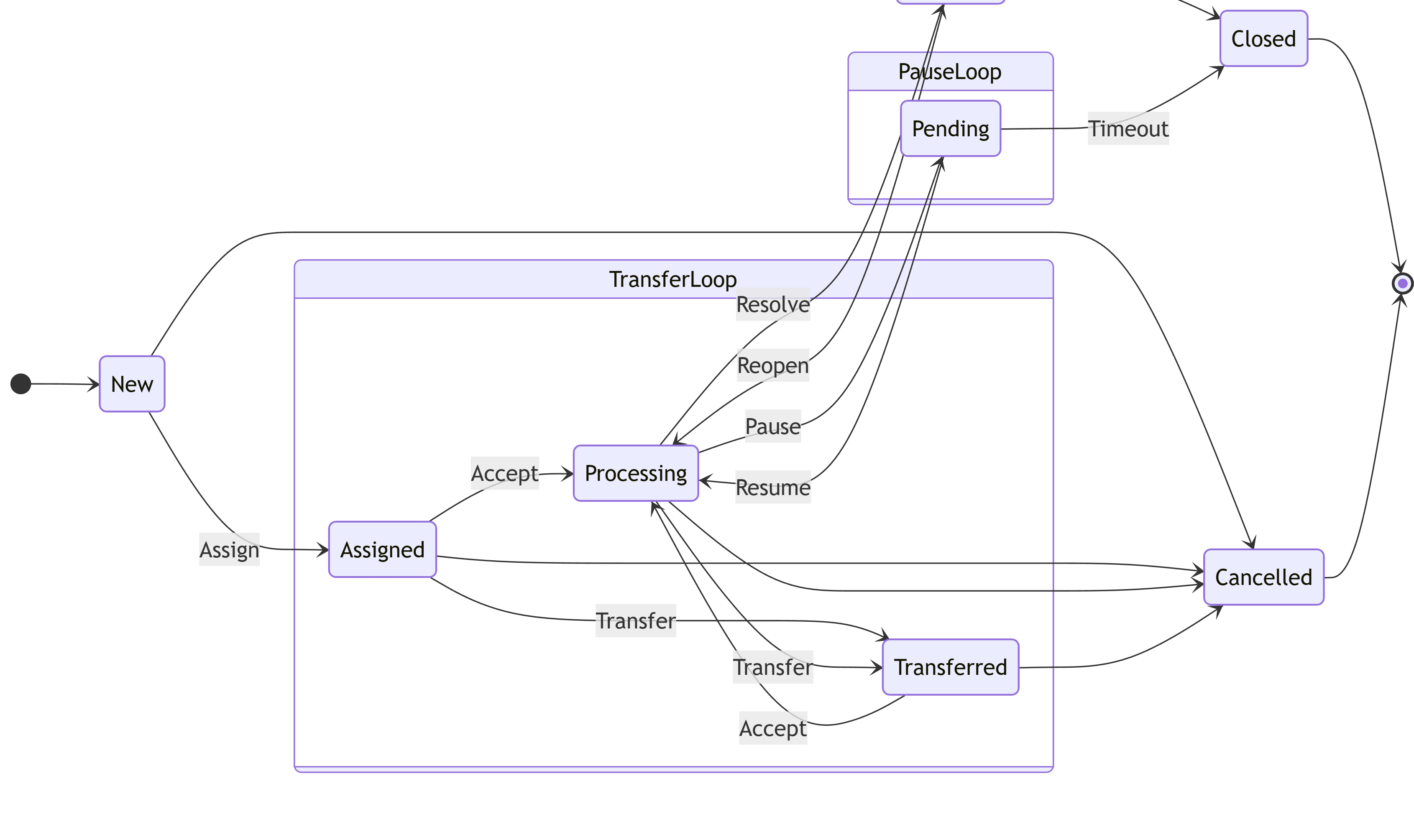

Complete State Machine
3.3 Key Status Transition Rules
| From | To | Trigger Condition | System Action |
|---|---|---|---|
| new | assigned | Assign handler | Record assigned_at |
| assigned | processing | Handler clicks "Accept" | None |
| processing | pending | Click "Pause" | Record sla_paused_at |
| pending | processing | Customer reply / Manual resume | Calculate pause duration, clear paused_at |
| processing | resolved | Click "Resolve" | Record resolved_at |
| resolved | closed | Customer confirm / 3-day timeout | Record closed_at |
| * | cancelled | Cancel ticket | None |
4. SLA Service Level Management
4.1 Priority and SLA Configuration
| Priority | Name | Response Time | Resolution Time | Alert Threshold | Typical Scenario |
|---|---|---|---|---|---|
| P0 | Critical | 15 min | 2 hours | 80% | System down, production line stopped |
| P1 | High | 1 hour | 8 hours | 80% | Important feature failure |
| P2 | Medium | 4 hours | 24 hours | 80% | General issues |
| P3 | Low | 8 hours | 72 hours | 80% | Inquiries, suggestions |
4.2 SLA Calculation Logic

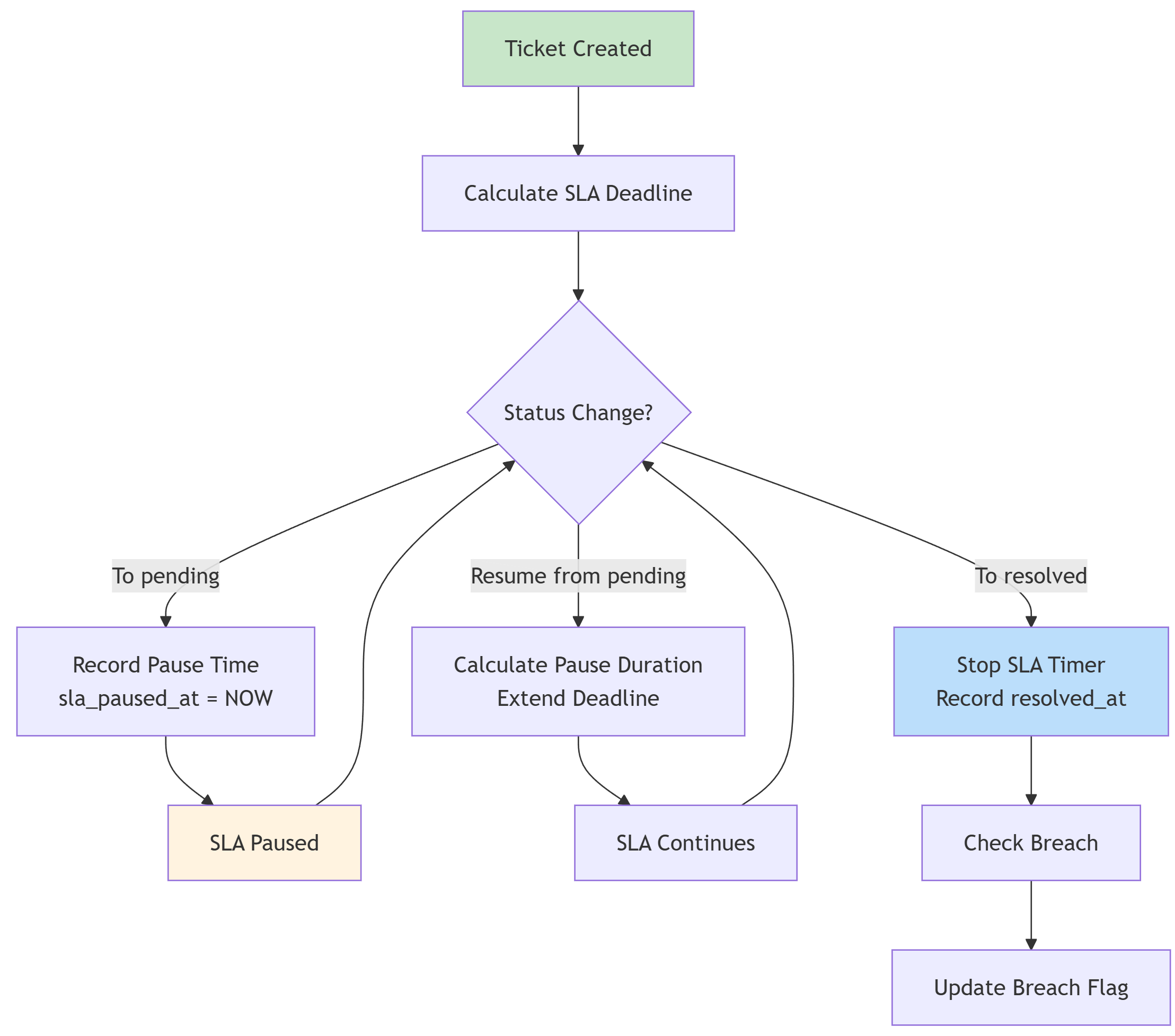

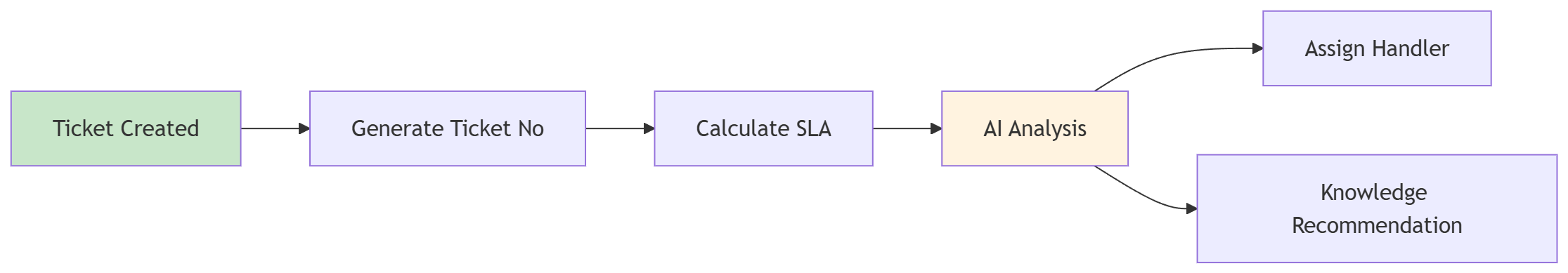

On Ticket Creation
On Pause (pending)
On Resume (from pending to processing)
SLA Breach Determination
4.3 SLA Alert Mechanism
| Alert Level | Condition | Notify | Method |
|---|---|---|---|
| Yellow Alert | Remaining time < 20% | Assignee | In-app notification |
| Red Alert | Already timeout | Assignee + Supervisor | In-app + Email |
| Escalation Alert | Timeout 1 hour | Department Manager | Email + SMS |
4.4 SLA Dashboard Metrics
| Metric | Formula | Health Threshold |
|---|---|---|
| Response Compliance Rate | Non-breached tickets / Total tickets | > 95% |
| Resolution Compliance Rate | Non-breached resolved / Total resolved | > 90% |
| Average Response Time | SUM(response time) / Ticket count | < 50% of SLA |
| Average Resolution Time | SUM(resolution time) / Ticket count | < 80% of SLA |
5. AI Capabilities and Employee System
5.1 AI Employee Team
The system configures 8 AI employees in two categories:
New Employees (Ticketing System Specific)
| ID | Name | Position | Core Capabilities |
|---|---|---|---|
| sam | Sam | Service Desk Supervisor | Ticket routing, priority assessment, escalation decisions, SLA risk identification |
| grace | Grace | Customer Success Expert | Professional reply generation, tone adjustment, complaint handling, satisfaction recovery |
| max | Max | Knowledge Assistant | Similar case search, knowledge recommendations, solution synthesis |
Reused Employees (General Capabilities)
| ID | Name | Position | Core Capabilities |
|---|---|---|---|
| dex | Dex | Data Organizer | Email-to-ticket, call-to-ticket, batch data cleaning |
| ellis | Ellis | Email Expert | Email sentiment analysis, thread summarization, reply drafting |
| lexi | Lexi | Translator | Ticket translation, reply translation, real-time conversation translation |
| cole | Cole | NocoBase Expert | System usage guidance, workflow configuration help |
| vera | Vera | Research Analyst | Technical solution research, product information verification |
5.2 AI Task List
Each AI employee is configured with 4 specific tasks:
Sam's Tasks
| Task ID | Name | Trigger Method | Description |
|---|---|---|---|
| SAM-01 | Ticket Analysis & Routing | Workflow auto | Auto-analyze on new ticket creation |
| SAM-02 | Priority Re-evaluation | Frontend interaction | Adjust priority based on new info |
| SAM-03 | Escalation Decision | Frontend/Workflow | Determine if escalation needed |
| SAM-04 | SLA Risk Assessment | Workflow auto | Identify timeout risks |
Grace's Tasks
| Task ID | Name | Trigger Method | Description |
|---|---|---|---|
| GRACE-01 | Professional Reply Generation | Frontend interaction | Generate reply based on context |
| GRACE-02 | Reply Tone Adjustment | Frontend interaction | Optimize existing reply tone |
| GRACE-03 | Complaint De-escalation | Frontend/Workflow | Resolve customer complaints |
| GRACE-04 | Satisfaction Recovery | Frontend/Workflow | Follow-up after negative experience |
Max's Tasks
| Task ID | Name | Trigger Method | Description |
|---|---|---|---|
| MAX-01 | Similar Case Search | Frontend/Workflow | Find similar historical tickets |
| MAX-02 | Knowledge Article Recommendation | Frontend/Workflow | Recommend relevant knowledge articles |
| MAX-03 | Solution Synthesis | Frontend interaction | Synthesize solutions from multiple sources |
| MAX-04 | Troubleshooting Guide | Frontend interaction | Create systematic troubleshooting process |
Lexi's Tasks
| Task ID | Name | Trigger Method | Description |
|---|---|---|---|
| LEXI-01 | Ticket Translation | Workflow auto | Translate ticket content |
| LEXI-02 | Reply Translation | Frontend interaction | Translate agent replies |
| LEXI-03 | Batch Translation | Workflow auto | Batch translation processing |
| LEXI-04 | Real-time Conversation Translation | Frontend interaction | Real-time dialogue translation |
5.3 AI Employees and Ticket Lifecycle
5.4 AI Response Examples
SAM-01 Ticket Analysis Response
GRACE-01 Reply Generation Response
5.5 AI EQ Firewall
Grace's reply quality review blocks the following issues:
| Issue Type | Original Example | AI Suggestion |
|---|---|---|
| Negative tone | "No, this is not under warranty" | "This fault is not currently covered by free warranty, we can offer a paid repair plan" |
| Blaming customer | "You broke it yourself" | "Upon verification, this fault is accidental damage" |
| Shifting responsibility | "Not our problem" | "Let me help you further investigate the cause" |
| Cold expression | "Don't know" | "Let me look up the relevant information for you" |
| Sensitive information | "Your password is abc123" | [Blocked] Contains sensitive information, not allowed to send |
6. Knowledge Base System
6.1 Knowledge Sources
6.2 Ticket-to-Knowledge Flow
Evaluation Dimensions:
- Generality: Is this a common problem?
- Completeness: Is the solution clear and complete?
- Reproducibility: Are the steps reusable?
6.3 Knowledge Recommendation Mechanism
When an agent opens ticket details, Max automatically recommends related knowledge:
6.4 Knowledge Base Health Metrics
| Metric | Formula | Health Threshold |
|---|---|---|
| Coverage Rate | Tickets with recommendations / Total tickets | > 60% |
| Effectiveness Rate | helpful_count / (helpful + not_helpful) | > 75% |
| Citation Rate | Cited articles / Total published articles | > 40% |
| Freshness | Articles updated in last 90 days ratio | > 50% |
7. Workflow Engine
7.1 Workflow Categories
| Code | Category | Description | Trigger Method |
|---|---|---|---|
| WF-T | Ticket Flow | Ticket lifecycle management | Form events |
| WF-S | SLA Flow | SLA calculation and alerts | Form events/Scheduled |
| WF-C | Comment Flow | Comment processing and translation | Form events |
| WF-R | Rating Flow | Rating invitations and statistics | Form events/Scheduled |
| WF-N | Notification Flow | Notification sending | Event-driven |
| WF-AI | AI Flow | AI analysis and generation | Form events |
7.2 Core Workflows
WF-T01: Ticket Creation Flow

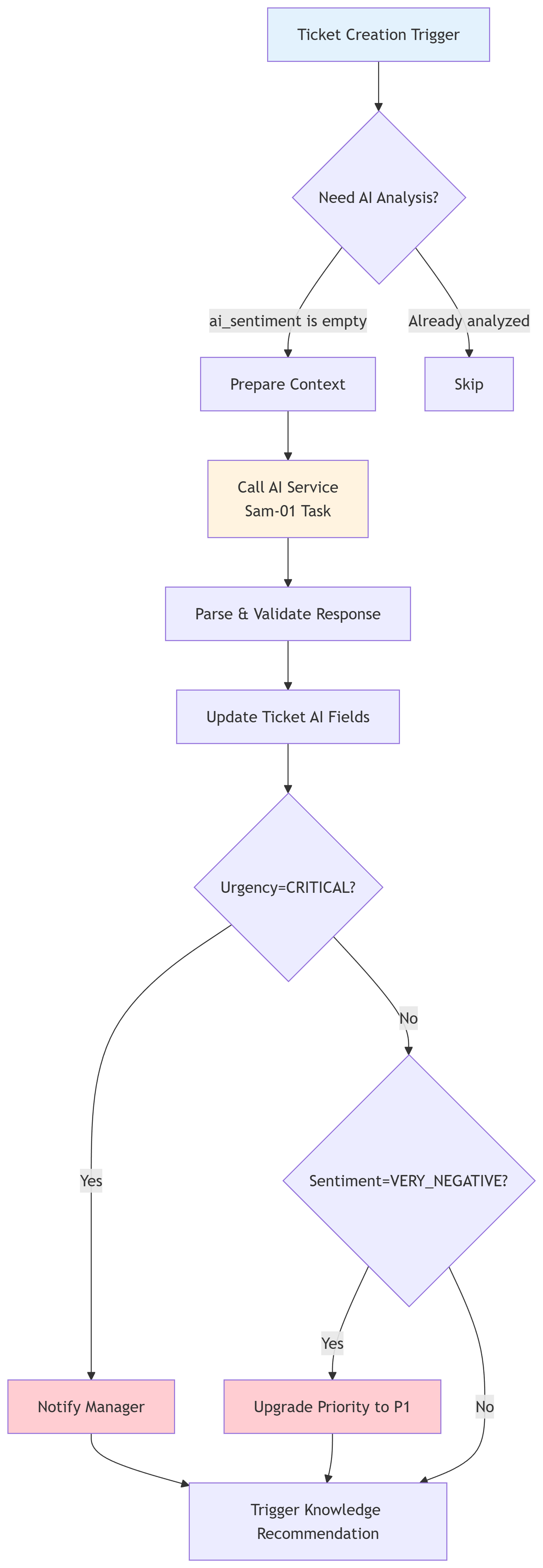

WF-AI01: Ticket AI Analysis
WF-AI04: Comment Translation & Review
WF-AI03: Knowledge Generation
7.3 Scheduled Tasks
| Task | Frequency | Description |
|---|---|---|
| SLA Alert Check | Every 5 minutes | Check tickets about to timeout |
| Ticket Auto-Close | Daily | Auto-close resolved status after 3 days |
| Rating Invitation | Daily | Send rating invitation 24 hours after close |
| Statistics Update | Hourly | Update customer ticket statistics |
8. Menu and Interface Design

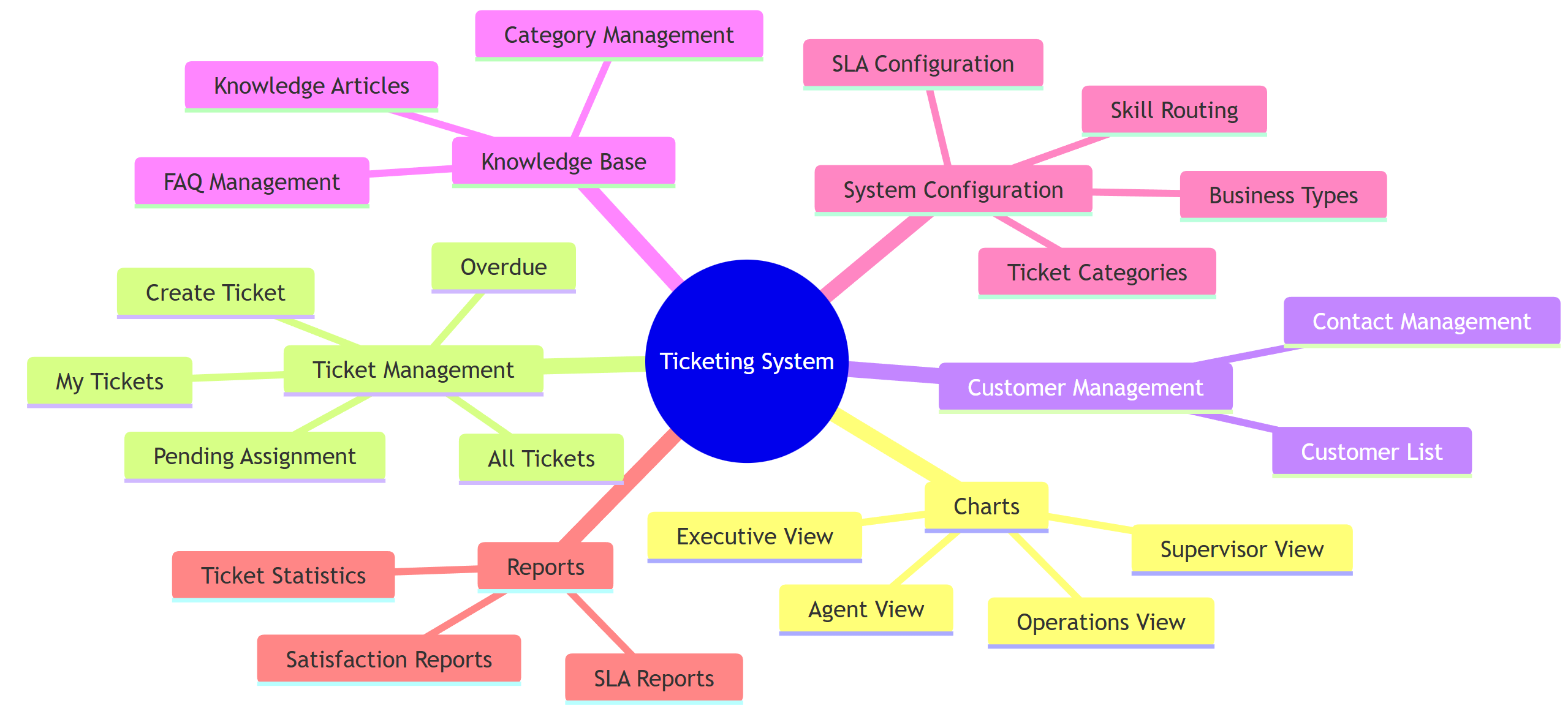

8.1 Backend Admin

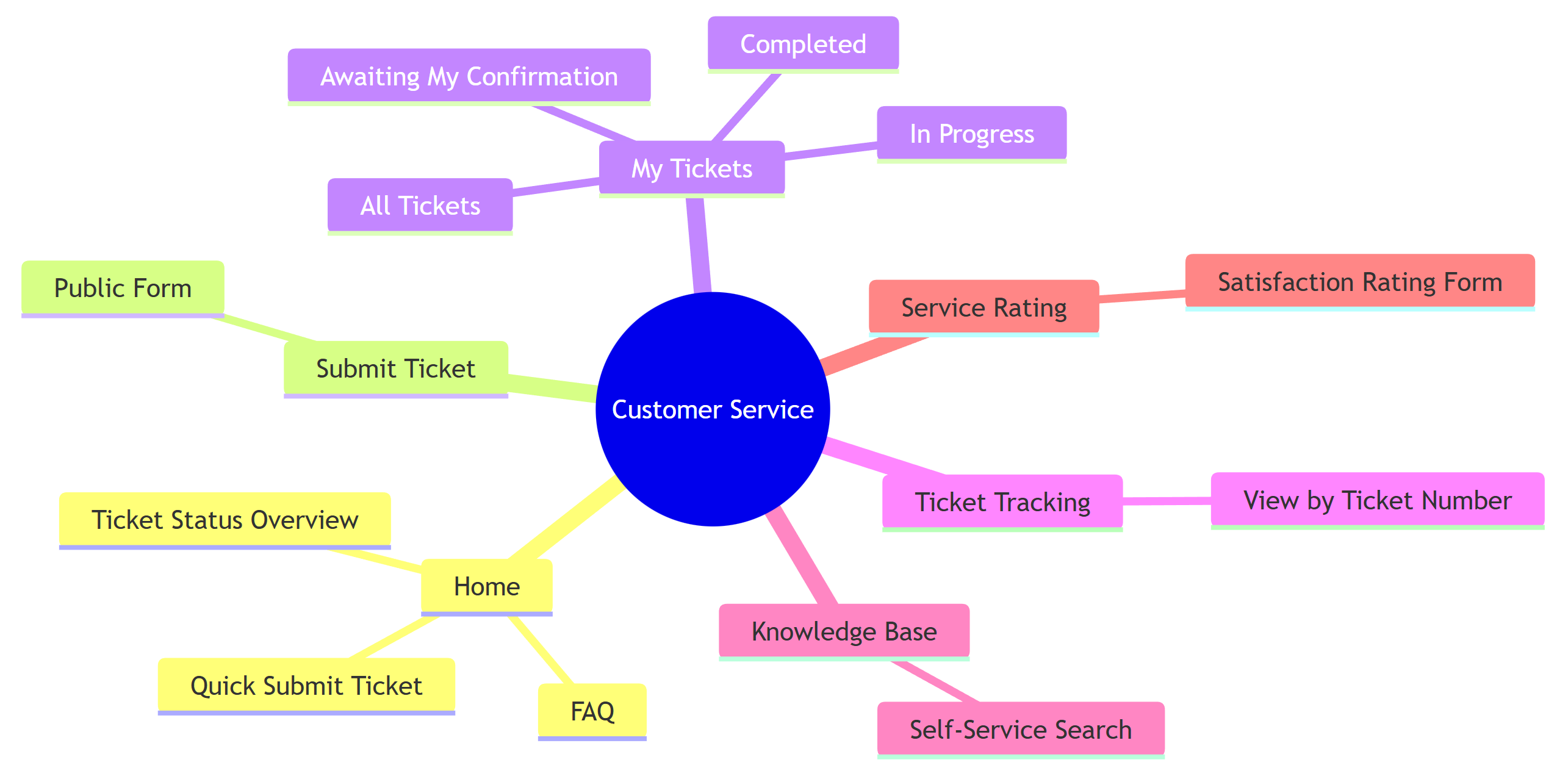

8.2 Customer Portal
8.3 Dashboard Design
Executive View
| Component | Type | Data Description |
|---|---|---|
| SLA Compliance Rate | Gauge | This month's response/resolution compliance |
| Satisfaction Trend | Line Chart | Last 30 days satisfaction changes |
| Ticket Volume Trend | Bar Chart | Last 30 days ticket volume |
| Business Type Distribution | Pie Chart | Proportion of each business type |
Supervisor View
| Component | Type | Data Description |
|---|---|---|
| Timeout Alerts | List | About to timeout/already timeout tickets |
| Team Workload | Bar Chart | Team member ticket counts |
| Backlog Distribution | Stacked Chart | Ticket counts by status |
| Processing Time | Heatmap | Average processing time distribution |
Agent View
| Component | Type | Data Description |
|---|---|---|
| My To-Do | Number Card | Pending ticket count |
| Priority Distribution | Pie Chart | P0/P1/P2/P3 distribution |
| Today's Statistics | Metric Card | Today's processed/resolved count |
| SLA Countdown | List | Top 5 most urgent tickets |
Appendix
A. Business Type Configuration
| Type Code | Name | Icon | Associated Extension Table |
|---|---|---|---|
| repair | Equipment Repair | wrench | nb_tts_biz_repair |
| it_support | IT Support | computer | nb_tts_biz_it_support |
| complaint | Customer Complaint | megaphone | nb_tts_biz_complaint |
| consultation | Consultation | question | None |
| other | Other | memo | None |
B. Category Codes
| Code | Name | Description |
|---|---|---|
| CONVEYOR | Conveyor System | Conveyor system issues |
| PACKAGING | Packaging Machine | Packaging machine issues |
| WELDING | Welding Equipment | Welding equipment issues |
| COMPRESSOR | Air Compressor | Air compressor issues |
| COLD_STORE | Cold Storage | Cold storage issues |
| CENTRAL_AC | Central AC | Central AC issues |
| FORKLIFT | Forklift | Forklift issues |
| COMPUTER | Computer | Computer hardware issues |
| PRINTER | Printer | Printer issues |
| PROJECTOR | Projector | Projector issues |
| INTERNET | Network | Network connectivity issues |
| Email system issues | ||
| ACCESS | Access | Account permission issues |
| PROD_INQ | Product Inquiry | Product inquiry |
| COMPLAINT | General Complaint | General complaint |
| DELAY | Shipping Delay | Shipping delay complaint |
| DAMAGE | Package Damage | Package damage complaint |
| QUANTITY | Quantity Shortage | Quantity shortage complaint |
| SVC_ATTITUDE | Service Attitude | Service attitude complaint |
| PROD_QUALITY | Product Quality | Product quality complaint |
| TRAINING | Training | Training request |
| RETURN | Return | Return request |
Document Version: 2.0 | Last Updated: 2025-12-29
