#Adding Action with Modal

#Scenario

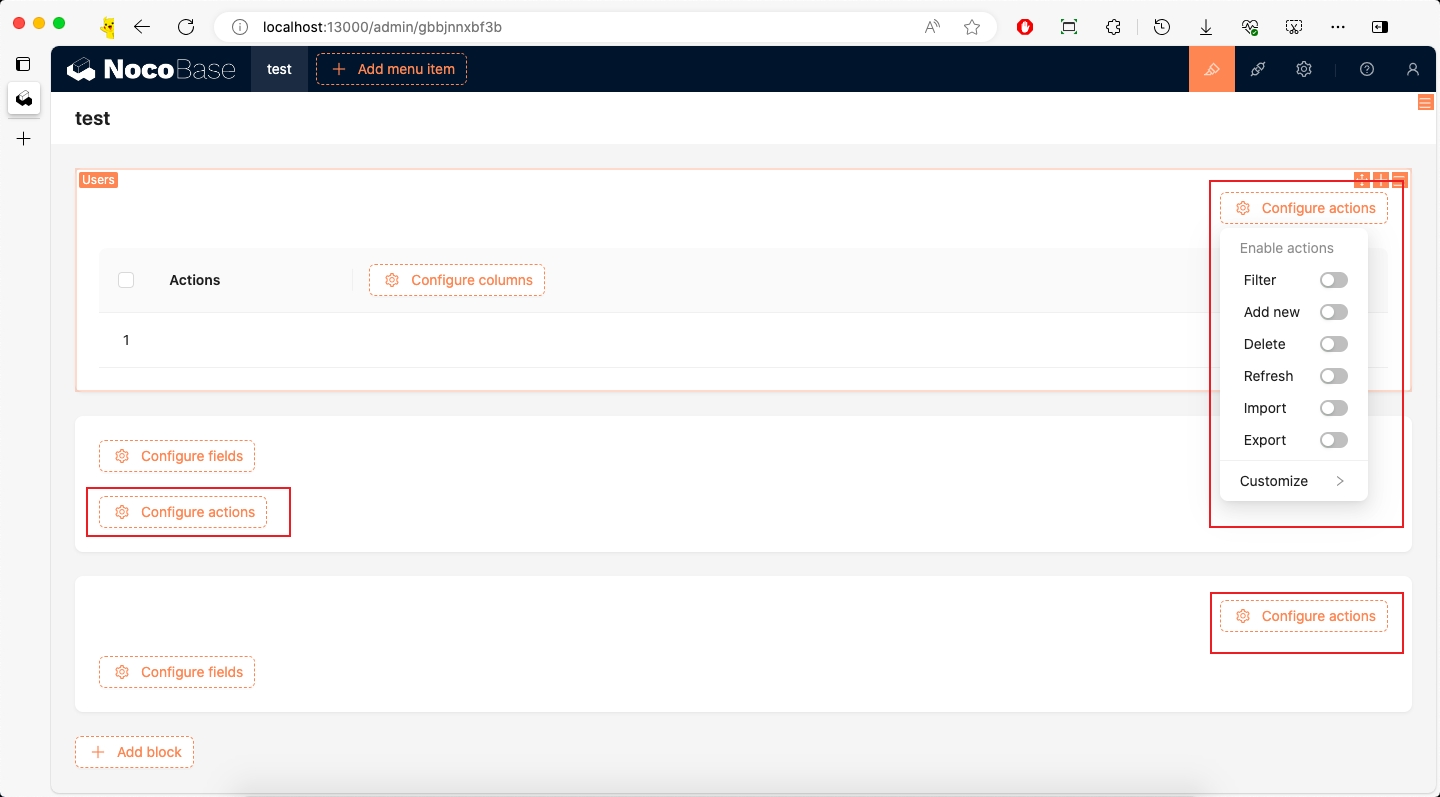

NocoBase has many Configure actions buttons for adding action buttons to the interface.

If the existing action buttons do not meet our requirements, we need to add sub-items to the existing Configure actions to create new action buttons.

#Example

This example will create a button that opens a modal when clicked. The content of the modal is an iframe embedding the block's documentation, and add this button to the Configure actions in Table, Details, and Form blocks.

The complete example code for this document can be found in plugin-samples.

#Initialize Plugin

Following the Write Your First Plugin documentation, if you don't have a project yet, you can create one first. If you already have one or have cloned the source code, you can skip this step.

yarn create nocobase-app my-nocobase-app -d postgres
cd my-nocobase-app
yarn install
yarn nocobase install

Then initialize a plugin and add it to the system:

yarn pm create @nocobase-sample/plugin-initializer-action-modal
yarn pm enable @nocobase-sample/plugin-initializer-action-modal

Then start the project:

yarn dev

After logging in, visit http://localhost:13000/admin/pm/list/local/ to see that the plugin has been installed and enabled.

#Implementation

Before implementing this example, we need to understand some basic knowledge:

• Action Component
• SchemaInitializer Tutorial: Used to add various blocks, fields, operations, etc. to the interface
• SchemaInitializer API: Used to add various blocks, fields, operations, etc. to the interface
• UI Schema: Used to define the structure and style of the interface
• Designable Designer: Used to modify Schema

.
├── client # Client plugin
│   ├── initializer # Initializer
│   ├── index.tsx # Client plugin entry
│   ├── locale.ts # Multi-language utility function
│   ├── constants.ts # Constants
│   ├── schema # Schema
│   └── settings # Schema Settings
├── locale # Multi-language files
│   ├── en-US.json # English
│   └── zh-CN.json # Chinese
├── index.ts # Server plugin entry
└── server # Server plugin

#1. Define Name

First, we need to define the action name, which will be used in various places.

We create packages/plugins/@nocobase-sample/plugin-initializer-action-modal/src/client/constants.ts:

export const ActionName = 'Open Document';
export const ActionNameLowercase = 'open-document';

#2. Define Schema

#2.1 Define Schema

NocoBase's dynamic pages are all rendered through Schema, so we need to define a Schema, which will be used later to add to the interface. Before implementing this section, we need to understand some basic knowledge:

• Action Component
• Action.Drawer Component
• UI Schema Protocol: Detailed introduction to the structure of Schema and the role of each property

We create packages/plugins/@nocobase-sample/plugin-initializer-action-modal/src/client/schema/index.ts file with the following content:

import { ISchema } from "@nocobase/client"
import { tStr } from "../locale";
import { ActionName } from "../constants";

export const createDocumentActionModalSchema = (blockComponent: string): ISchema => {
  return {
    type: 'void',
    'x-component': 'Action',
    title: tStr(ActionName),
    'x-component-props': {
      type: 'primary'
    },
    properties: {
      drawer: {
        type: 'void',
        'x-component': 'Action.Drawer',
        'x-component-props': {
          size: 'large'
        },
        properties: {
          iframe: {
            type: 'void',
            'x-component': 'iframe',
            'x-component-props': {
              src: `https://client.docs.nocobase.com/components/${blockComponent}`,
              style: {
                border: 'none',
                width: '100%',
                height: '100%'
              }
            },
          }
        }
      },
    },
  }
}

The createDocumentActionModalSchema component accepts a blockComponent parameter and returns a Schema. This Schema is used to add a button to the interface. When clicked, it opens a modal, and the content of the modal is an iframe whose src is the block's documentation.

createDocumentActionModalSchema:

• type: Type, here it is void, indicating a pure UI component
• x-component: 'Action': Action component used to generate a button
• title: 'Open Document': Button title
• properties: Child nodes
  • 'x-component': 'Action.Drawer': Action.Drawer component

For more information about Schema, please refer to the UI Schema documentation.

#2.2 Verify Schema

There are 2 ways to verify Schema:

• Temporary page verification: We can temporarily create a page and render the Schema to check if it meets the requirements
• Documentation example verification: You can start the documentation yarn doc plugins/@nocobase-sample/plugin-initializer-action-modal, and verify if it meets the requirements by writing documentation examples (TODO)

We use temporary page verification as an example. We create a new page and add one or more examples according to property parameters to check if they meet the requirements.

import React from 'react';
import { Plugin, SchemaComponent } from '@nocobase/client';
import { createDocumentActionModalSchema } from './schema';

export class PluginInitializerActionModalClient extends Plugin {
  async load() {
    this.app.router.add('admin.open-document-schema', {
      path: '/admin/open-document-schema',
      Component: () => {
        return <>
          <div style={{ marginTop: 20, marginBottom: 20 }}>
            <SchemaComponent schema={{ properties: { test1: createDocumentActionModalSchema('table-v2') } }} />
          </div>
          <div style={{ marginTop: 20, marginBottom: 20 }}>
            <SchemaComponent schema={{ properties: { test2: createDocumentActionModalSchema('details') } }} />
          </div>
        </>
      }
    })
  }
}

export default PluginInitializerActionModalClient;

Then we visit http://localhost:13000//admin/open-document-schema to see the temporary page we added.

For detailed explanation of SchemaComponent, please refer to the SchemaComponent documentation.

After verification, the test page needs to be deleted.

#3. Define Schema Initializer Item

We create packages/plugins/@nocobase-sample/plugin-initializer-action-modal/src/client/initializer/index.ts file:

import { SchemaInitializerItemType, useSchemaInitializer } from "@nocobase/client"

import { useT } from "../locale";
import { createDocumentActionModalSchema } from '../schema';
import { ActionName, ActionNameLowercase } from "../constants";

export const createDocumentActionModalInitializerItem = (blockComponent: string): SchemaInitializerItemType => ({
  type: 'item',
  title: ActionName,
  name: ActionNameLowercase,
  useComponentProps() {
    const { insert } = useSchemaInitializer();
    const t = useT();
    return {
      title: t(ActionName),
      onClick: () => {
        insert(createDocumentActionModalSchema(blockComponent));
      },
    };
  },
})

Because we need to generate different DocumentActionModal based on different blockComponent, we defined a createDocumentActionModalInitializerItem function to generate the corresponding Schema Initializer Item.

• type: Type, here it is item, indicating a text with a click event that can insert a new Schema when clicked
• name: Unique identifier used to distinguish different Schema Items and CRUD operations
• useComponentProps: Returns an object containing title and onClick properties, title is the displayed text, onClick is the callback function after clicking
• useSchemaInitializer: Used to get the SchemaInitializerContext context, which contains some operation methods

For more information about Schema Item definitions, please refer to the Schema Initializer Item documentation.

#4. Implement Schema Settings

#4.1 Define Schema Settings

Currently, after adding through createDocumentActionInitializerItem(), it cannot be deleted. We can use Schema Settings to set it.

We create packages/plugins/@nocobase-sample/plugin-initializer-action-modal/src/client/settings/index.ts file:

import { SchemaSettings } from "@nocobase/client";
import { ActionNameLowercase } from "../constants";

export const documentActionModalSettings = new SchemaSettings({
  name: `actionSettings:${ActionNameLowercase}`,
  items: [
    {
      name: 'remove',
      type: 'remove',
    }
  ]
});

#4.2 Register Schema Settings

import { Plugin } from '@nocobase/client';
import { documentActionModalSettings } from './settings';

export class PluginInitializerActionModalClient extends Plugin {
  async load() {
    this.app.schemaSettingsManager.add(documentActionModalSettings);
  }
}

export default PluginInitializerActionModalClient;

#4.3 Use Schema Settings

We modify the createDocumentActionModalSchema function in packages/plugins/@nocobase-sample/plugin-initializer-action-modal/src/client/schema/index.ts file to add documentActionModalSettings to x-settings.

export const createDocumentActionModalSchema = (blockComponent: string): ISchema => {
  return {
    type: 'void',
    'x-component': 'Action',
+   'x-settings': documentActionModalSettings.name,
    // ..
  }
}

#5. Add to Page Configure actions

There are many Configure actions buttons in the system, but their names are different. We need to add it to the Configure actions in Table, Details, and Form blocks according to our needs.

First, let's find the corresponding name:

TODO

Then we modify packages/plugins/@nocobase-sample/plugin-initializer-action-modal/src/client/index.tsx file:

import { Plugin } from '@nocobase/client';
import { documentActionModalSettings } from './documentActionModalSettings';
import { createDocumentActionModalInitializerItem } from './documentActionModalInitializerItem';

export class PluginInitializerActionModalClient extends Plugin {
  async load() {
    this.app.schemaSettingsManager.add(documentActionModalSettings);
+   this.app.schemaInitializerManager.addItem('table:configureActions', 'open-document', createDocumentActionModalInitializerItem('table-v2'));
+   this.app.schemaInitializerManager.addItem('details:configureActions', 'open-document', createDocumentActionModalInitializerItem('details'));
+   this.app.schemaInitializerManager.addItem('createForm:configureActions', 'open-document', createDocumentActionModalInitializerItem('form-v2'));
  }
}

export default PluginInitializerActionModalClient;

#6. Multi-language

#6.1 English

We edit packages/plugins/@nocobase-sample/plugin-initializer-action-simple/src/locale/en-US.json with the following content:

{
  "Document": "Document"
}

#6.2 Chinese

We edit packages/plugins/@nocobase-sample/plugin-initializer-action-simple/src/locale/zh-CN.json with the following content:

{
  "Document": "文档"
}

If you need more multi-language support, you can continue to add them.

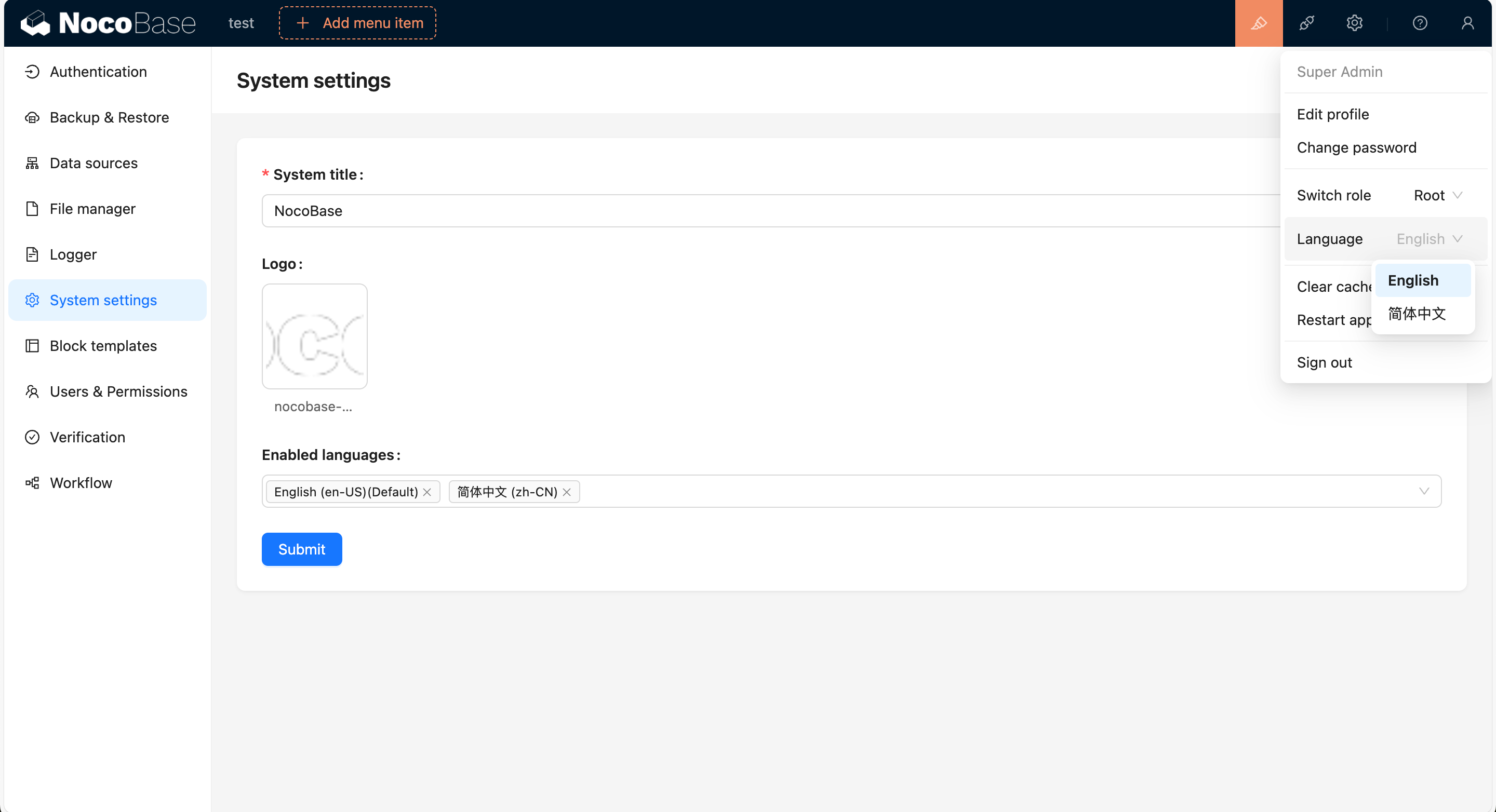

We can add multiple languages through http://localhost:13000/admin/settings/system-settings, and switch languages in the upper right corner.

#Packaging and Uploading to Production Environment

According to the Build and Package Plugin documentation, we can package the plugin and upload it to the production environment.

If you cloned the source code, you need to execute a full build first to build the plugin's dependencies as well.

yarn build

If you used create-nocobase-app to create the project, you can directly execute:

yarn build @nocobase-sample/plugin-initializer-action-modal --tar

This way you can see the storage/tar/@nocobase-sample/plugin-initializer-action-modal.tar.gz file, and then install it by uploading.
