#Block Embedded Initializer - Configure Actions

#Scenario

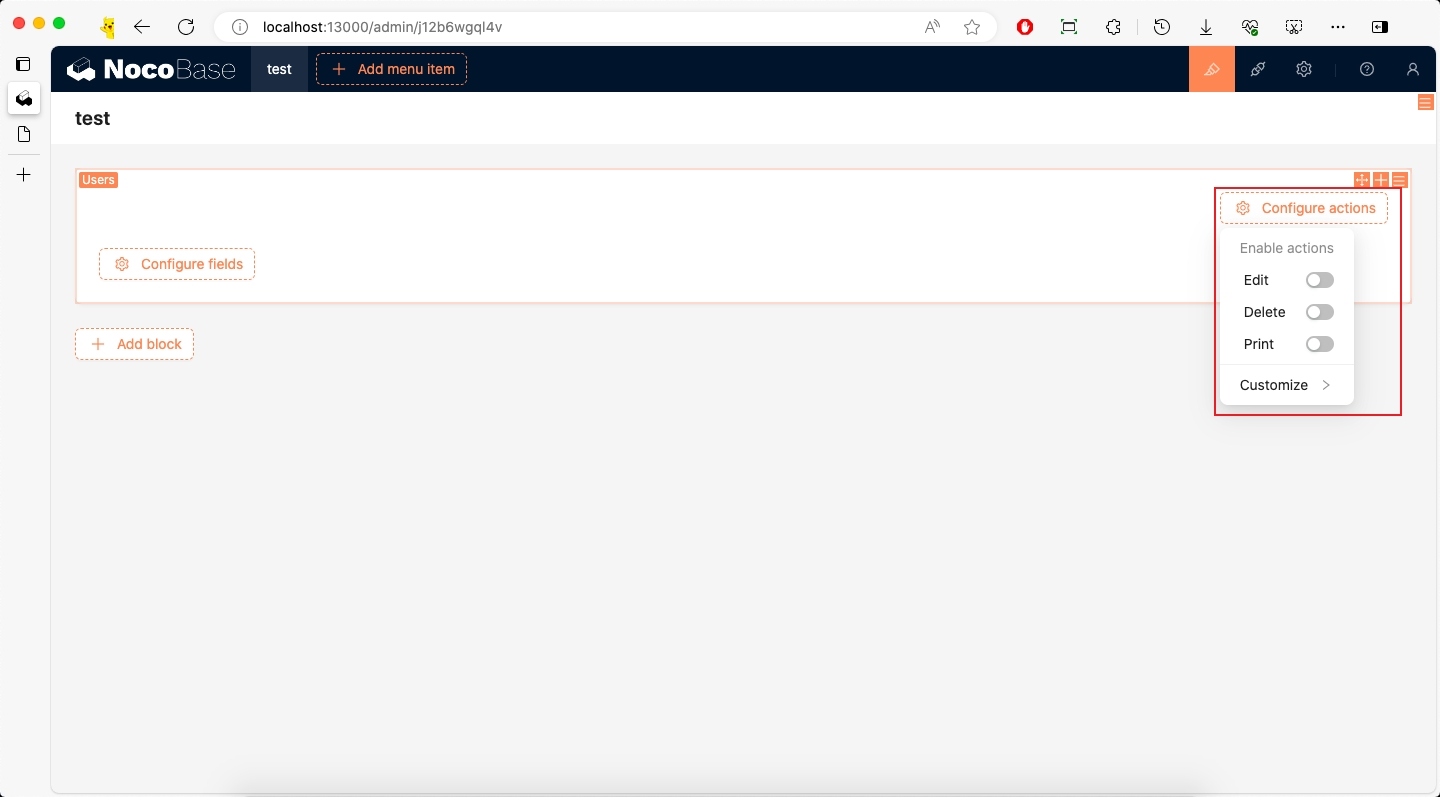

If a newly created block is a complex data block, it may contain multiple dynamically added parts. The Configure actions initializer is mainly responsible for dynamically adding some buttons to implement various operations. For example, in the Details block, we can add Edit, Print, and other buttons through Configure actions.

#Example

This example will continue based on Adding Data Block Data Block to implement an effect similar to the Details block, configuring buttons through Configure actions.

The complete example code for this document can be found in plugin-samples.

#Initialize Plugin

Following the Write Your First Plugin documentation, if you don't have a project yet, you can create one first. If you already have one or have cloned the source code, you can skip this step.

yarn create nocobase-app my-nocobase-app -d postgres
cd my-nocobase-app
yarn install
yarn nocobase install

Then initialize a plugin and add it to the system:

yarn pm create @nocobase-sample/plugin-initializer-configure-actions
yarn pm enable @nocobase-sample/plugin-initializer-configure-actions

Then start the project:

yarn dev

After logging in, visit http://localhost:13000/admin/pm/list/local/ to see that the plugin has been installed and enabled.

#Implementation

Before implementing this example, we need to understand some basic knowledge:

• SchemaInitializer Tutorial: Used to add various blocks, fields, operations, etc. to the interface
• SchemaInitializer API: Used to add various blocks, fields, operations, etc. to the interface
• UI Schema: Used to define the structure and style of the interface
• Designable Designer: Used to modify Schema

#1. Create Block

As mentioned earlier, this example will continue based on Adding Data Block Data Block, so we can copy the packages/plugins/@nocobase-sample/plugin-initializer-block-data/src/client directory to overwrite packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client.

Then modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/index.tsx:

import { Plugin } from '@nocobase/client';
- import { Info } from './component';
+ import { InfoV2 } from './component';

- export class PluginInitializerBlockDataClient extends Plugin {
+ export class PluginInitializerConfigureActionsClient extends Plugin {
  async load() {
-   this.app.addComponents({ Info })
+   this.app.addComponents({ InfoV2 })
    // ...
  }
}

- export default PluginInitializerBlockDataClient;
+ export default PluginInitializerConfigureActionsClient;

Then modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/constants.ts:

export const BlockName = 'InfoV2';
export const BlockNameLowercase = 'info-v2';

#2. Implement initializer

#2.1 Define initializer

We create packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/configureActionsInitializer.ts file:

import { SchemaInitializer } from "@nocobase/client";
import { BlockNameLowercase } from "../../constants";

export const configureActionsInitializer = new SchemaInitializer({
  name: `${BlockNameLowercase}:configureActions`,
  icon: 'SettingOutlined',
  title: 'Configure actions',
  style: {
    marginLeft: 8,
  },
  items: [

  ]
});

We defined a new SchemaInitializer through the above code, and the sub-items are temporarily empty.

• SchemaInitializer: Used to create a Schema Initializer instance
• icon: Icon, more icons can be found at Ant Design Icons
• title: Button title
• items: Sub-items under the button

Then export it in packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/index.ts:

export * from './configureActionsInitializer';

And modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/index.tsx to export configureActions:

import React from 'react';
import { SchemaInitializerItemType, useSchemaInitializer } from '@nocobase/client'
import { CodeOutlined } from '@ant-design/icons';

+ export * from './configureActions'
// ...

#2.2 Register initializer

Then modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/index.tsx file to import and register this initializer:

// ...
import { infoInitializerItem, configureActionsInitializer } from './initializer';

export class PluginInitializerConfigureActionsClient extends Plugin {
  async load() {
    this.app.schemaInitializerManager.add(configureActionsInitializer)

    // ...
  }
}

#2.3 Use initializer

We modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/schema/index.ts file to add a new actions child node:

// ...
+ import { configureActionsInitializer } from "../initializer";

function getInfoBlockSchema({ dataSource, collection }) {
  return {
    // ...
    properties: {
      info: {
        'x-component': BlockName,
        'x-use-component-props': 'useInfoProps',
+       properties: {
+         actions: {
+           type: 'void',
+           'x-component': 'ActionBar',
+           'x-component-props': {
+             layout: 'two-column',
+             style: { marginBottom: 20 }
+           },
+           'x-initializer': configureActionsInitializer.name,
+         }
+       }
      }
    }
  }
}

configure actions is generally used in combination with the ActionBar component.

We added an actions field to the child nodes of Info:

• type: 'void': Type is void, indicating this is a container
• x-component: 'ActionBar': Use ActionBar component to display buttons
• x-initializer: configureActionsInitializer.name: Use the Schema Initializer we just created
• x-component-props.layout: 'two-column': Left and right layout, specific examples can be found at ActionBar two-column

#2.4 Block renders child nodes

We modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/component/Info.tsx file to modify the Info component:

import React, { FC } from 'react';
import { withDynamicSchemaProps } from '@nocobase/client'

export interface InfoV2Props {
  collectionName: string;
  data?: any[];
  loading?: boolean;
+ children?: React.ReactNode;
}

export const InfoV2: FC<InfoV2Props> = withDynamicSchemaProps(({ children, collectionName, data }) => {
  return <div>
+   {children}
-   <div>collection: {collectionName}</div>
-   <div>data list: <pre>{JSON.stringify(data, null, 2)}</pre></div>
+   <div>data length: {data?.length}</div>
  </div>
}, { displayName: BlockName })

• children: The content of properties will be passed to the children of the InfoV2 component, so we just need to render children directly.

#3. Implement initializer items

#3.1 Reuse: Custom request Action

We continue to modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/configureActionsInitializer.ts file:

export const configureActions = new SchemaInitializer({
  name: 'info:configureActions',
  title: 'Configure actions',
  icon: 'SettingOutlined',
  items: [
+   {
+     name: 'customRequest',
+     title: '{{t("Custom request")}}',
+     Component: 'CustomRequestInitializer',
+   },
  ]
});

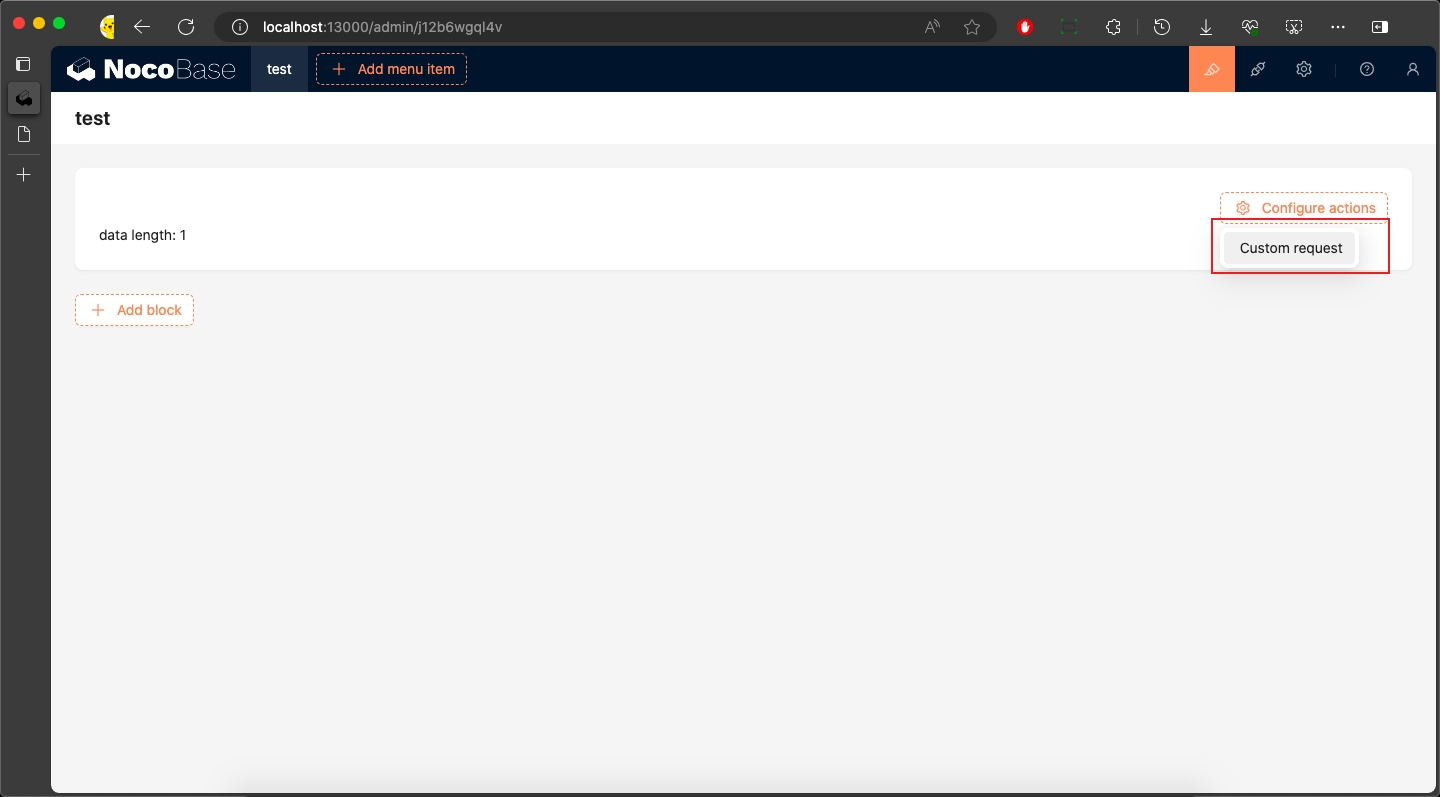

Because we directly reused the CustomRequestInitializer component for Custom request, more reusable Initializer Items can be found at TODO.

#3.2 Custom: Custom Refresh Action

In addition to reusing existing Initializer Items, we can also customize Actions. For detailed steps on customizing Actions, refer to Adding Simple Action and Adding Action with Modal.

Here we implement a Custom Refresh Action.

#3.2.1 Define Name

We create packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/items/customRefresh/constants.ts:

export const ActionName = 'Custom Request';
export const ActionNameLowercase = 'customRequest';

#3.2.2 Define Schema

#3.2.2.1 Define Schema

We create packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/items/customRefresh/schema.ts file:

import { ActionProps, useDataBlockRequest, ISchema } from "@nocobase/client";
import { useT } from "../../../../locale";

export const useCustomRefreshActionProps = (): ActionProps => {
  const { runAsync } = useDataBlockRequest();
  const t = useT();
  return {
    type: 'primary',
    title: t('Custom Refresh'),
    async onClick() {
      await runAsync();
    },
  }
}

export const customRefreshActionSchema: ISchema = {
  type: 'void',
  'x-component': 'Action',
  'x-toolbar': 'ActionSchemaToolbar',
  'x-use-component-props': 'useCustomRefreshActionProps'
}

We defined customRefreshActionSchema and dynamic property useCustomRefreshActionProps.

customRefreshActionSchema:

• type: 'void': Type is void, indicating plain UI with no data
• x-component: 'Action': Use Action component to display button
• title: 'Custom Refresh': Button title
• x-use-component-props: 'useCustomRefreshActionProps': Use the properties returned by the useCustomRefreshActionProps Hooks. Since Schema will be saved to the server, it needs to be used in string format here.
• 'x-toolbar': 'ActionSchemaToolbar': Generally used with the Action component. Unlike the default ToolBar, it hides the Initializer in the upper right corner of Action, keeping only Drag and Settings.

useCustomRefreshActionProps: This is a React Hooks that needs to return the properties of the Action component.

• useDataBlockRequest(): Request object of the data block, provided internally by DataBlockProvider, used to automatically get the data block's data
  • runAsync: An asynchronous request method used to refresh the data block's data
• type: 'primary': Button type is primary
• onClick: Click event.

Then export it in packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/items/customRefresh/index.ts:

export * from './schema';

And modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/index.ts to export customRefresh:

export * from './configureActionsInitializer';
+ export * from './items/customRefresh';

#3.2.2.2 Register context

We also need to register useCustomRefreshActionProps to the context. We modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/index.tsx file:

// ...
- import { infoInitializerItem } from './initializer';
+ import { infoInitializerItem, useCustomRefreshActionProps } from './initializer';

export class PluginInitializerConfigureActionsClient extends Plugin {
  async load() {
    // ...
-   this.app.addScopes({ useInfoProps });
+   this.app.addScopes({ useInfoProps, useCustomRefreshActionProps });
  }
}

For the use of SchemaComponentOptions, refer to the SchemaComponentOptions documentation and Global Registration of Component and Scope.

#3.3.2 Implement settings

#3.3.2.1 Define settings

We create packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/items/customRefresh/settings.ts

import { SchemaSettings } from "@nocobase/client";
import { ActionNameLowercase } from "./constants";

export const customRefreshActionSettings = new SchemaSettings({
  name: `actionSettings:${ActionNameLowercase}`,
  items: [
    {
      name: 'remove',
      type: 'remove',
    }
  ]
})

customRefreshActionSettings: Here we only simply defined a remove operation. For more information about Schema Settings definitions, refer to the Schema Settings documentation.

Modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/items/customRefresh/index.ts to export it:

export * from './settings';

#3.3.2.2 Register settings

Then register customRefreshActionSettings to the system. We modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/index.tsx file:

- import { infoInitializerItem, useCustomRefreshActionProps } from './initializer';
+ import { infoInitializerItem, useCustomRefreshActionProps, customRefreshActionSettings } from './initializer';

export class PluginInitializerConfigureActionsClient extends Plugin {
  async load() {
+   this.app.schemaSettingsManager.add(customRefreshActionSettings);
  }
}

#3.3.2.2 Use settings

We modify the customRefreshActionSchema method in packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/items/customRefresh/schema.ts file to set x-settings to customRefreshActionSettings.name.

+ import { customRefreshActionSettings } from "./settings";

export const customRefreshActionSchema: ISchema = {
  type: 'void',
  'x-component': 'Action',
+ "x-settings": customRefreshActionSettings.name,
  title: 'Custom Refresh',
  'x-use-component-props': 'useCustomRefreshActionProps'
}

#3.3.3 Define SchemaInitializer item

#3.3.3.1 Define SchemaInitializer item

We continue to modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/items/customRefresh/initializer.ts file:

import { SchemaInitializerItemType, useSchemaInitializer } from "@nocobase/client";
import { customRefreshActionSchema } from "./schema";
import { ActionName } from "./constants";
import { useT } from "../../../../locale";

export const customRefreshActionInitializerItem: SchemaInitializerItemType = {
  type: 'item',
  name: ActionName,
  useComponentProps() {
    const { insert } = useSchemaInitializer();
    const t = useT();
    return {
      title: t(ActionName),
      onClick() {
        insert(customRefreshActionSchema)
      },
    };
  },
};

• type: 'item': Type is item, indicating text that triggers onClick event when clicked
• name: 'custom refresh': Unique identifier used to distinguish different Schema Items and CRUD operations
• title: 'Custom Refresh': Button title

For more information about Schema Item definitions, refer to the Schema Initializer Item documentation.

Then modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/index.ts to export it:

export * from './initializer';

#3.3.3.2 Use SchemaInitializer item

We modify packages/plugins/@nocobase-sample/plugin-initializer-configure-actions/src/client/initializer/configureActions/configureActionsInitializer.ts file to add customRefreshActionInitializerItem to items:

import { SchemaInitializer } from "@nocobase/client";
+ import { customRefreshActionInitializerItem } from "./items/customRefresh";

export const configureActionsInitializer = new SchemaInitializer({
  name: 'info:configureActions',
  title: 'Configure actions',
  icon: 'SettingOutlined',
  style: {
    marginLeft: 8,
  },
  items: [
    {
      name: 'customRequest',
      title: '{{t("Custom request")}}',
      Component: 'CustomRequestInitializer',
      'x-align': 'right',
    },
+   customRefreshActionInitializerItem
  ]
});

You can implement more Actions as needed.

#Packaging and Uploading to Production Environment

According to the Build and Package Plugin documentation, we can package the plugin and upload it to the production environment.

If you cloned the source code, you need to execute a full build first to build the plugin's dependencies as well.

yarn build

If you used create-nocobase-app to create the project, you can directly execute:

yarn build @nocobase-sample/plugin-initializer-configure-actions --tar

This way you can see the storage/tar/@nocobase-sample/plugin-initializer-configure-actions.tar.gz file, and then install it by uploading.
