#REST API Data Source

#Introduction

This plugin allows you to integrate data from REST API sources seamlessly.

#Installation

As a commercial plugin, it requires uploading and activation through the plugin manager.

#Adding a REST API Source

After activating the plugin, you can add a REST API source by selecting it from the Add new dropdown menu in the data source management section.

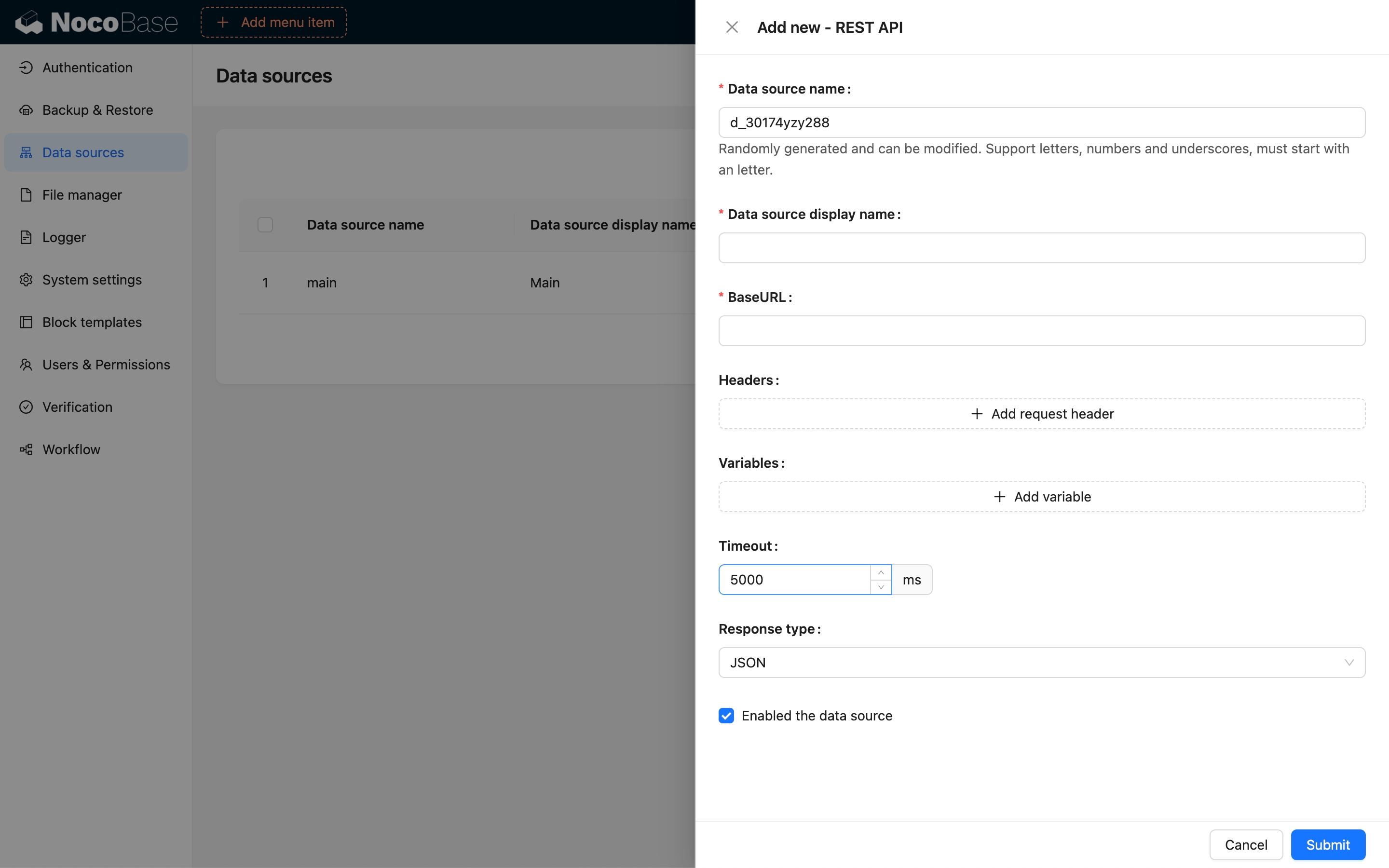

Configure the REST API source.

#Adding a Collection

In NocoBase, a RESTful resource is mapped to a Collection, such as a Users resource.

GET /users
POST /users
GET /users/1
PUT /users/1
DELETE /users/1

These API endpoints are mapped in NocoBase as follows:

GET /users:list
POST /users:create
POST /users:get?filterByTk=1
POST /users:update?filterByTk=1
POST /users:destroy?filterByTk=1

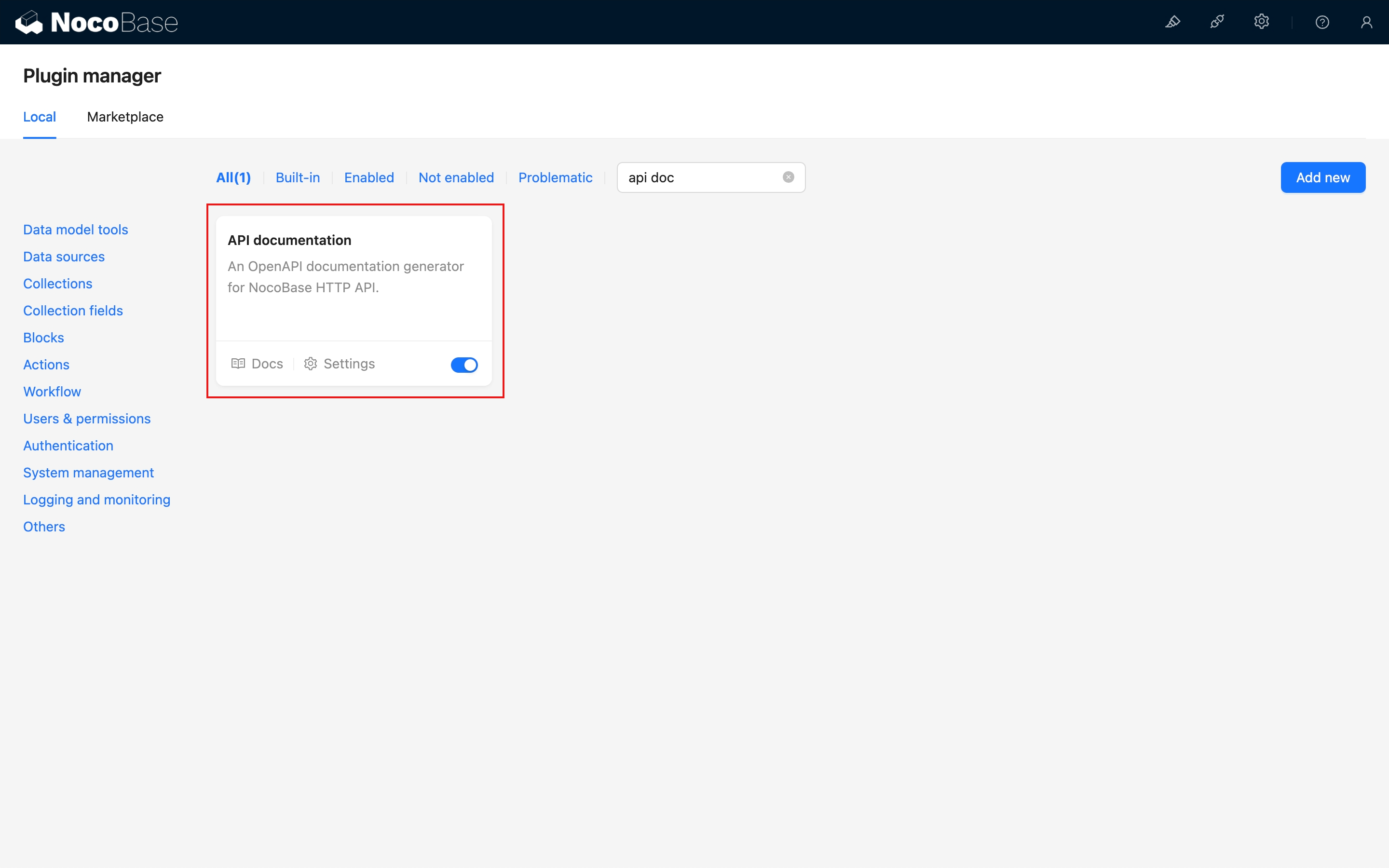

For a comprehensive guide on NocoBase API design specifications, refer to the API documentation.

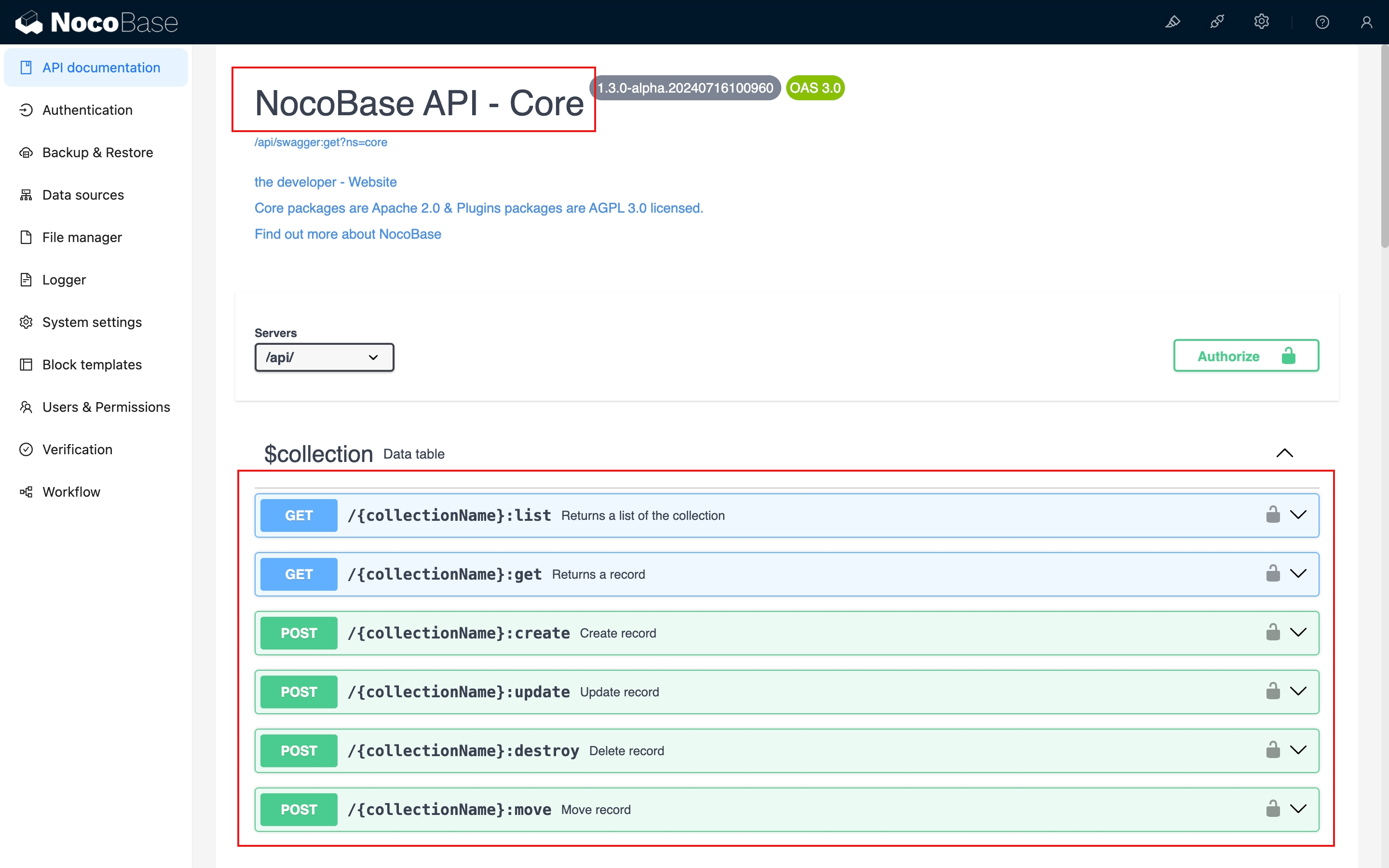

Check the "NocoBase API - Core" chapter for detailed information.

The Collection configuration for a REST API data source includes the following:

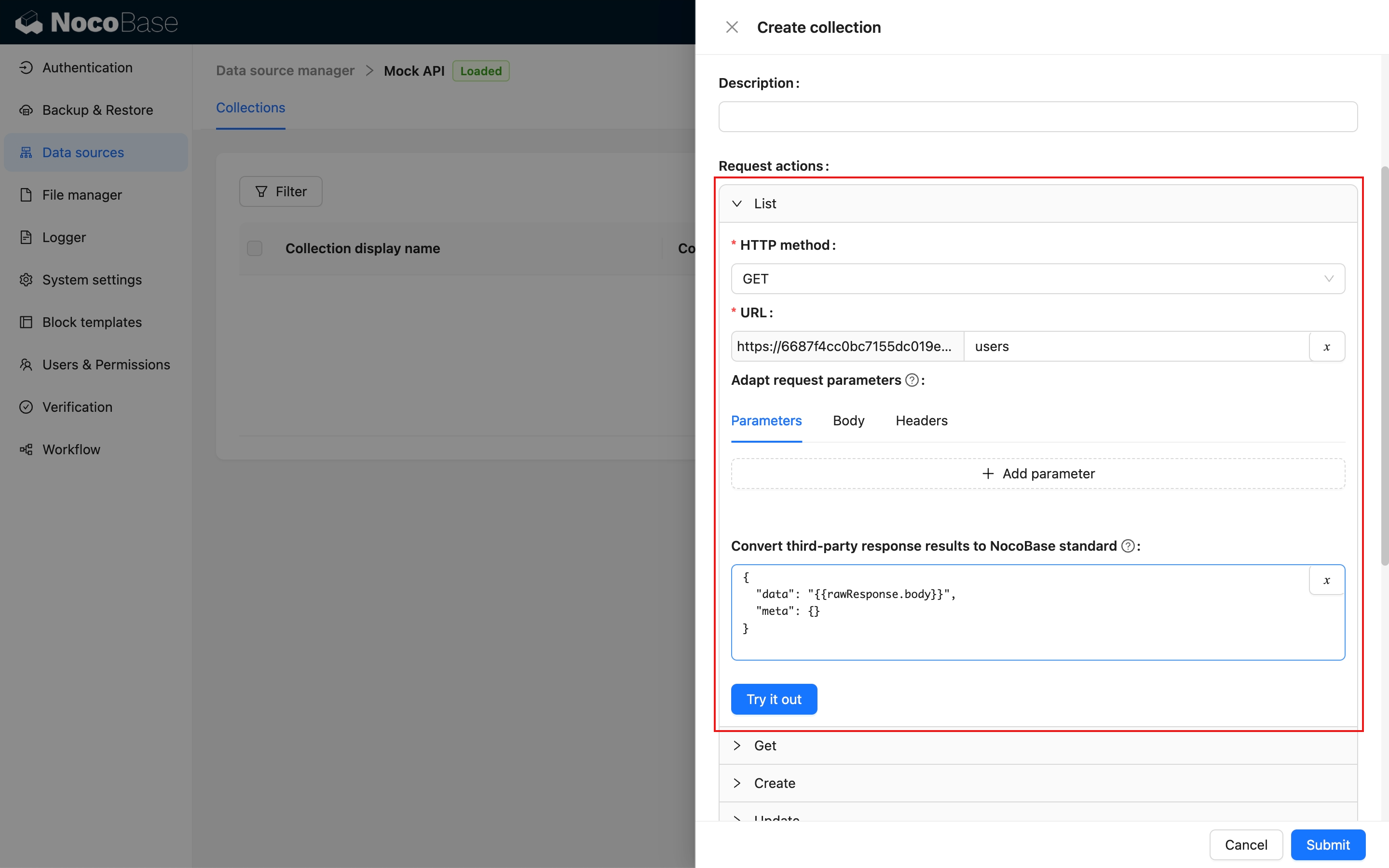

#List

Map the interface for viewing a list of resources.

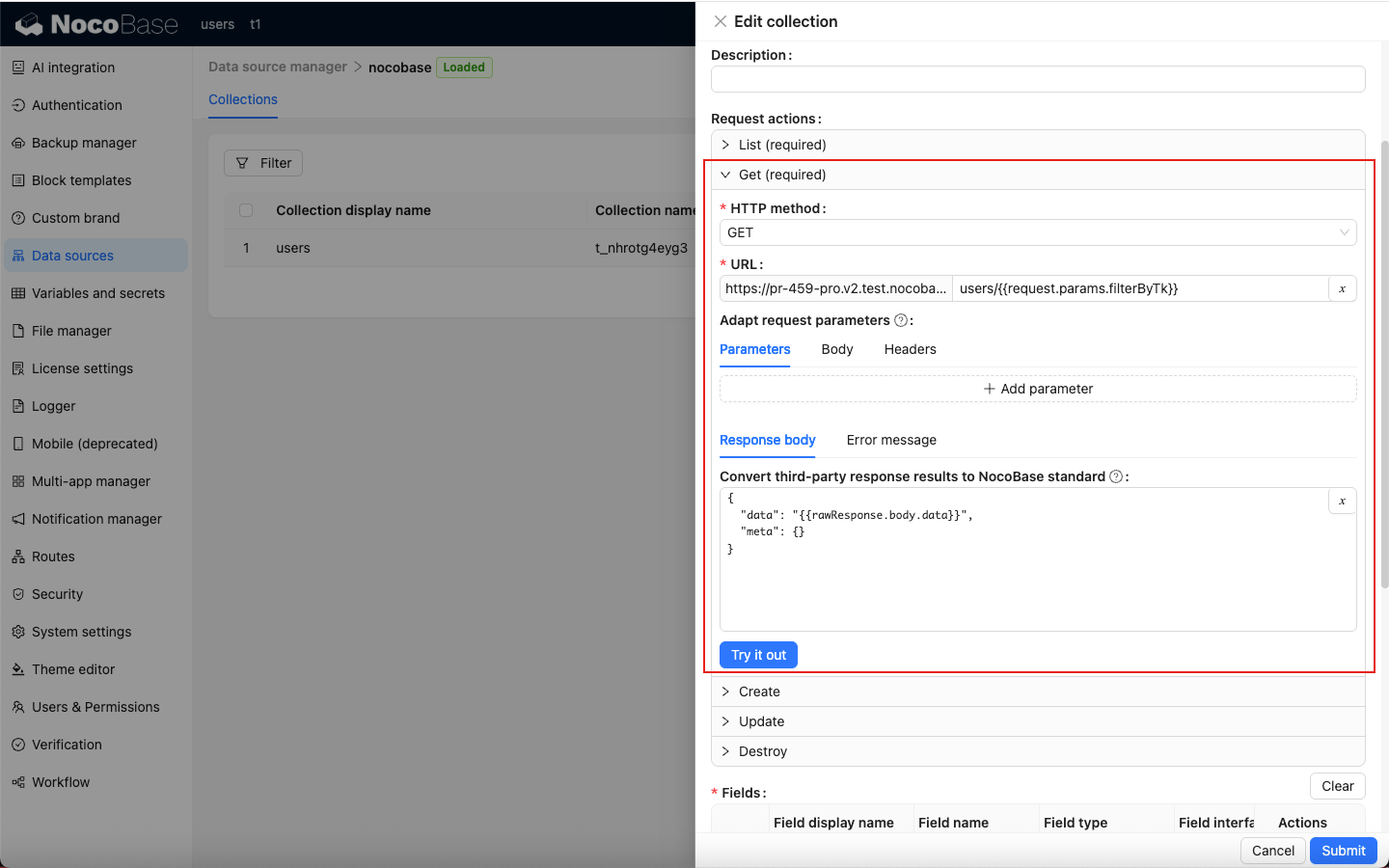

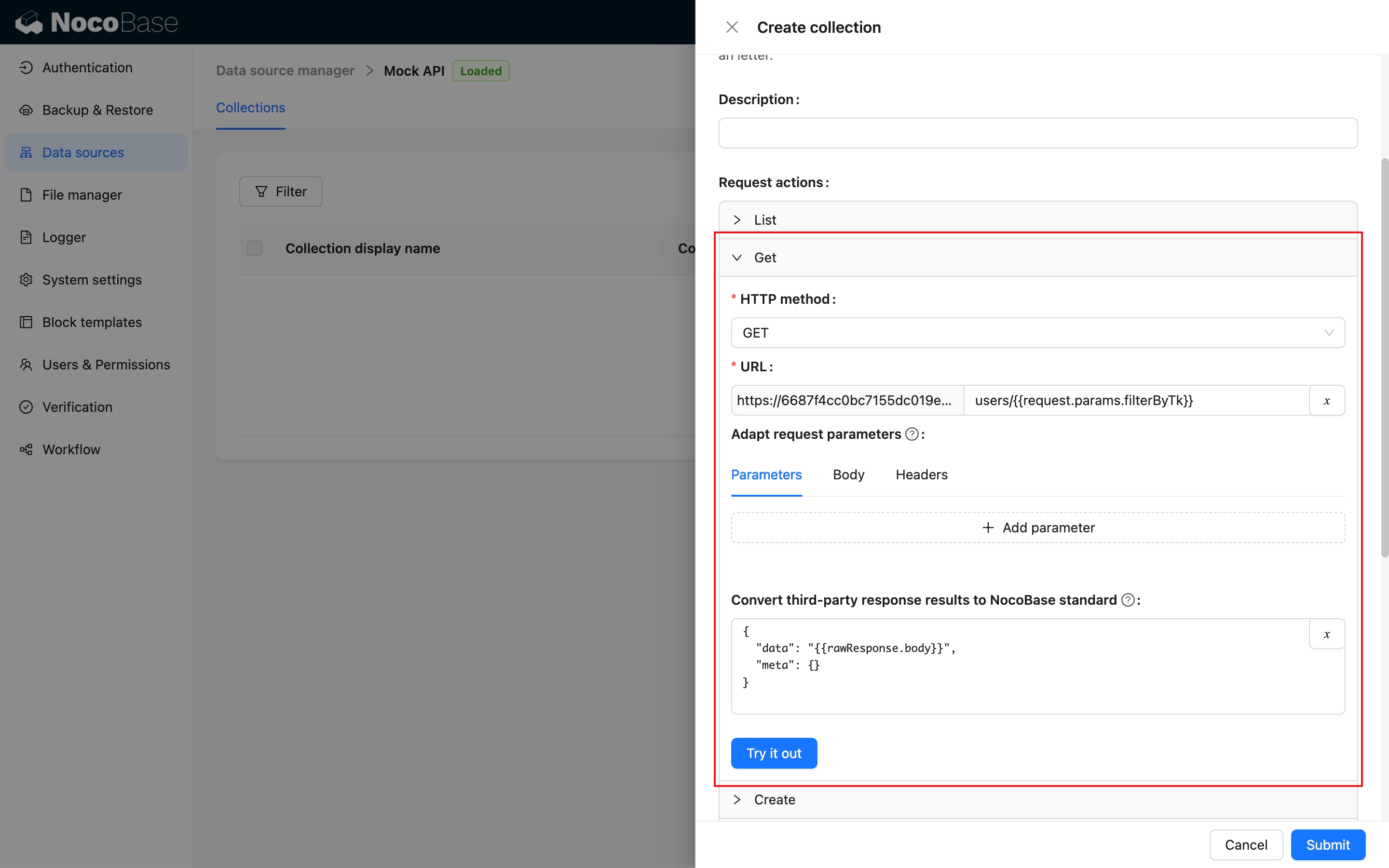

#Get

Map the interface for viewing resource details.

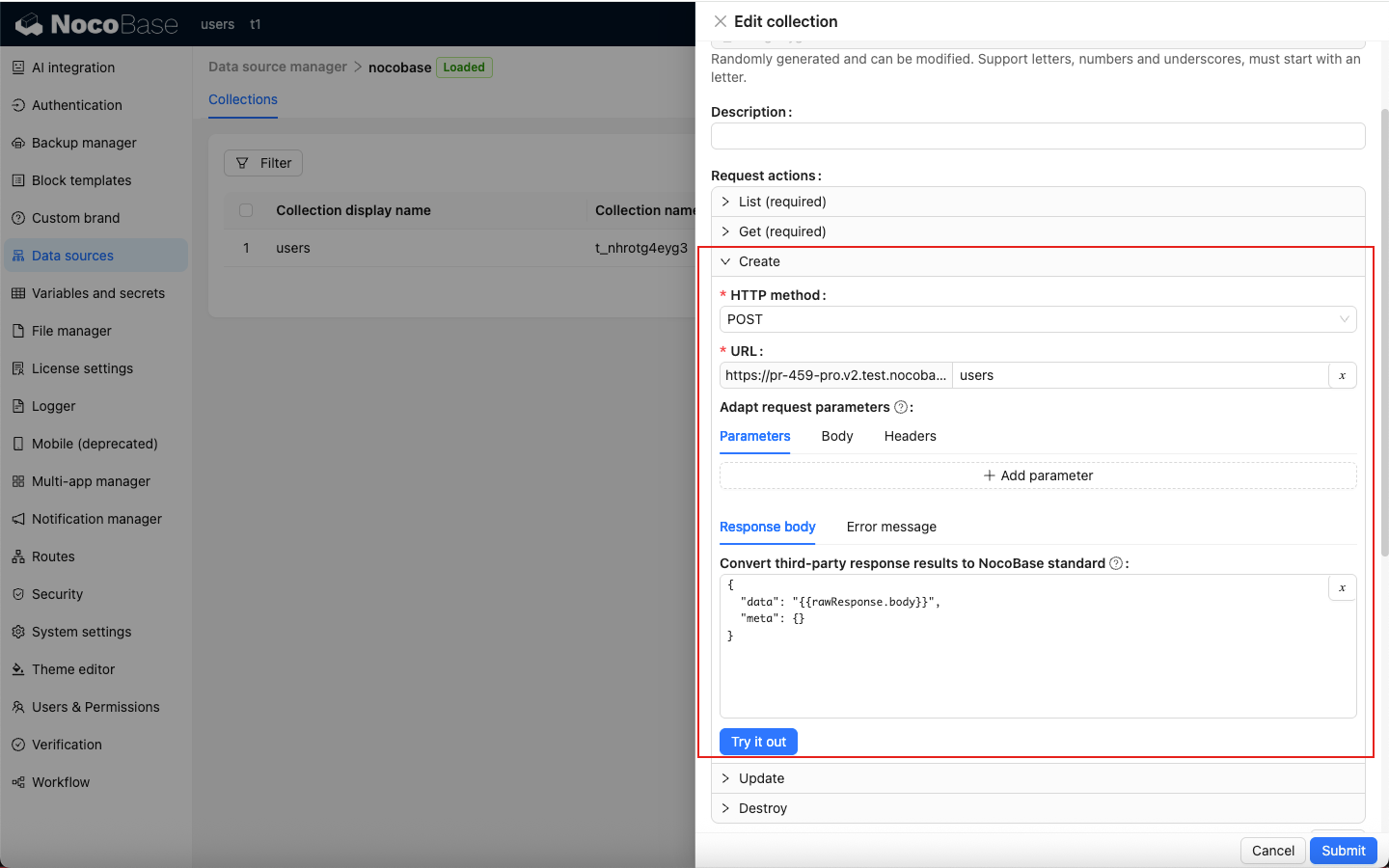

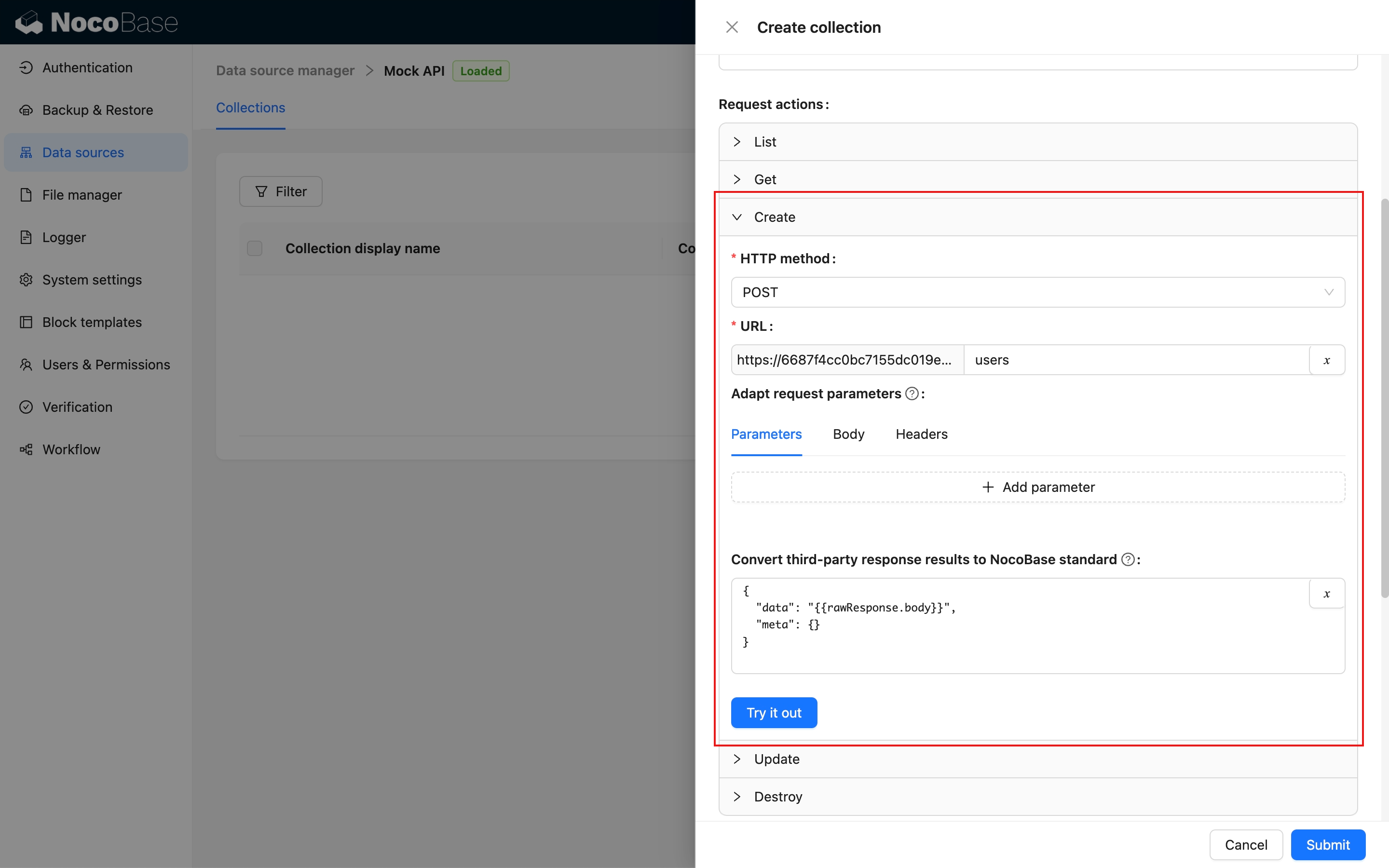

#Create

Map the interface for creating a resource.

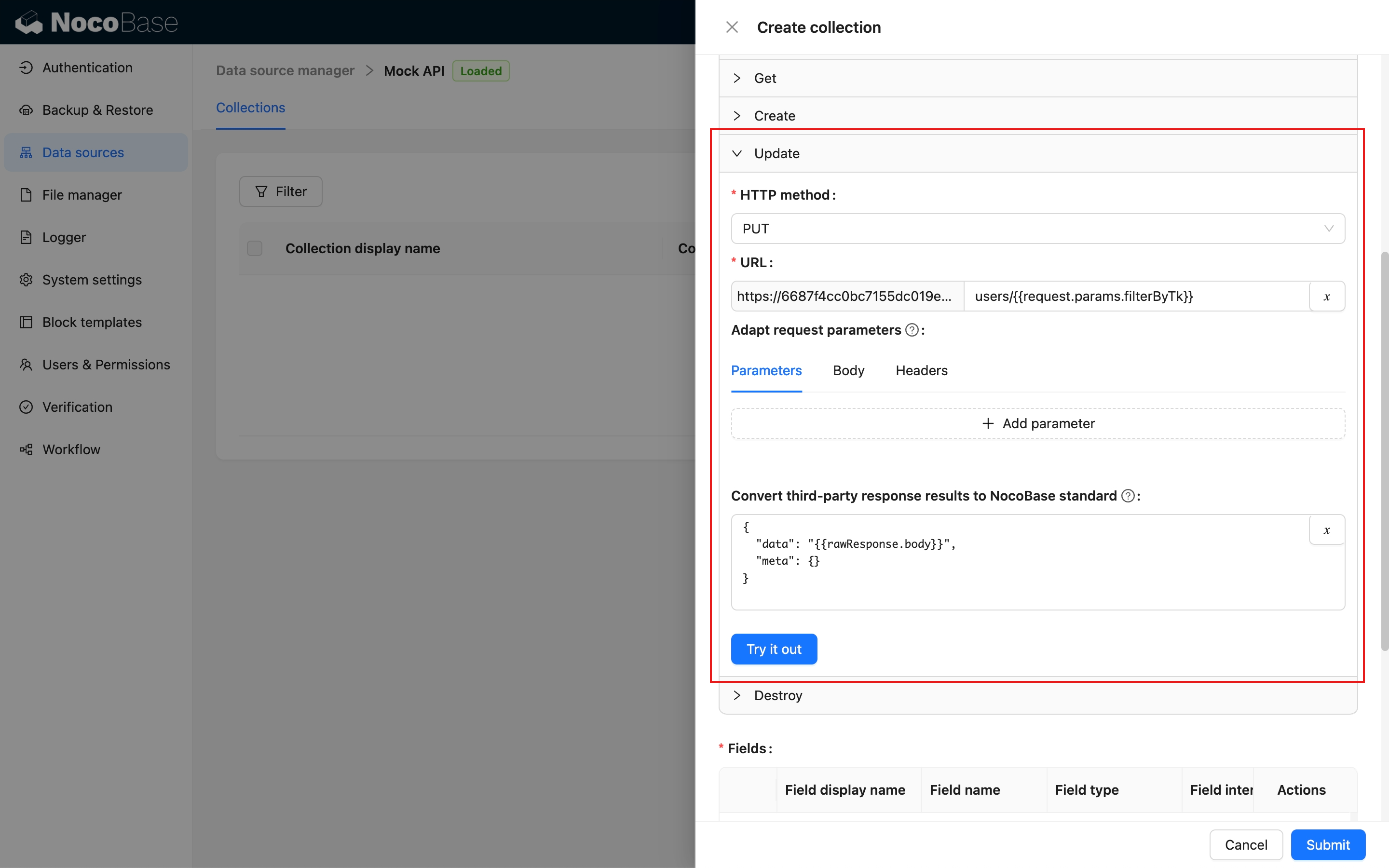

#Update

Map the interface for updating a resource.

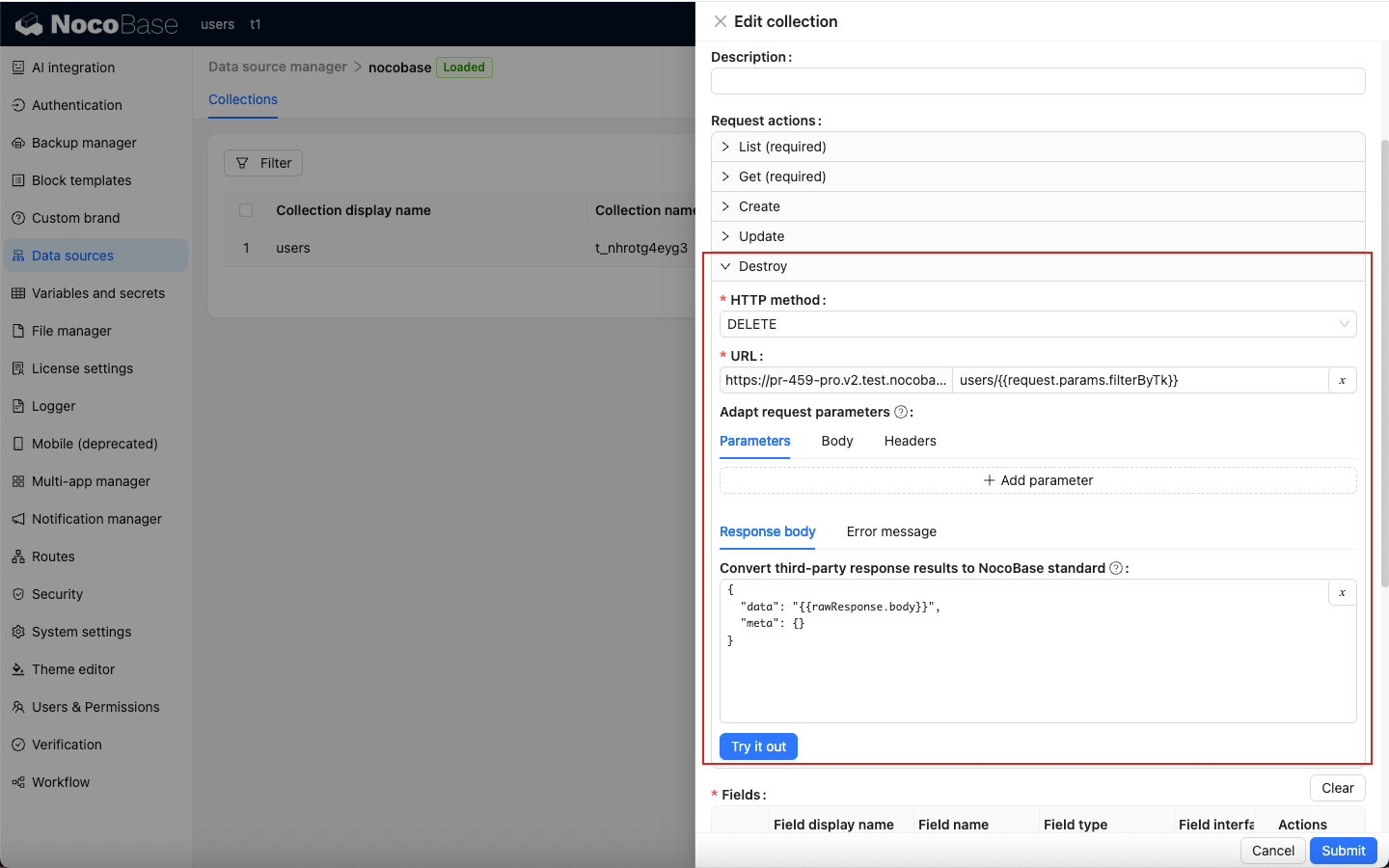

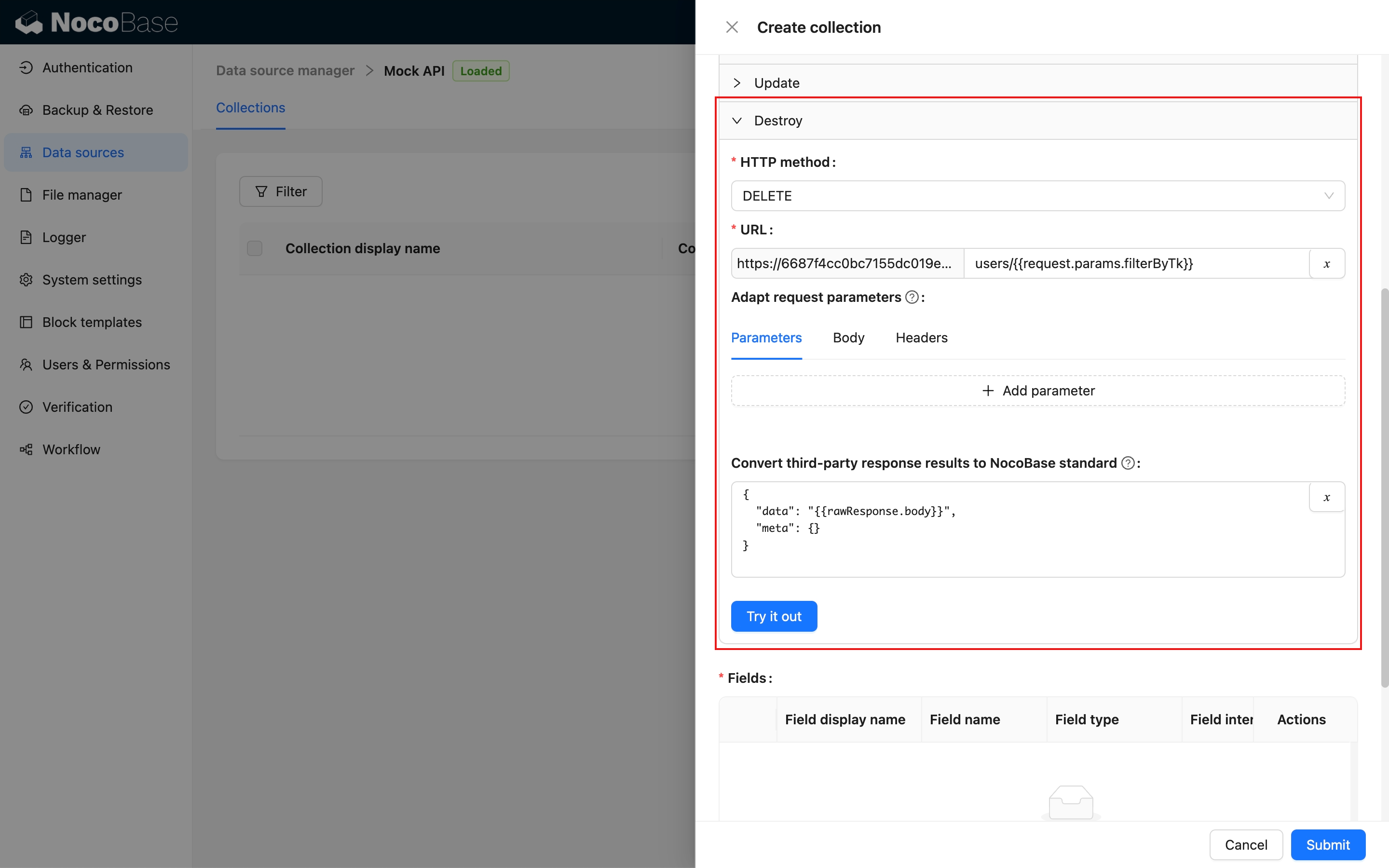

#Destroy

Map the interface for deleting a resource.

Both the List and Get interfaces are required to be configured.

#Debugging the API

#Request parameter integration

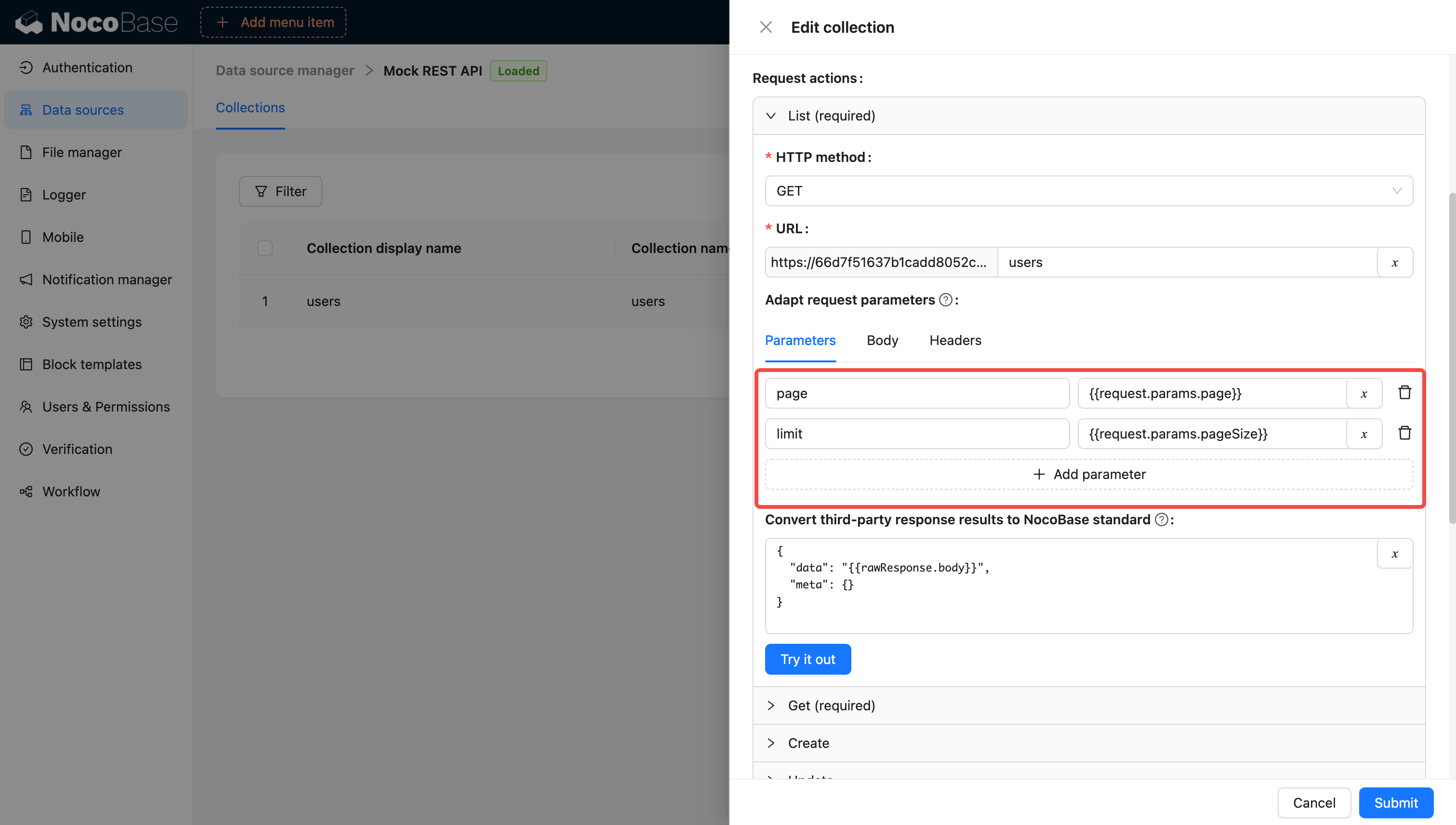

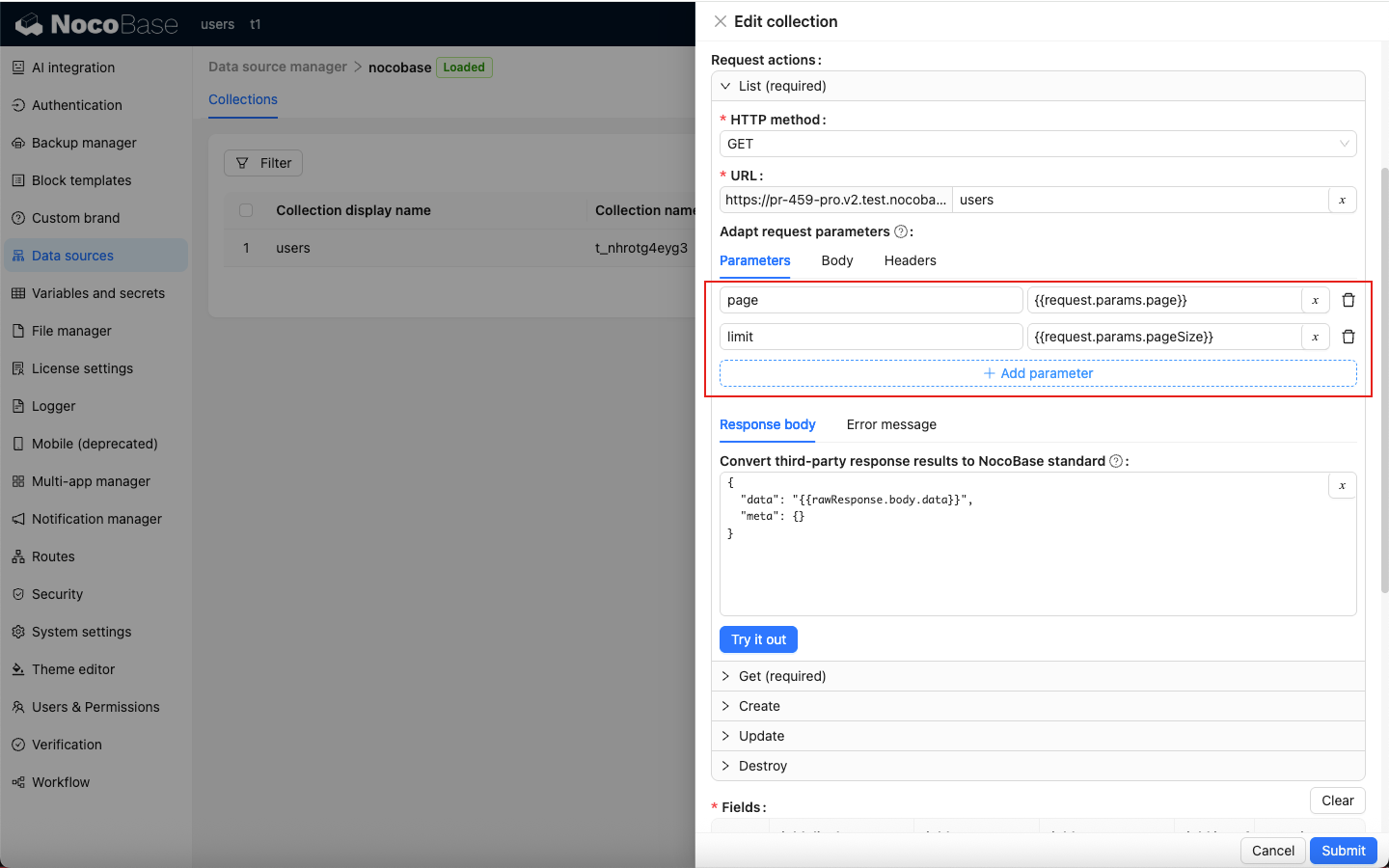

Example: Configure pagination parameters for the List API. If the third-party API does not support pagination natively, NocoBase will paginate based on the retrieved list data.

Please note that only variables added in the interface will take effect.

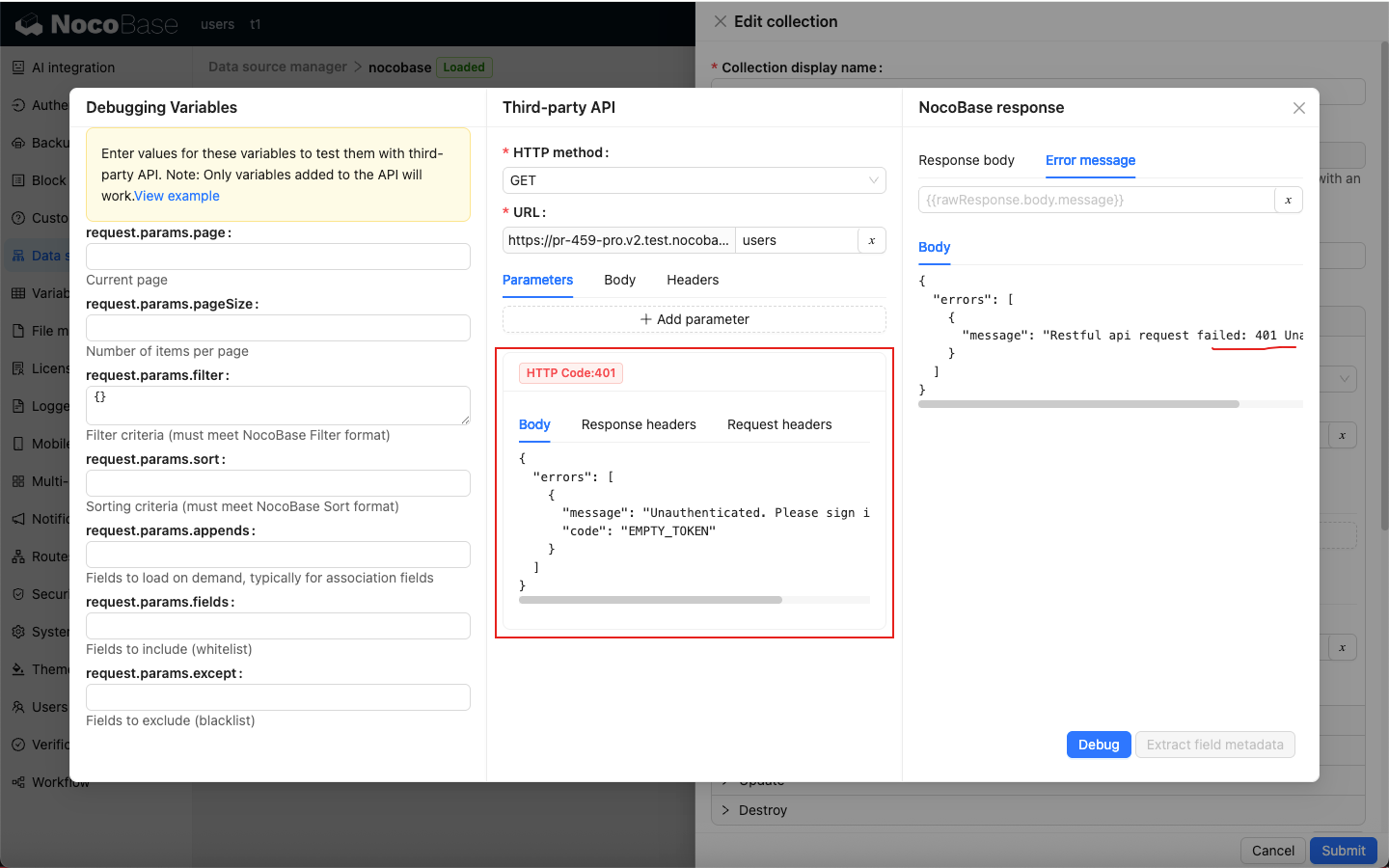

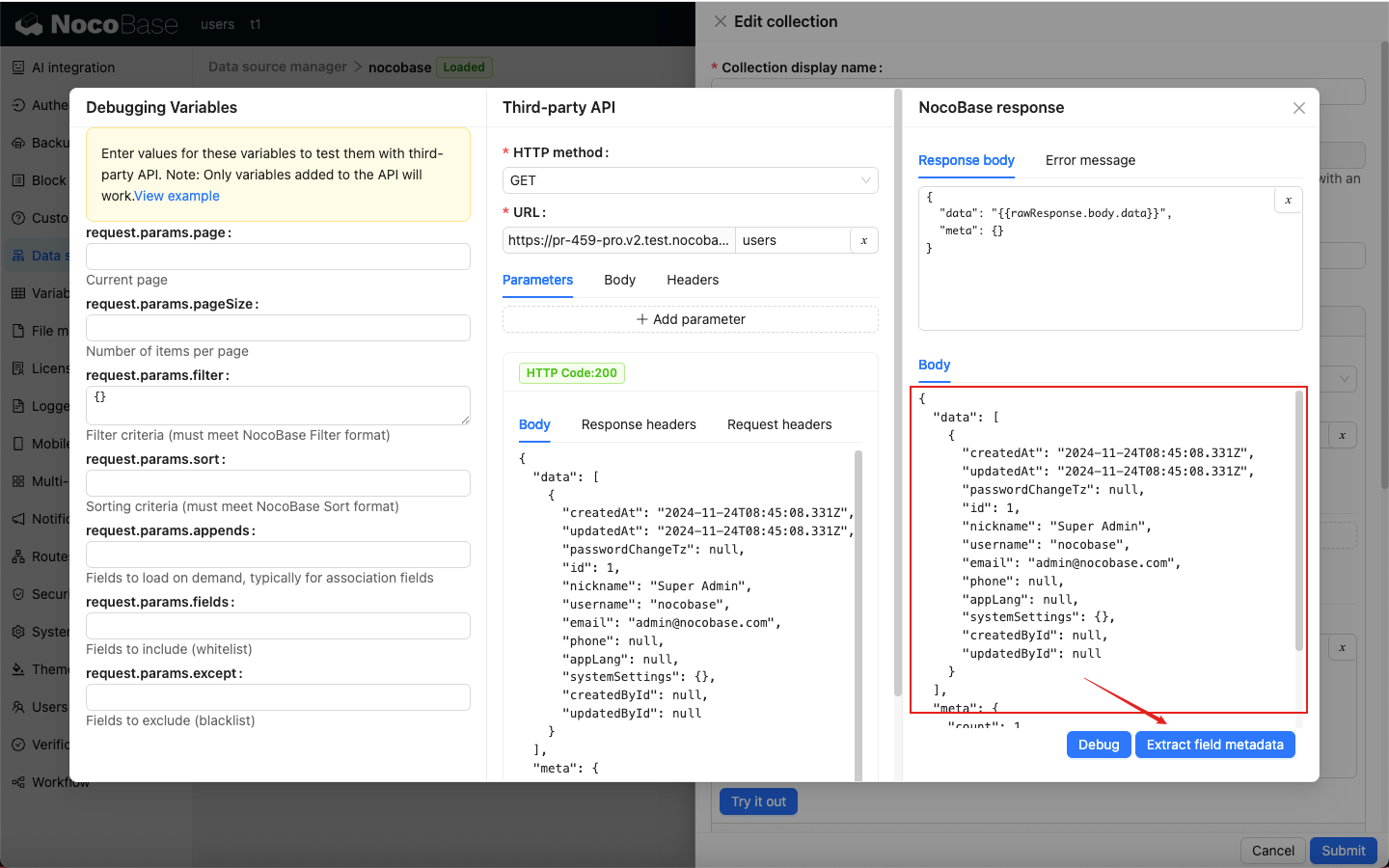

You can click Try it out to debug and view the response.

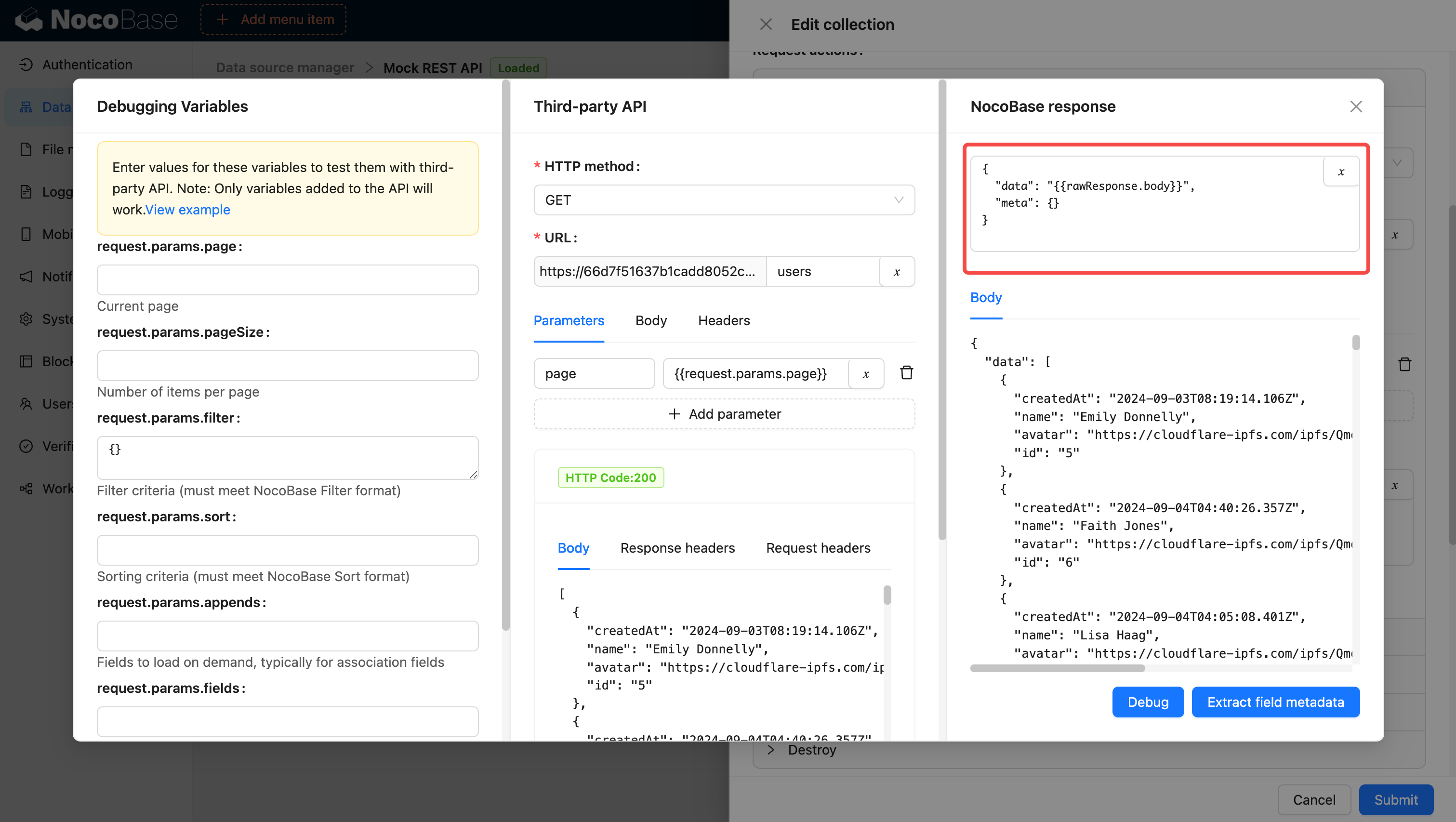

#Response format transformation

The response format of the third-party API may not be in NocoBase standard, and it needs to be transformed before it can be correctly displayed on the front end.

Adjust the conversion rules based on the response format of the third-party API to ensure the output conforms to the NocoBase standard.

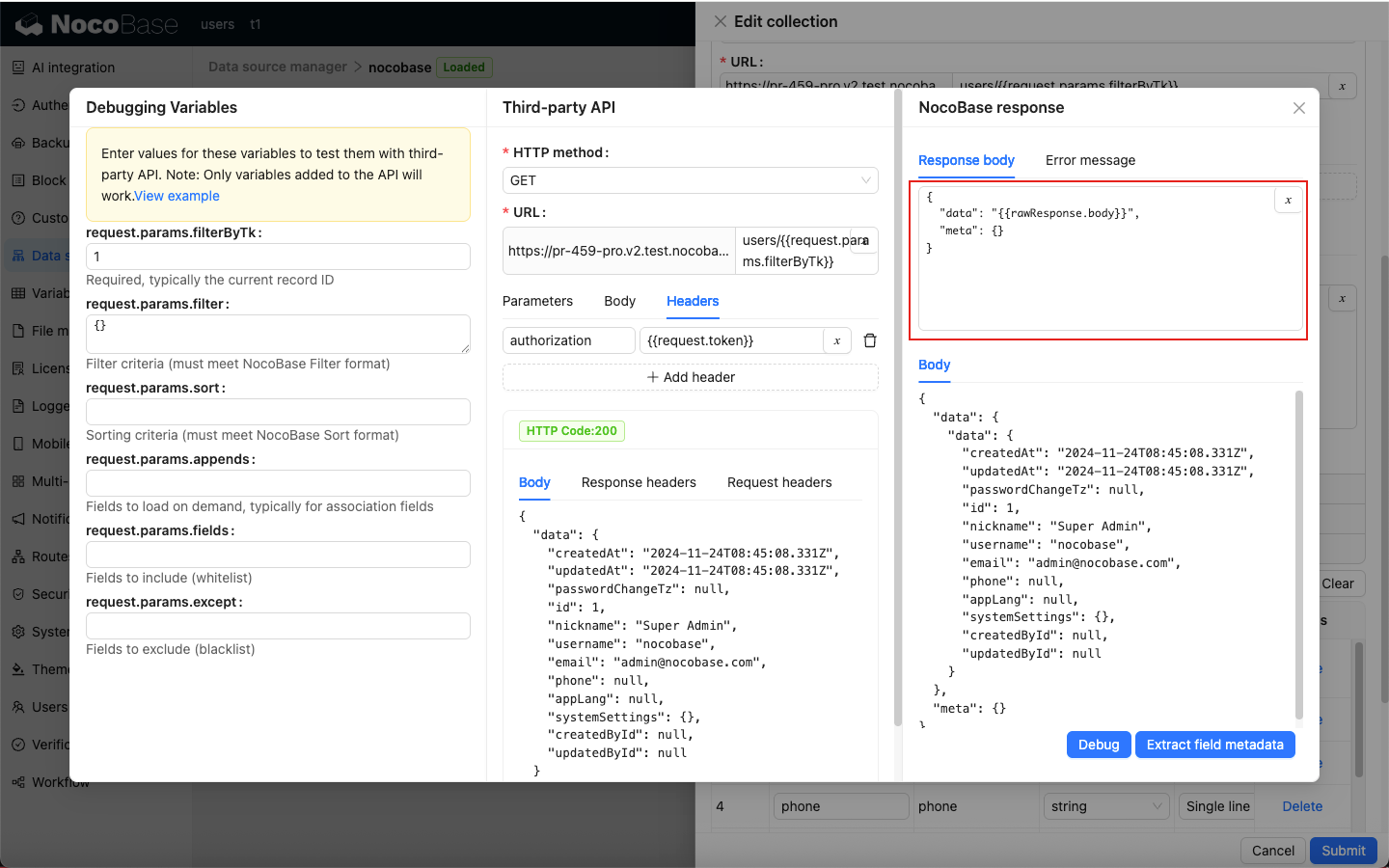

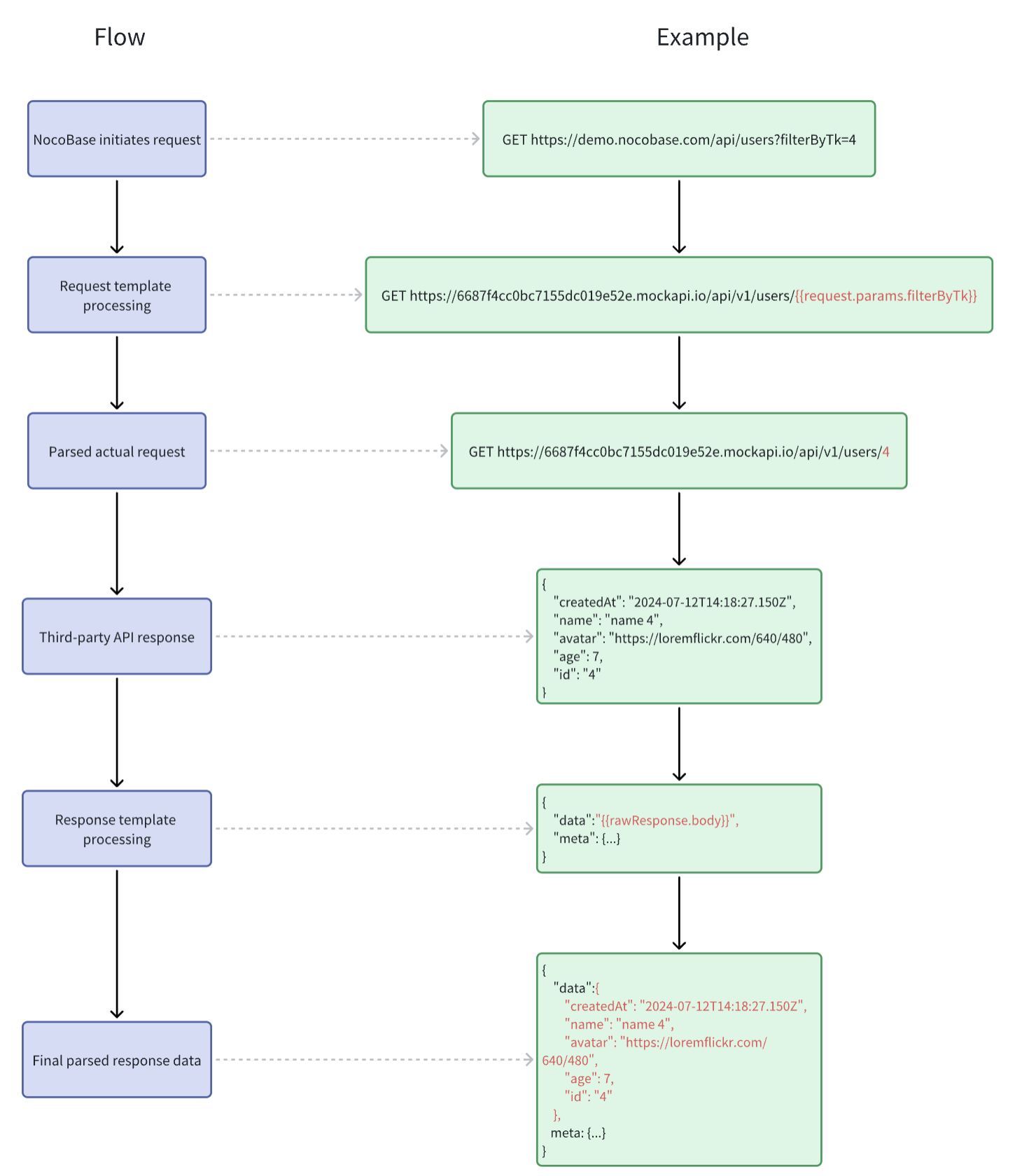

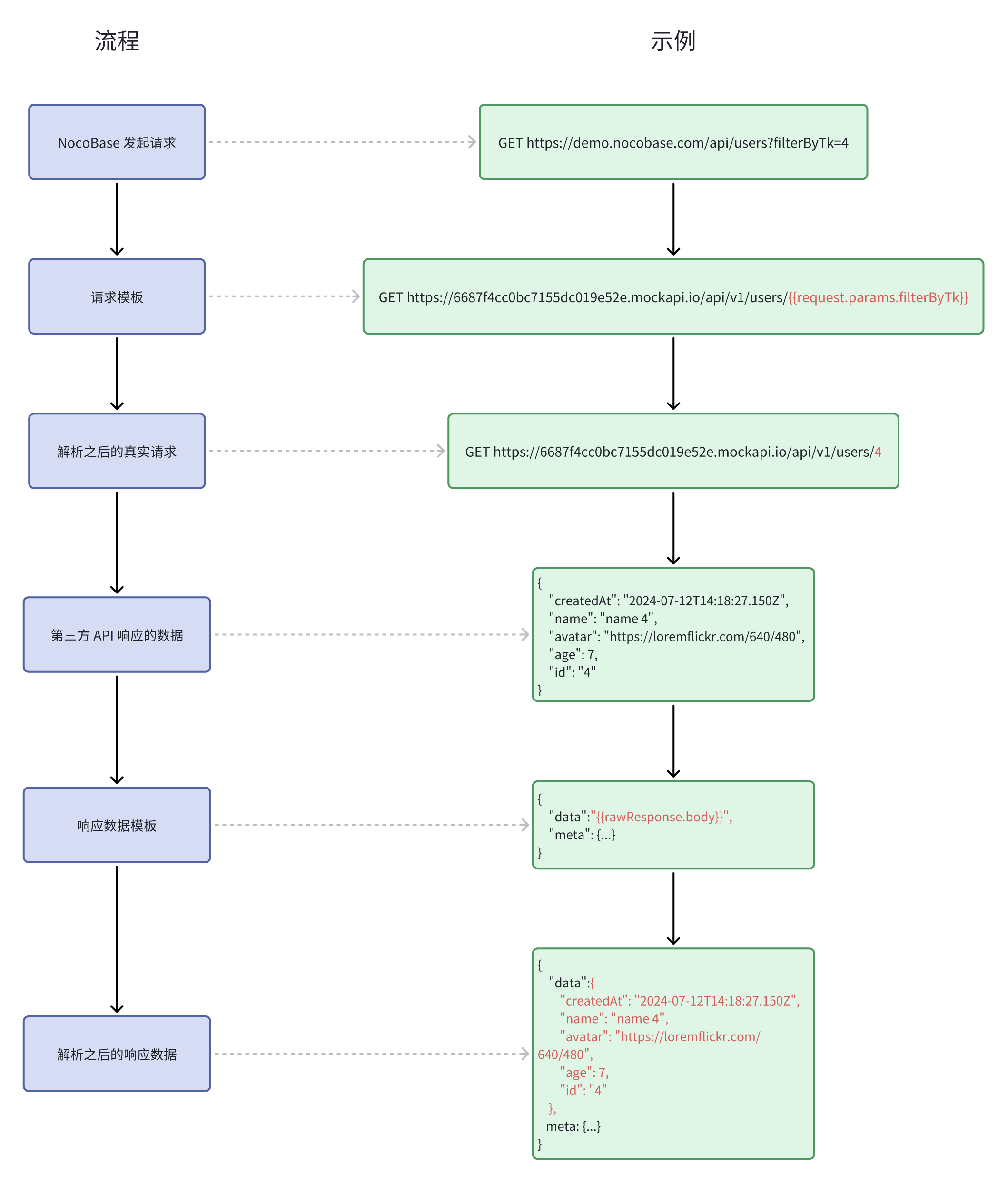

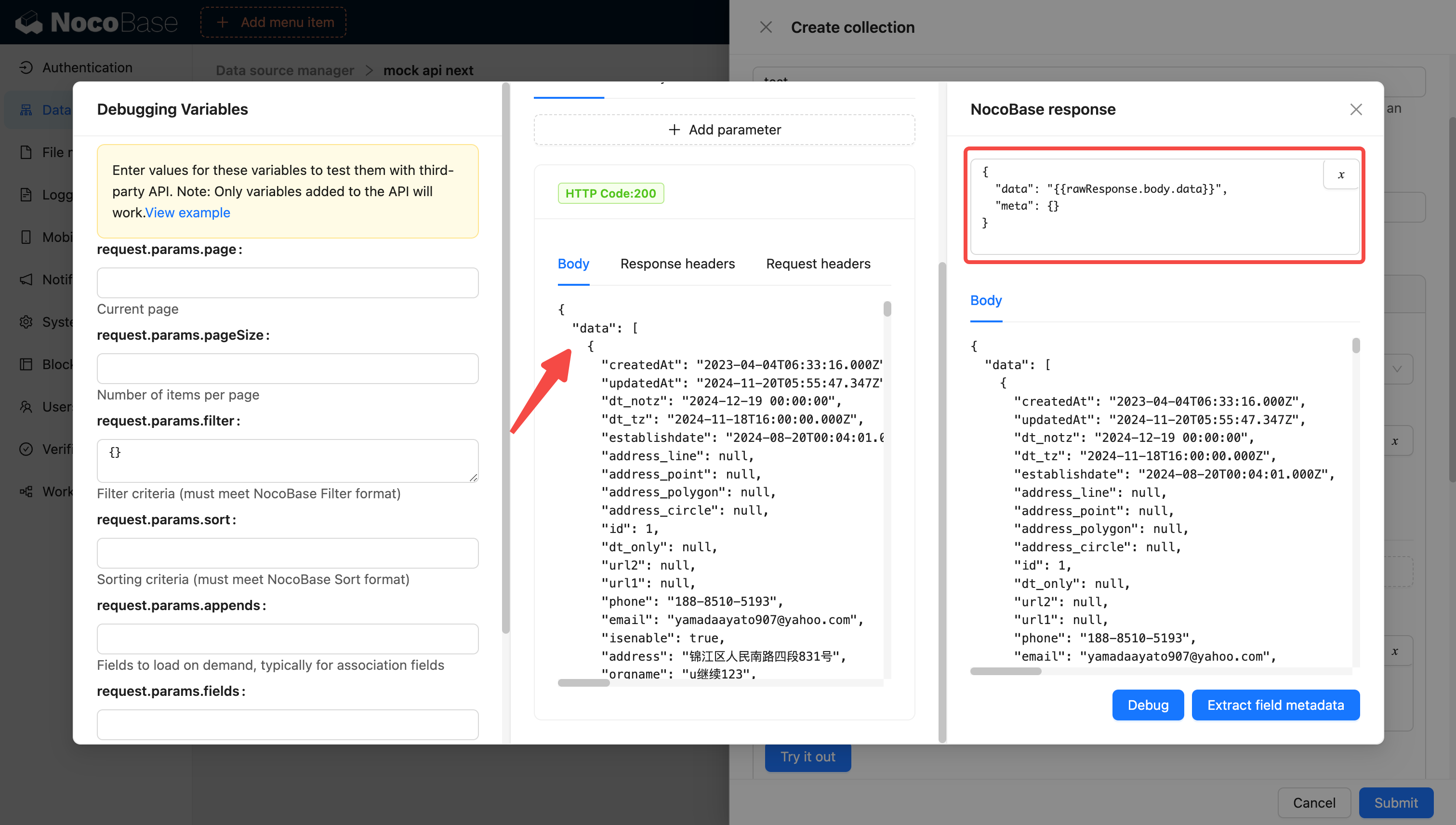

Debugging process description

#Variables

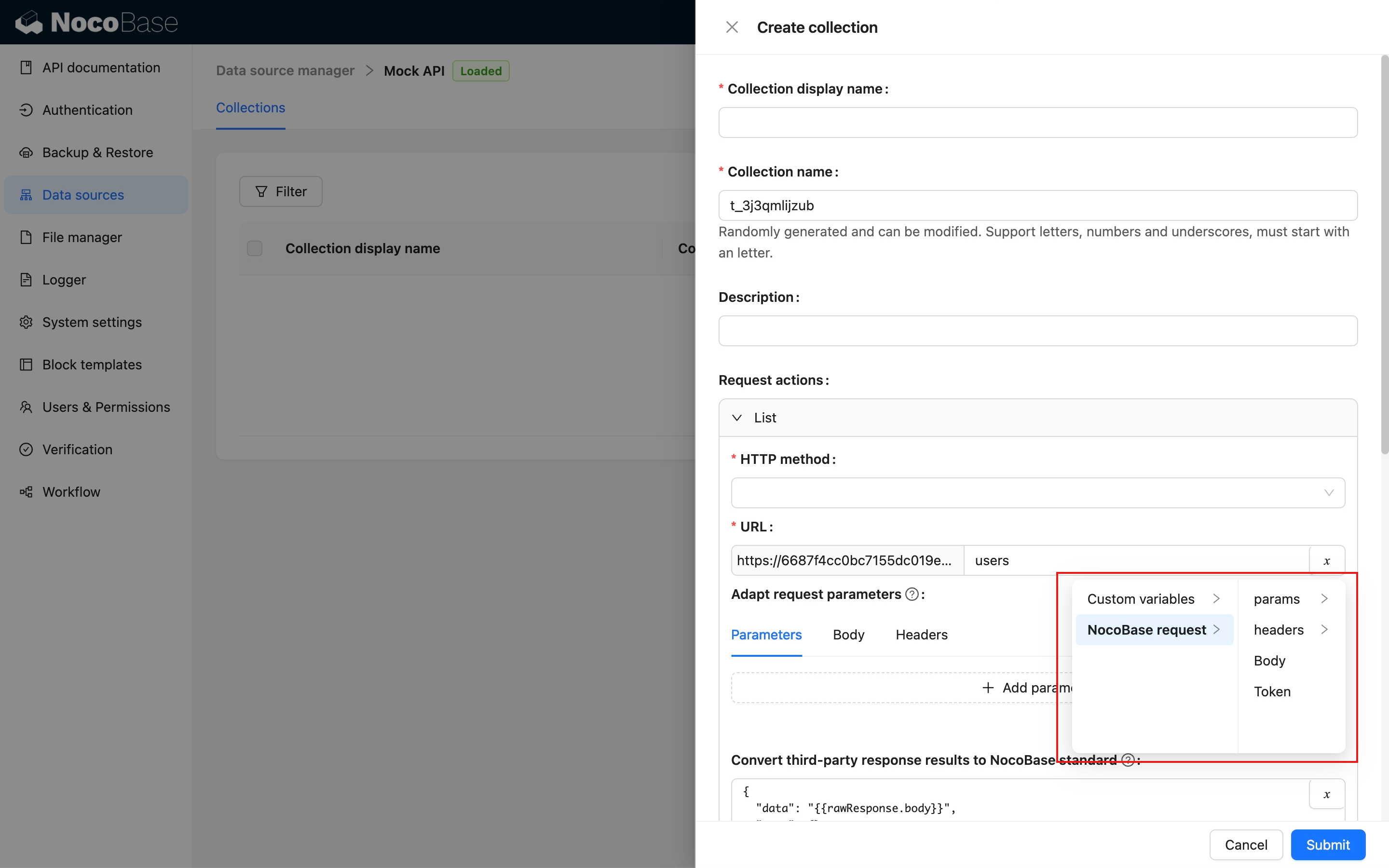

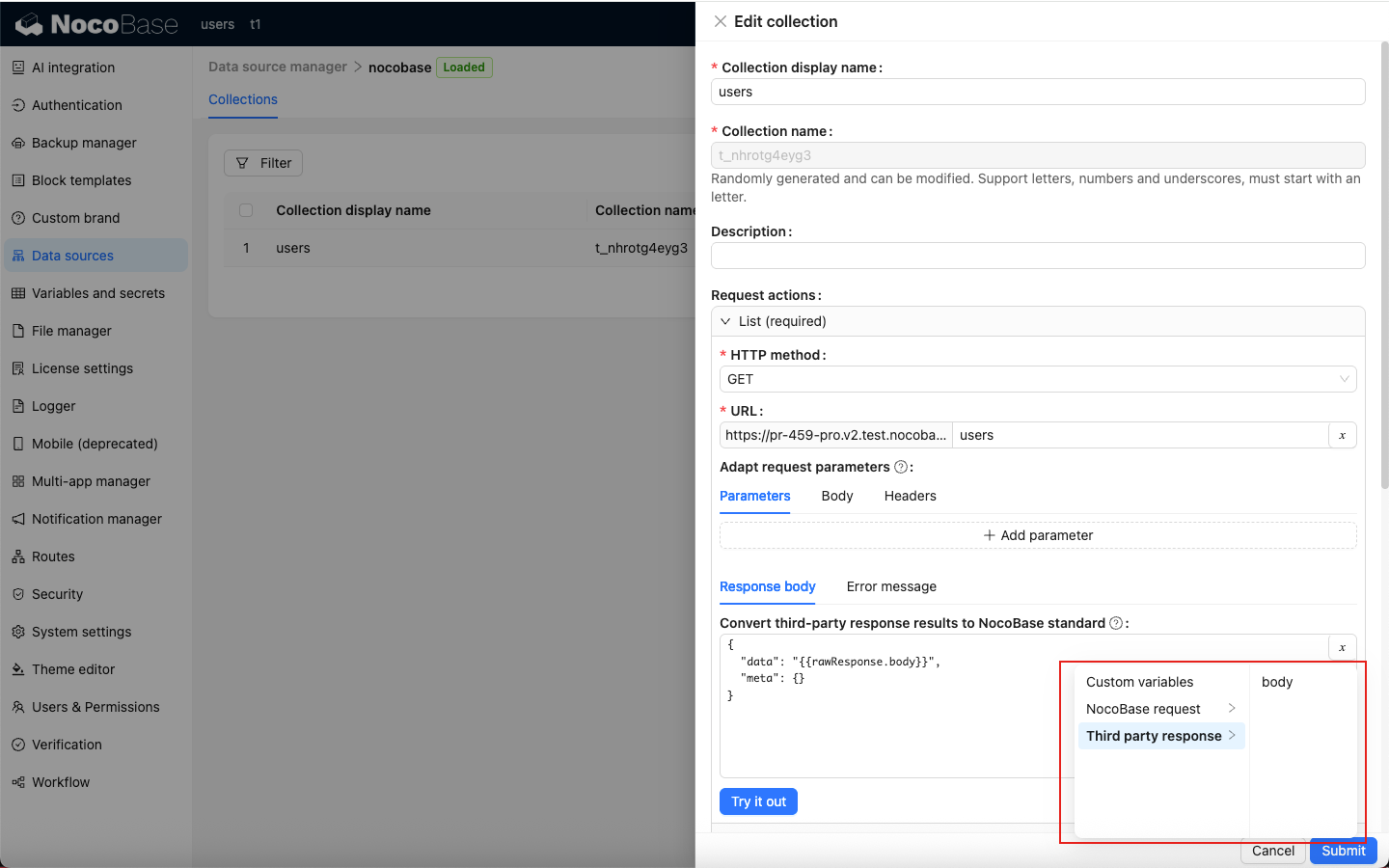

The REST API data source supports three types of variables for API integration:

• Custom data source variables
• NocoBase request variables
• Third-party response variables

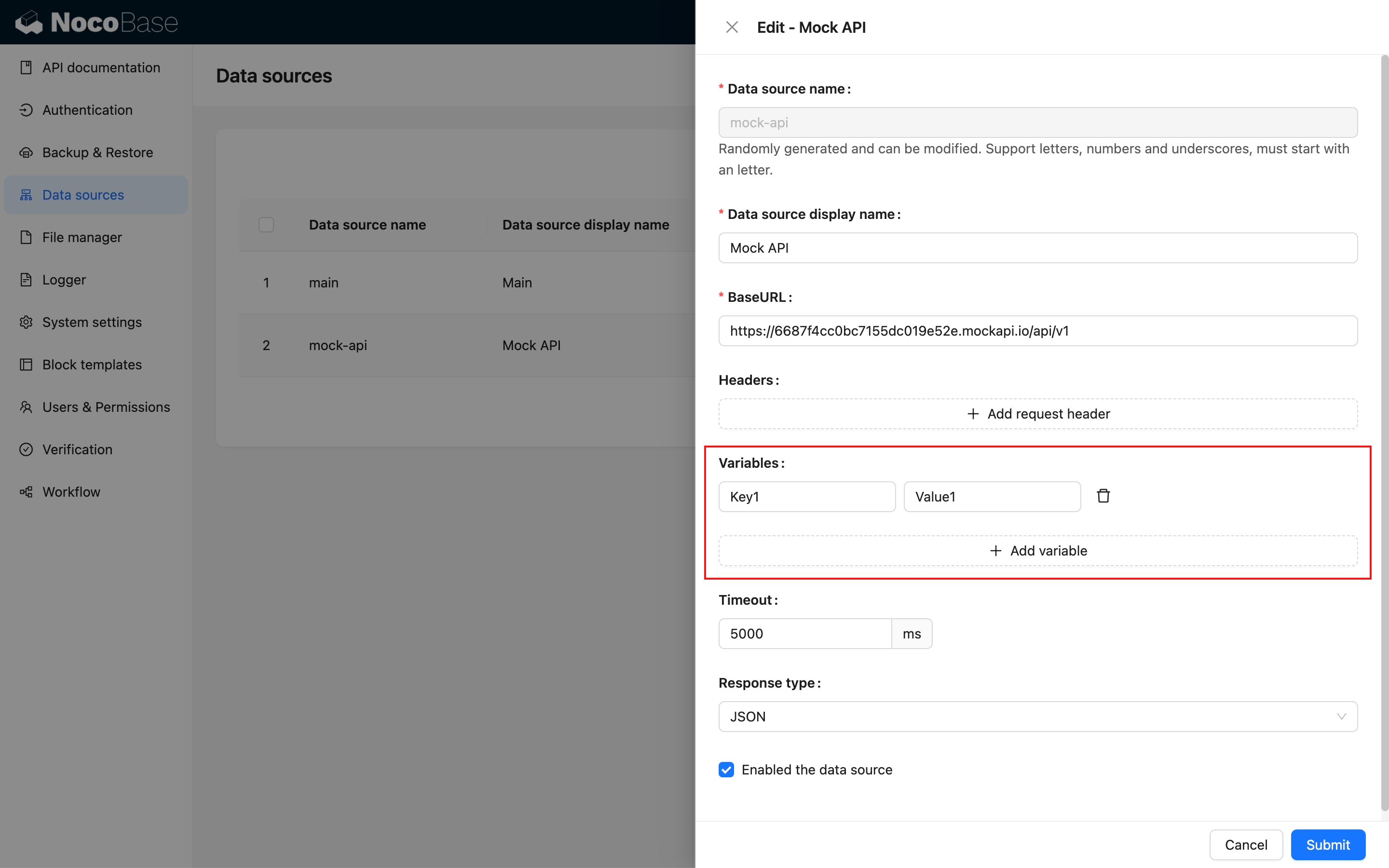

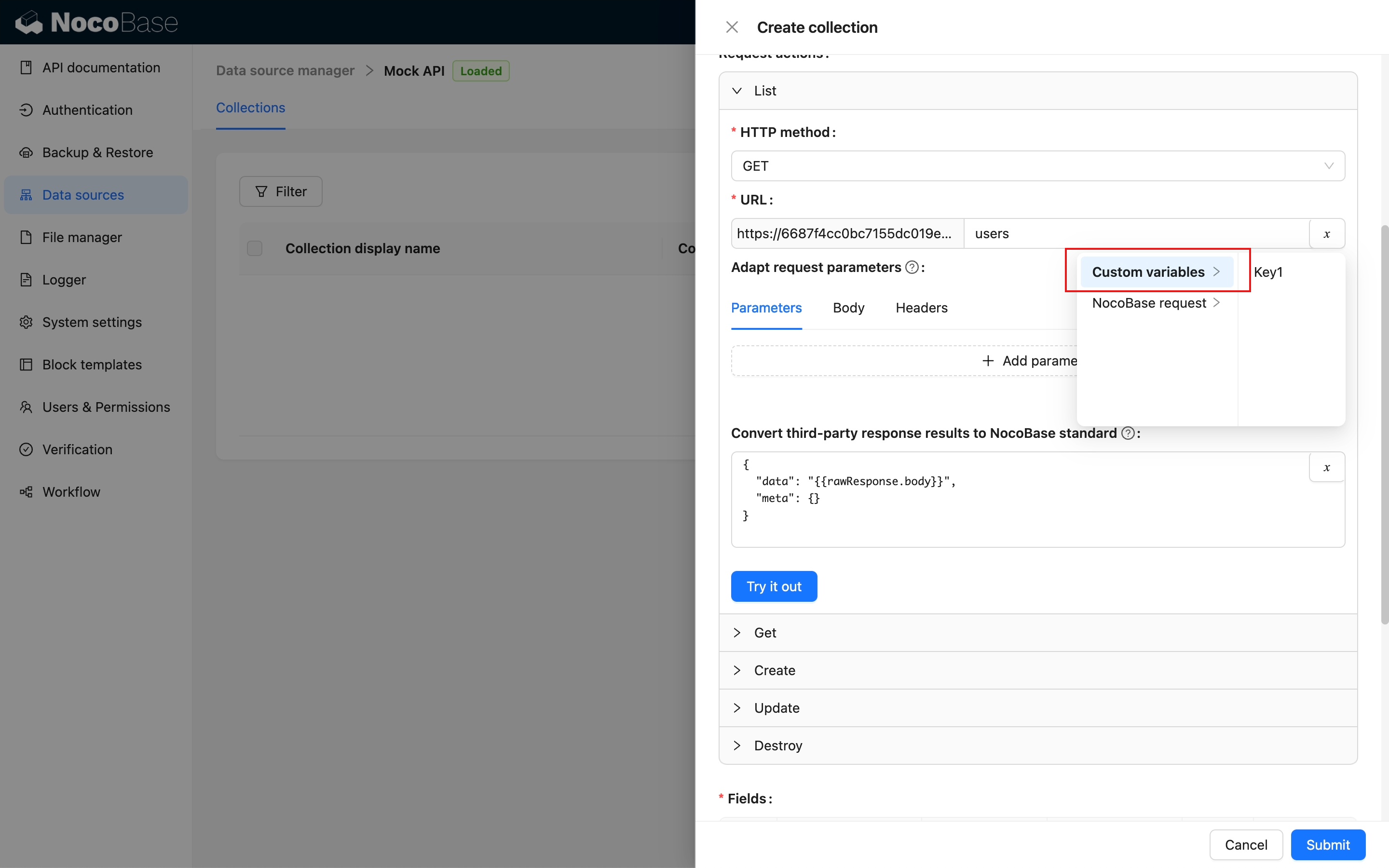

#Custom Data Source Variables

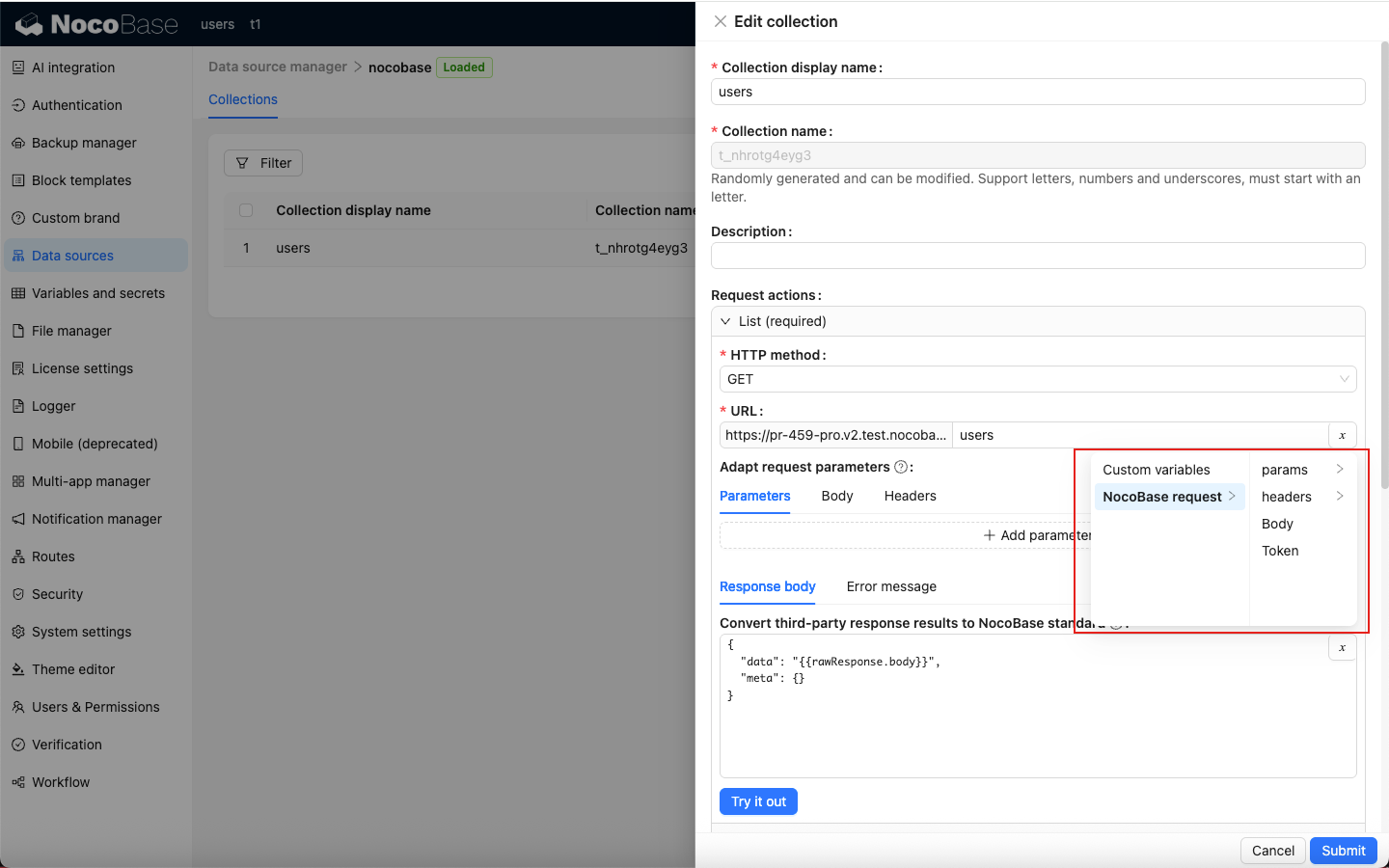

#NocoBase Request

• Params: URL query parameters (Search Params), which vary depending on the interface.
• Headers: Custom request headers, primarily providing specific X- information from NocoBase.
• Body: The request body.
• Token: The API token for the current NocoBase request.

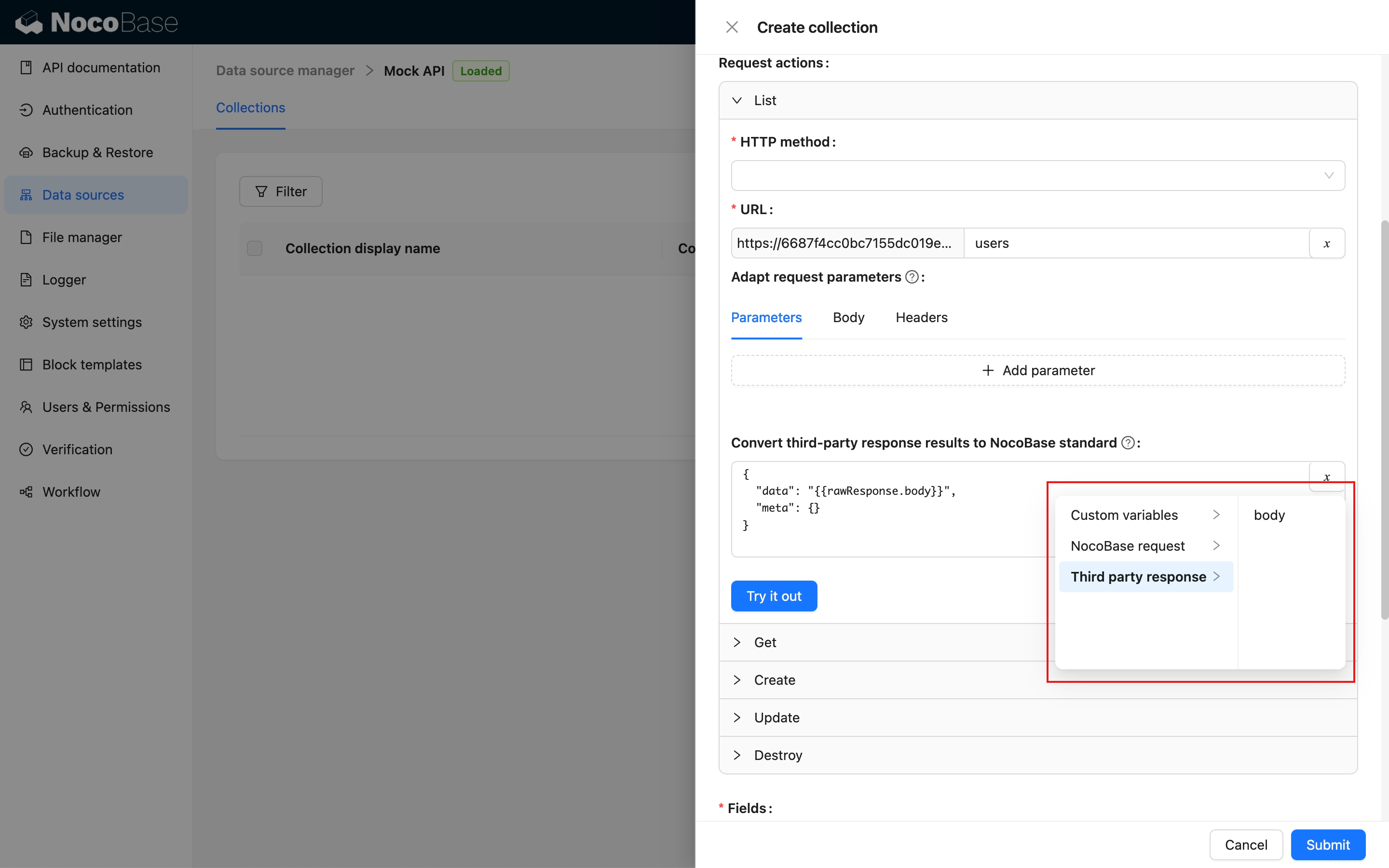

#Third-Party Responses

Currently, only the response body is available.

Below are the variables available for each interface:

#List

#Get

#Create

#Update

#Destroy

#Field Configuration

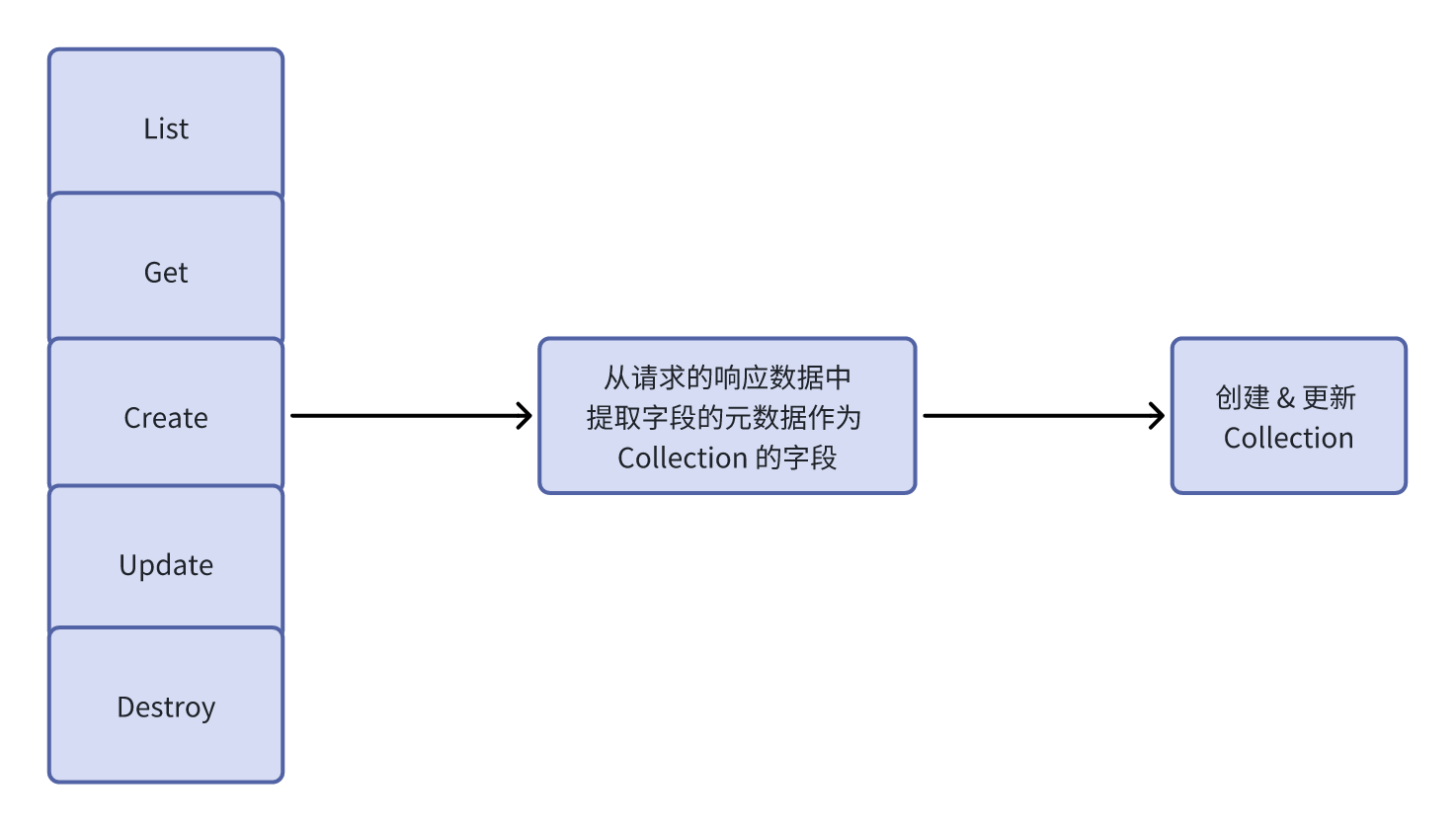

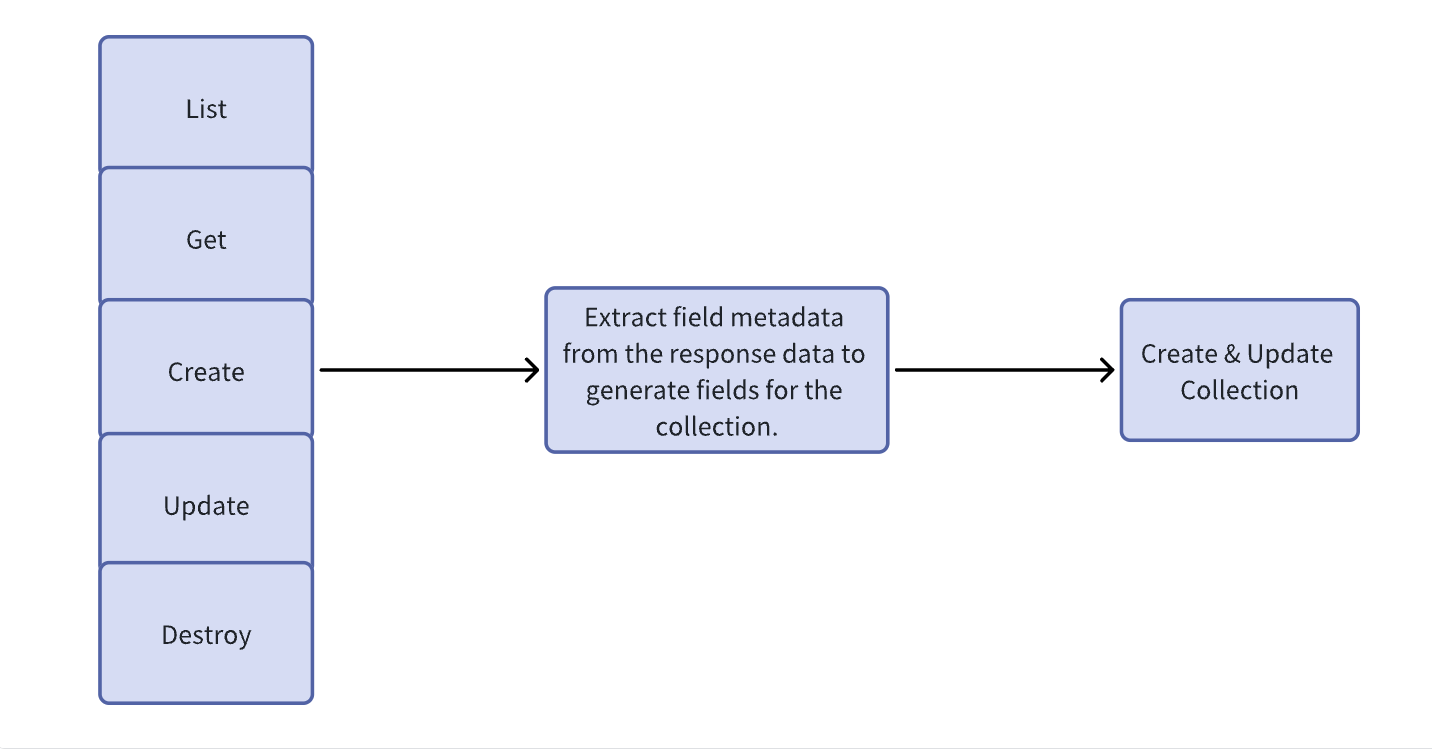

Field metadata (Fields) is extracted from the CRUD interface data of the adapted resource to serve as the fields of the collection.

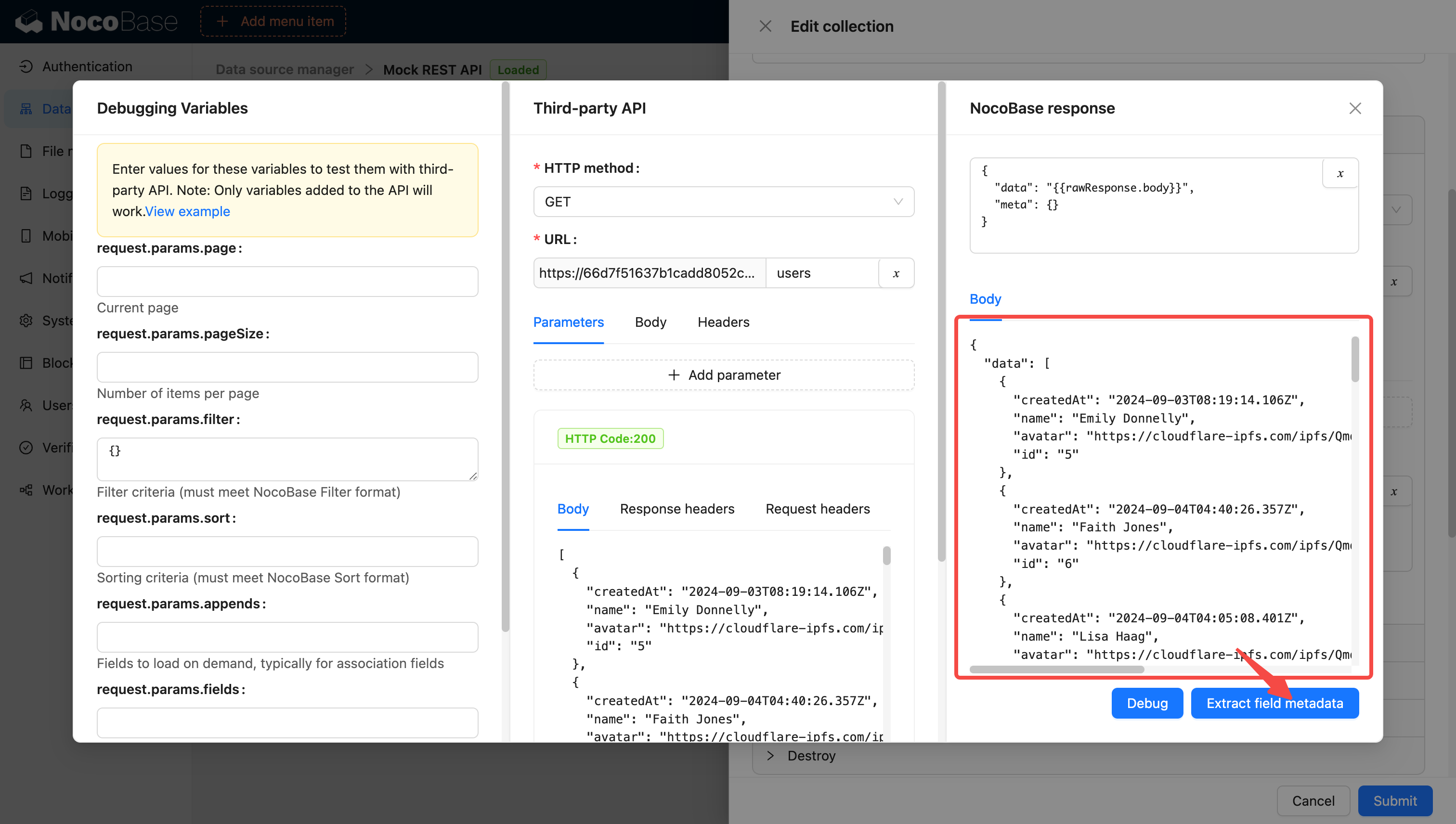

Extract field metadata.

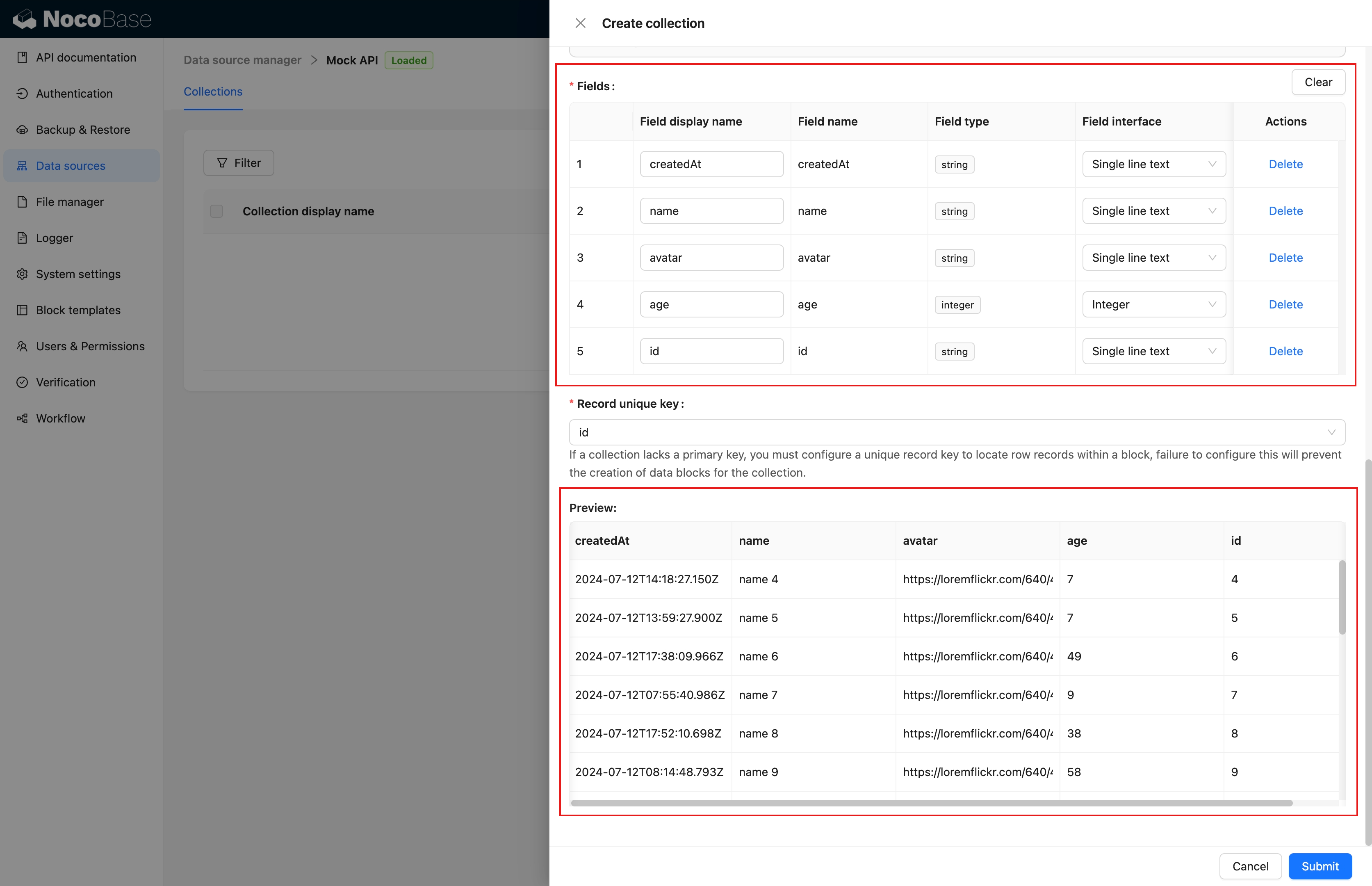

Fields and preview.

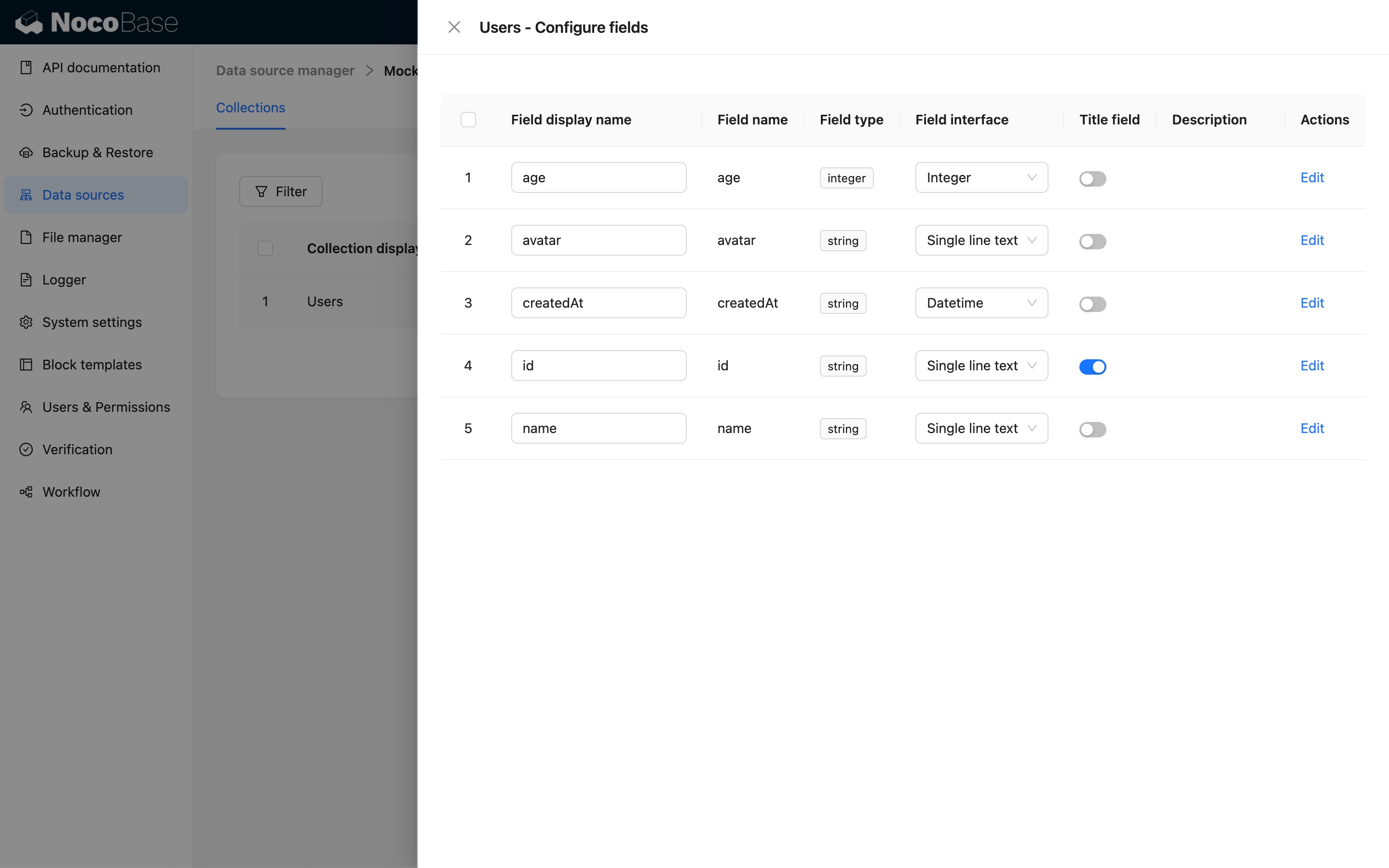

Edit fields (similar to other data sources).

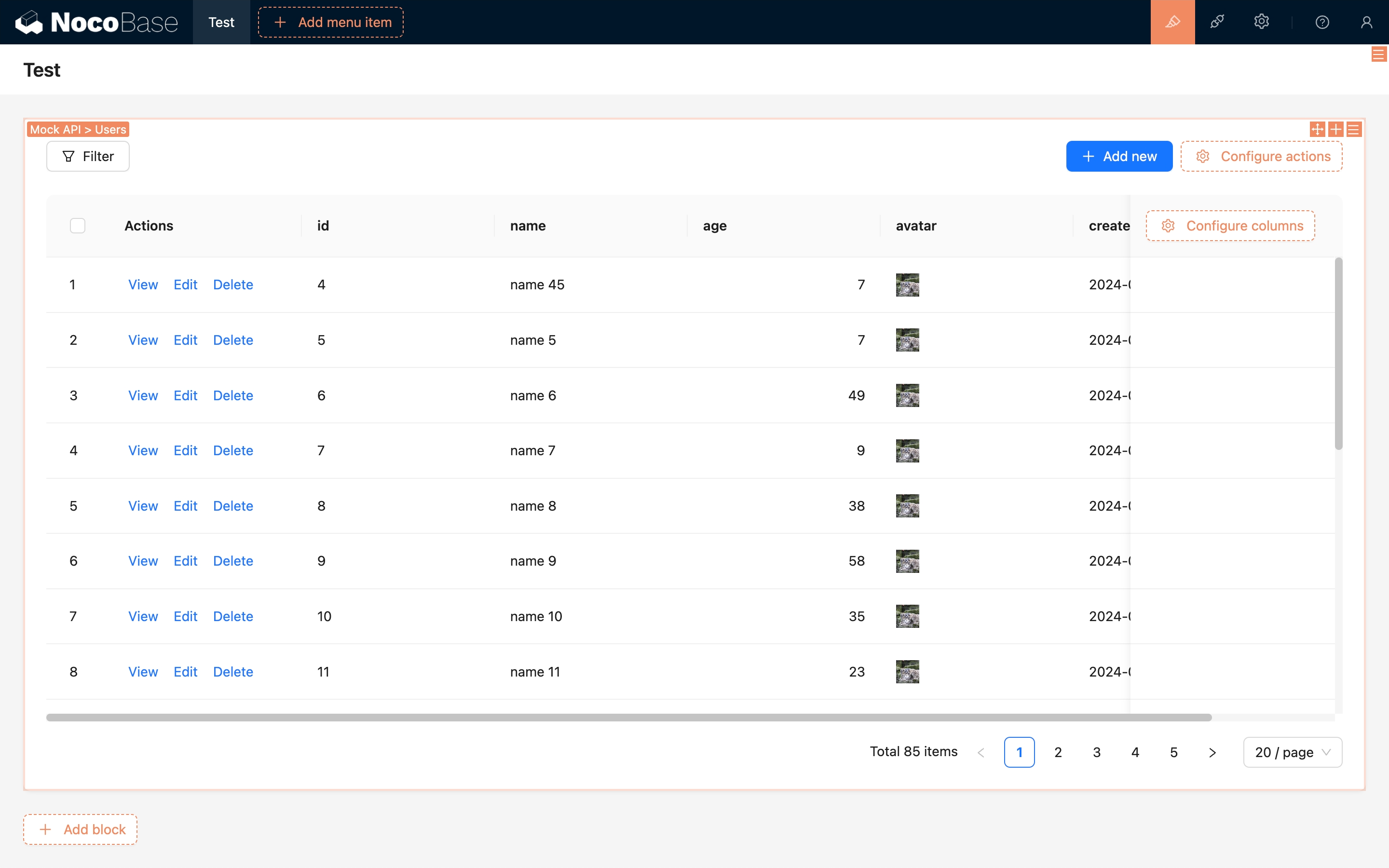

#Adding REST API Data Source Blocks

Once the collection is configured, you can add blocks to the interface.
