#Overview

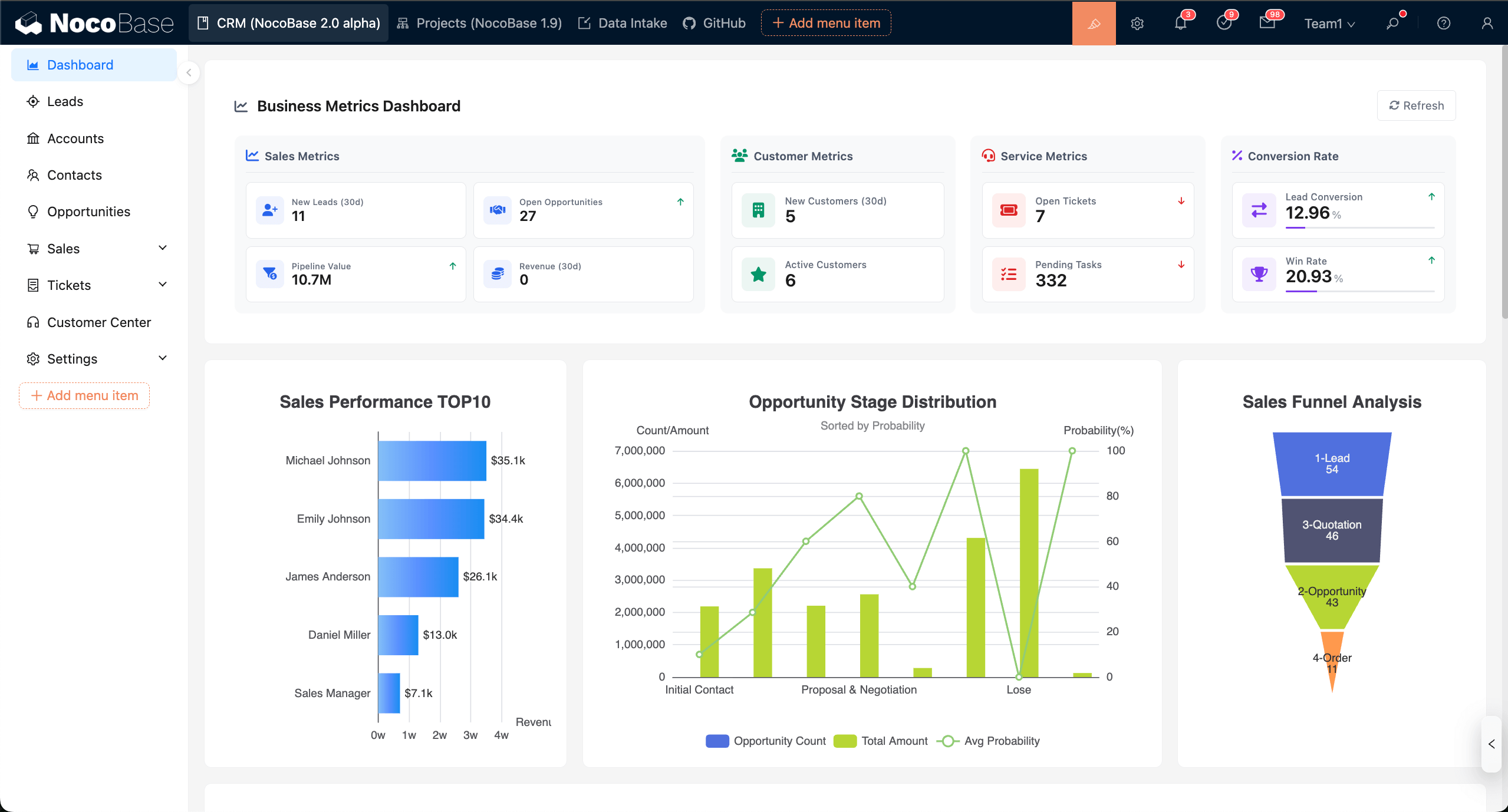

The NocoBase data visualization plugin provides visual data querying and a rich set of chart components. With simple configuration, you can quickly build dashboards, present insights, and support multi‑dimensional analysis and display.

#Basic concepts

• Chart block: A configurable chart component on a page that supports data query, chart options, and interaction events.
• Data query (Builder/SQL): Configure visually with the Builder or write SQL to fetch data.
• Measures and Dimensions: Measures are used for numeric aggregation; Dimensions group data (for example, date, category, region).
• Field mapping: Map query result columns to core chart fields such as xField, yField, seriesField, or Category / Value.
• Chart options (Basic/Custom): Basic configures common properties visually; Custom returns a full ECharts option via JS.
• Run query: Run the query and fetch data in the configuration panel; switch to Table / JSON to inspect returned data.
• Preview and Save: Preview is temporary; clicking Save writes the configuration to the database and applies it.
• Context variables: Reuse page, user, and filter context (for example, {{ ctx.user.id }}) in queries and chart configuration.
• Filters and linkage: Page‑level filter blocks collect unified conditions, automatically merge into chart queries, and refresh linked charts.
• Interaction events: Register events via chart.on to enable highlight, navigation, and drill‑down.

#Installation

Data visualization is a built‑in NocoBase plugin; it works out of the box with no separate installation required.
