#Interface Builder

#WYSIWYG

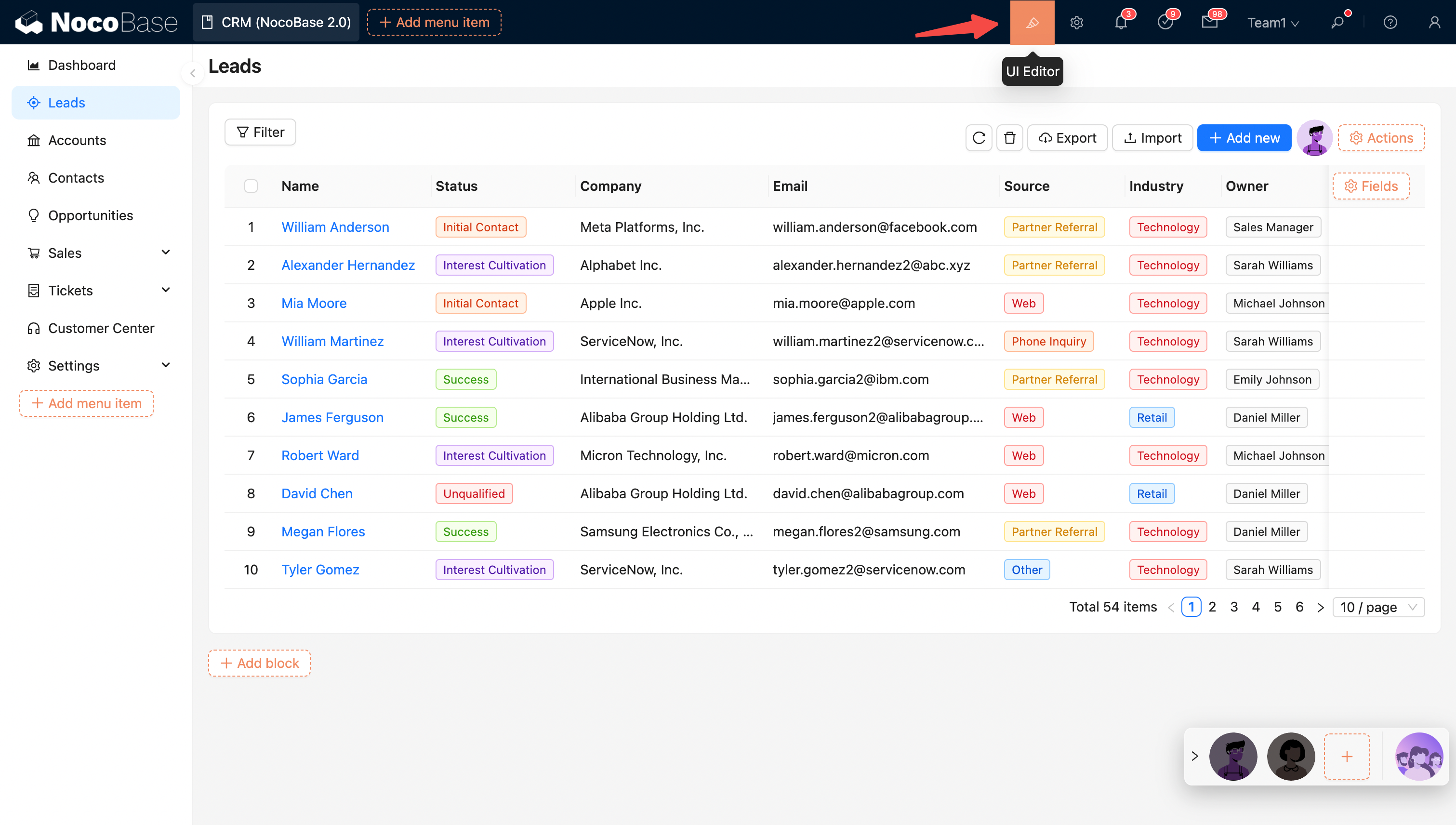

NocoBase uses a WYSIWYG interface configuration mode. Click the Configure Interface button to switch between Edit mode and View mode.

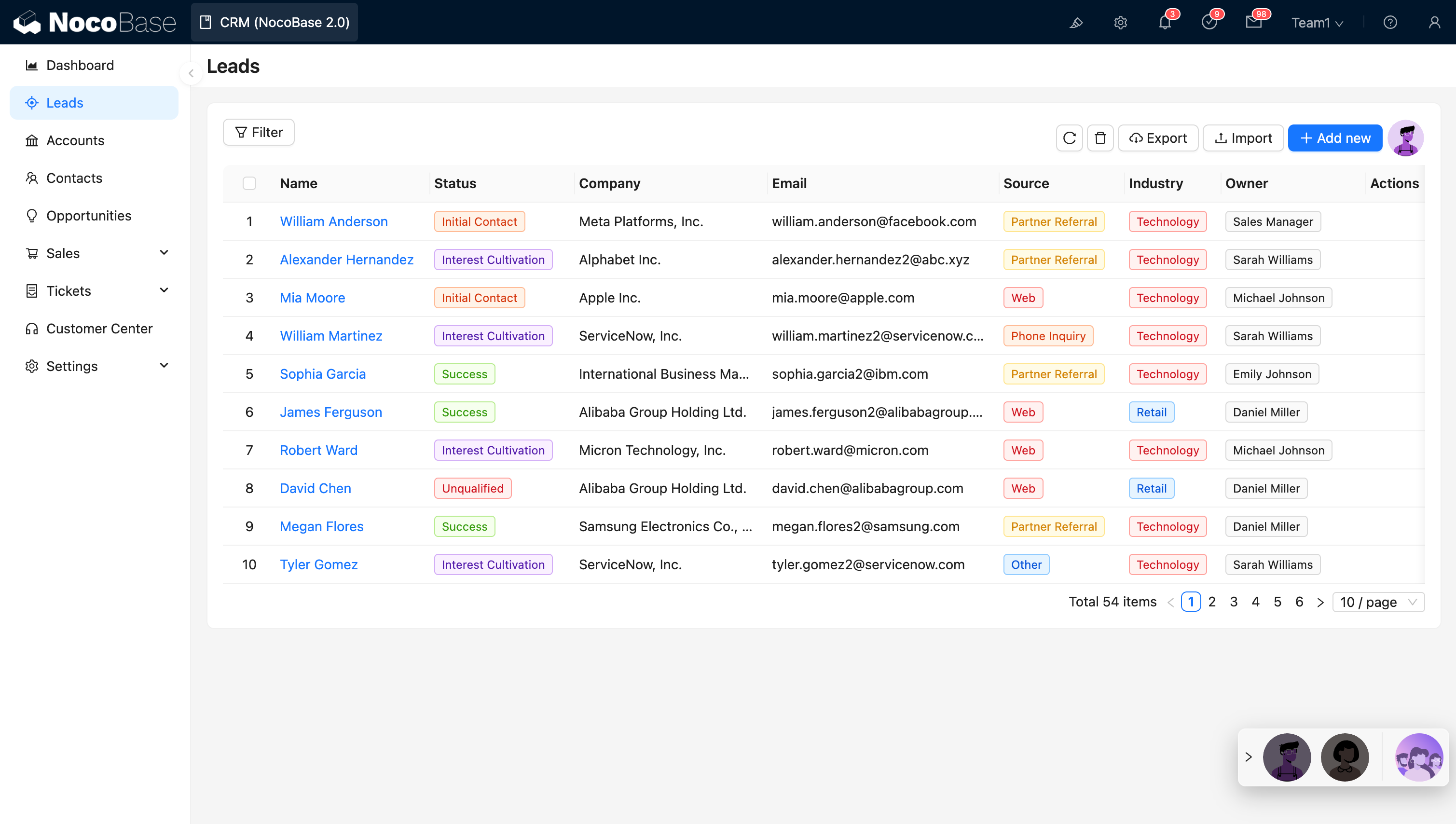

View mode:

Edit mode:

#Layout Template

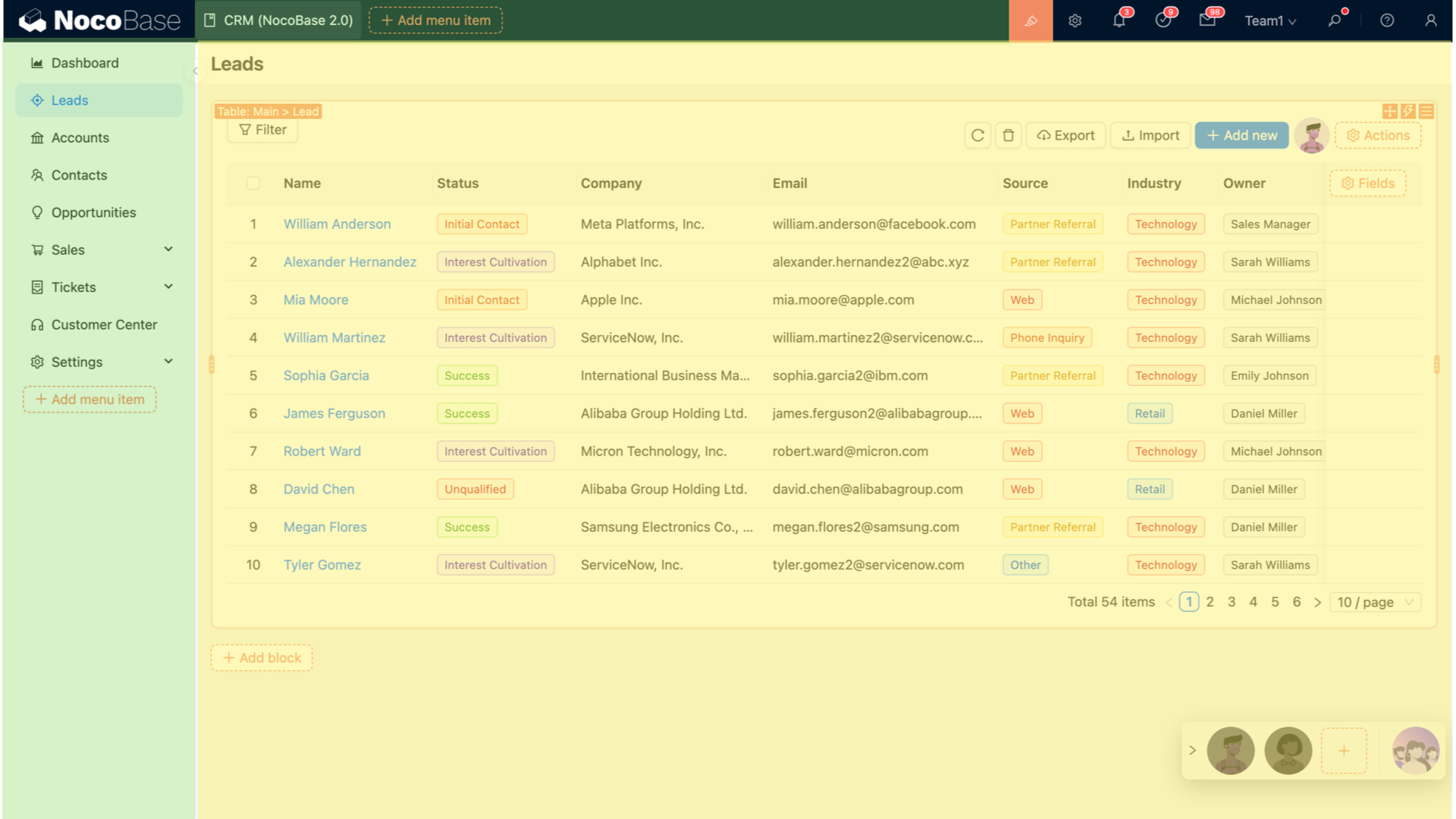

NocoBase has a built-in layout template. The top and left are navigation areas, and the right is the content area.

#Configuration Options

After entering Edit mode, orange configurable items will appear on the interface. Usually, the entry point for the configuration options of each configurable element is located in its upper right corner. Almost all elements can be configured in real-time on the interface to view the effects. Here are a few examples:

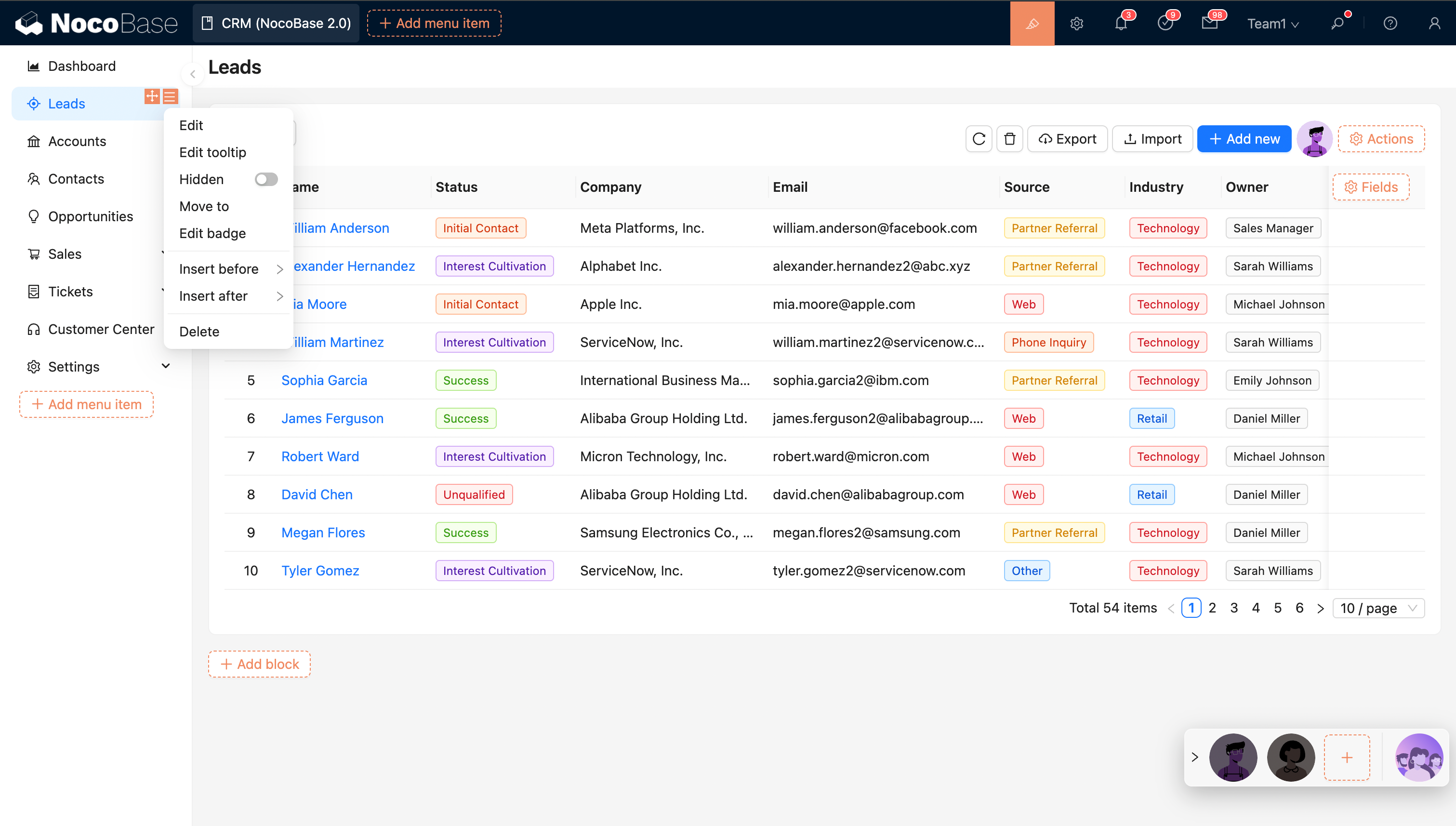

Menu configuration options:

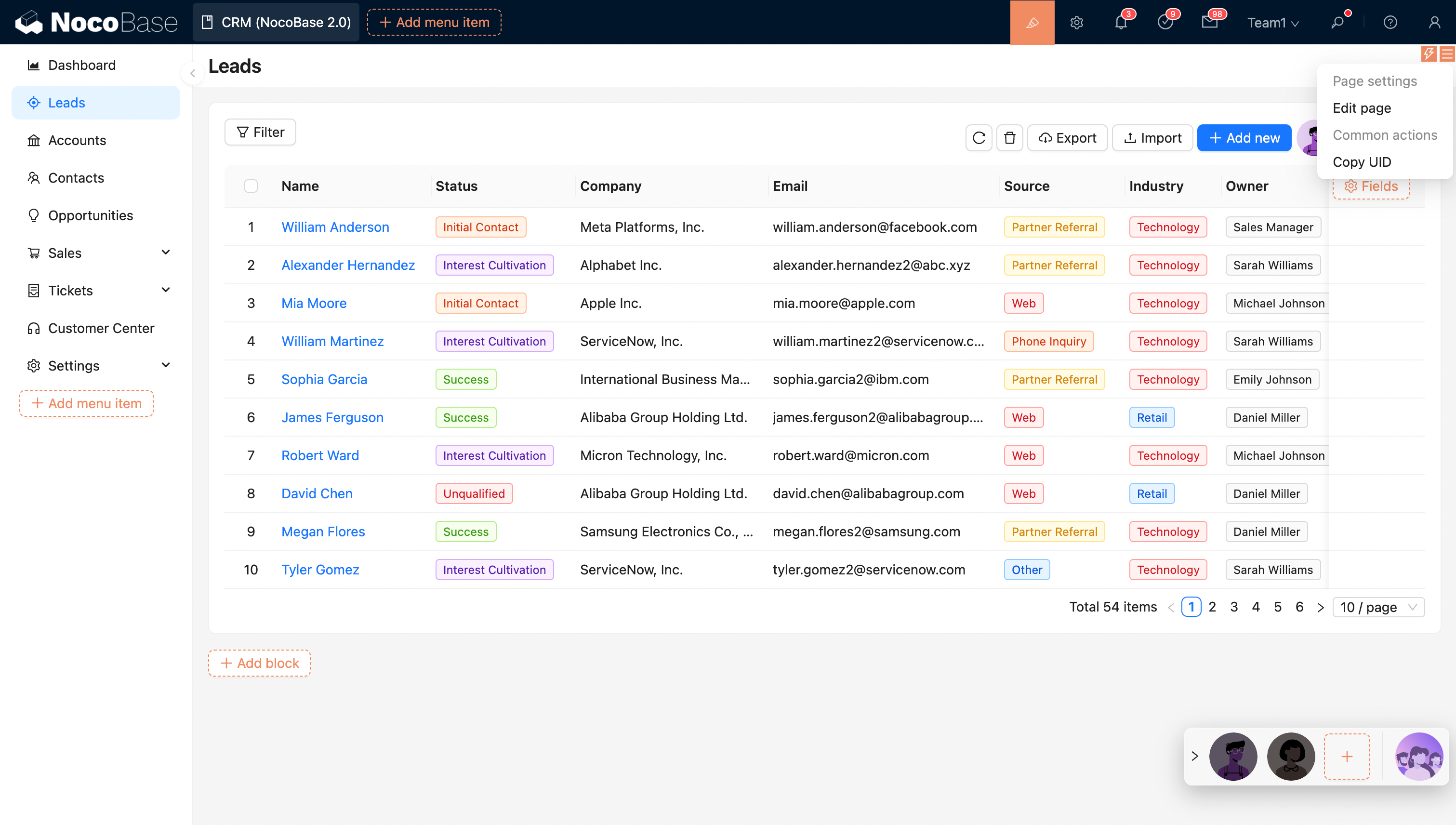

Page configuration options:

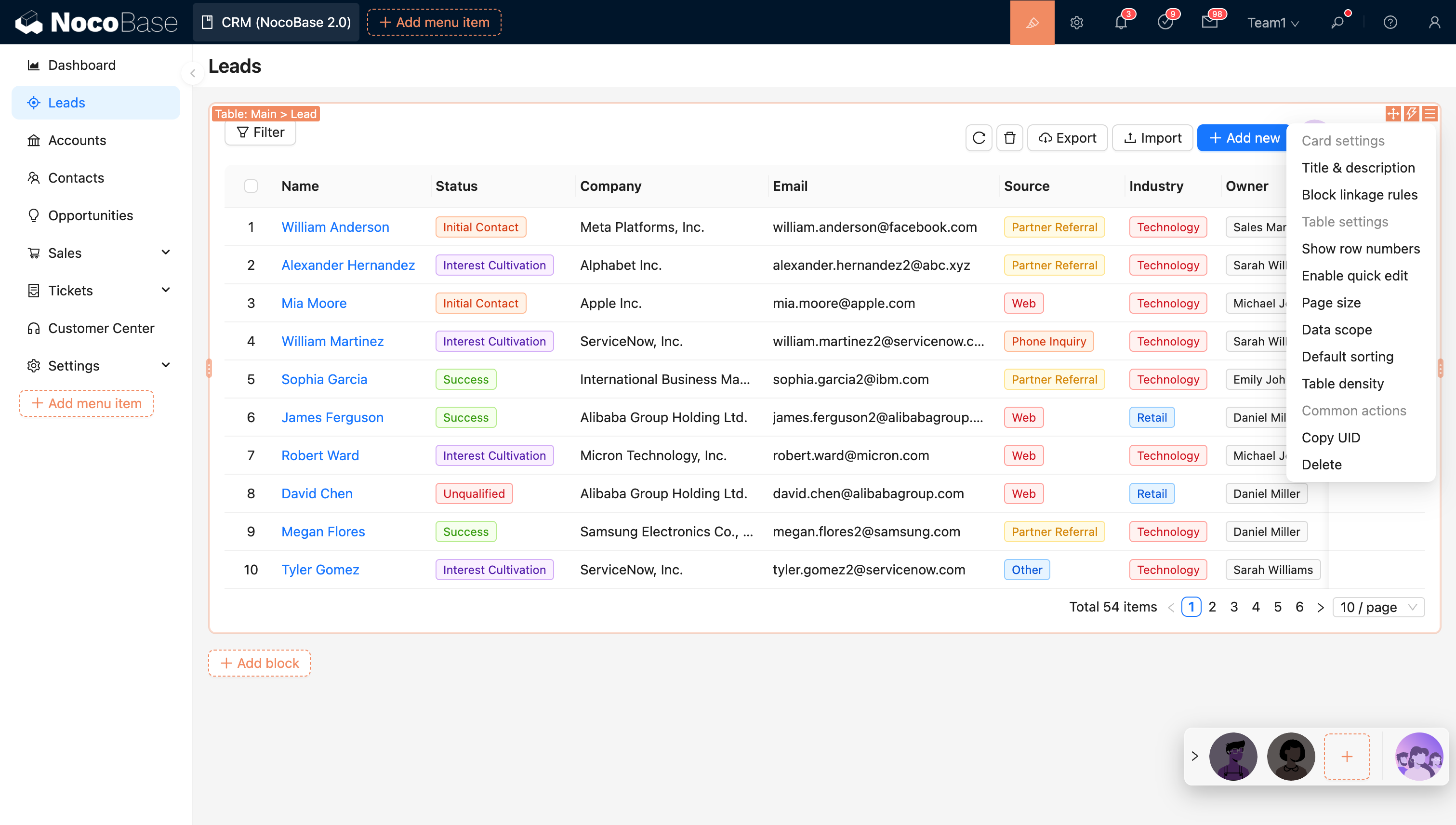

Block configuration options:

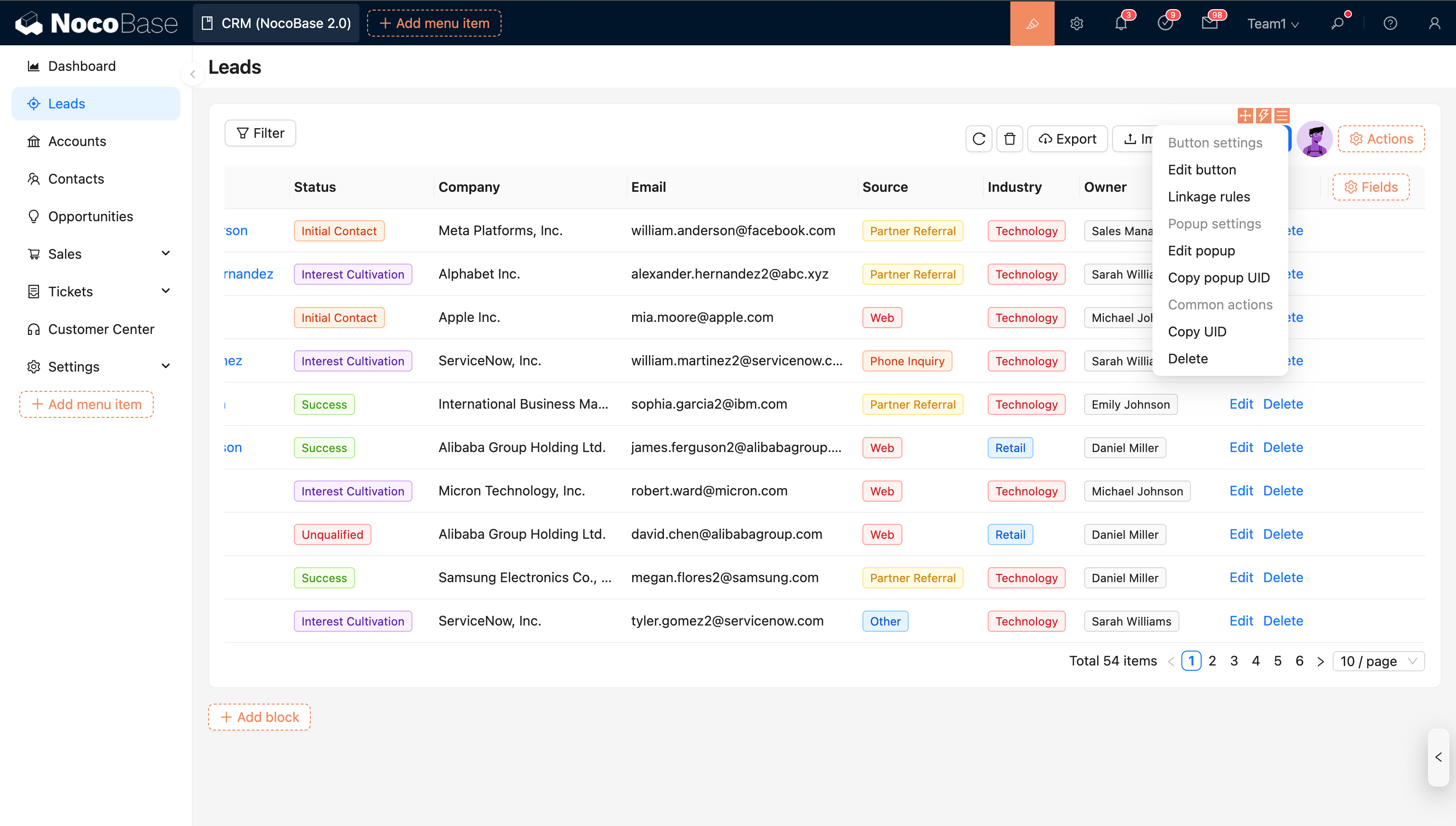

Action configuration options:

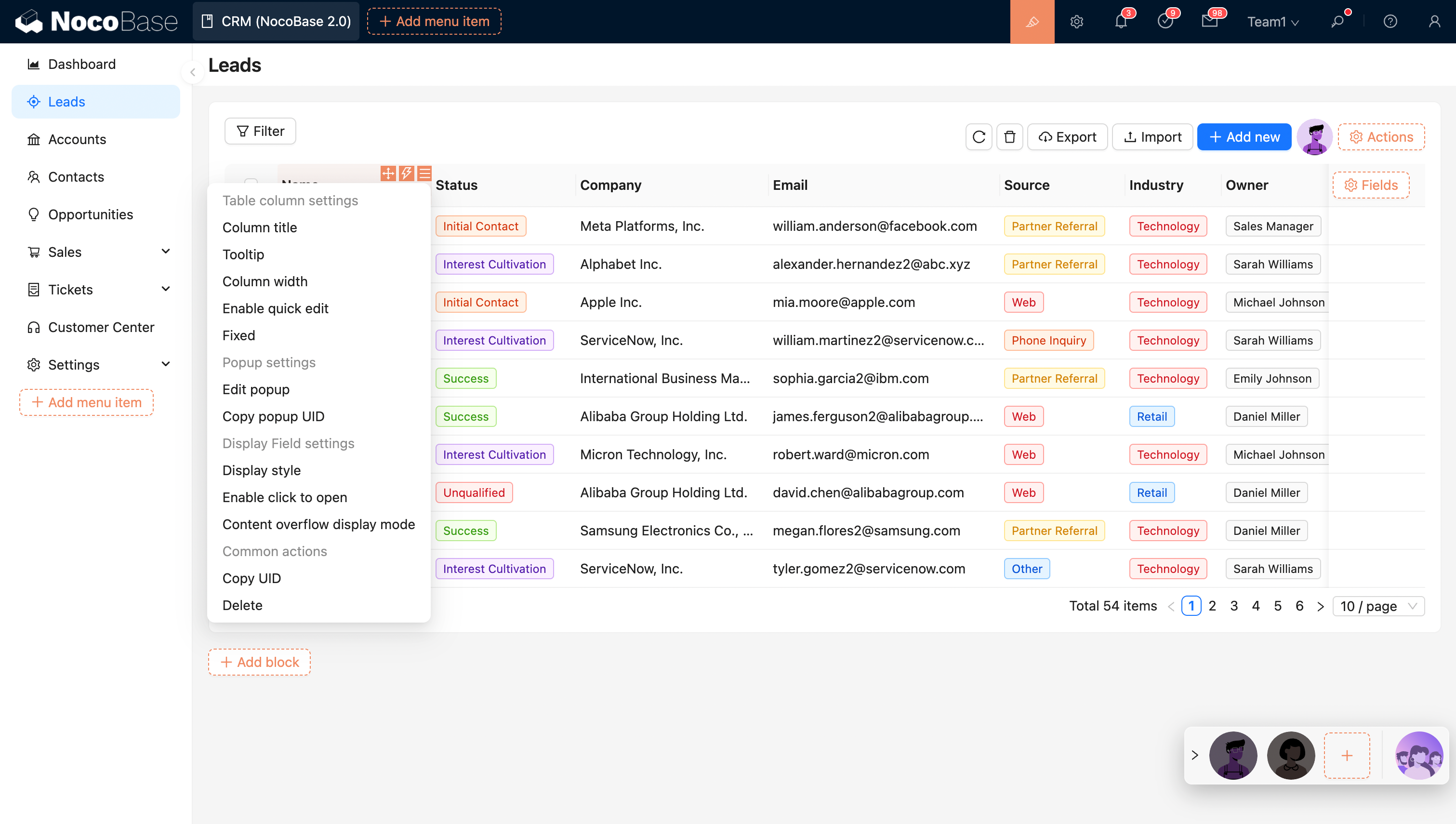

Table column configuration options:
