#List Block

#Introduction

The List block displays data in a list format, suitable for data display scenarios such as task lists, news, and product information.

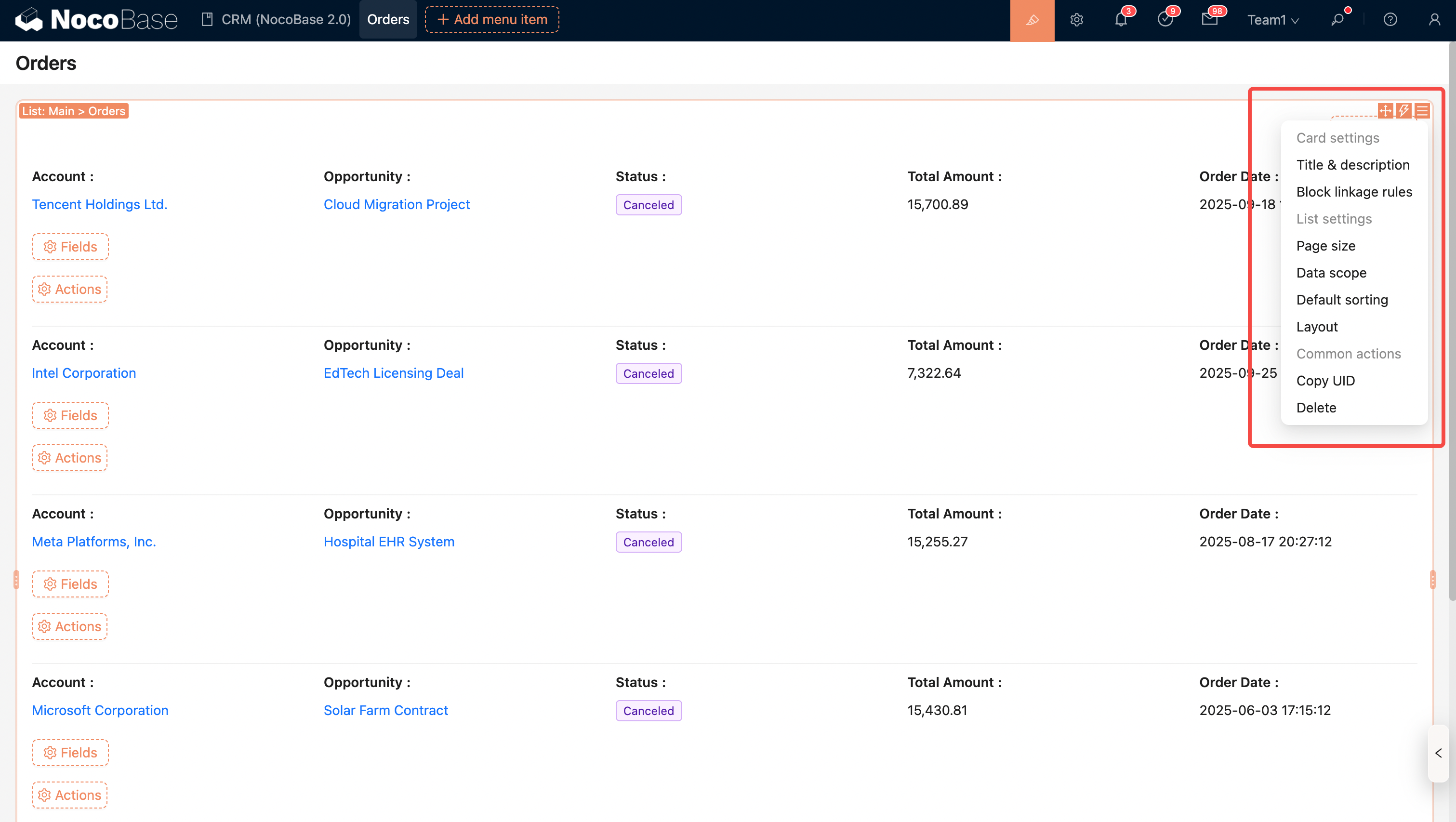

#Block Configuration

20251023202835

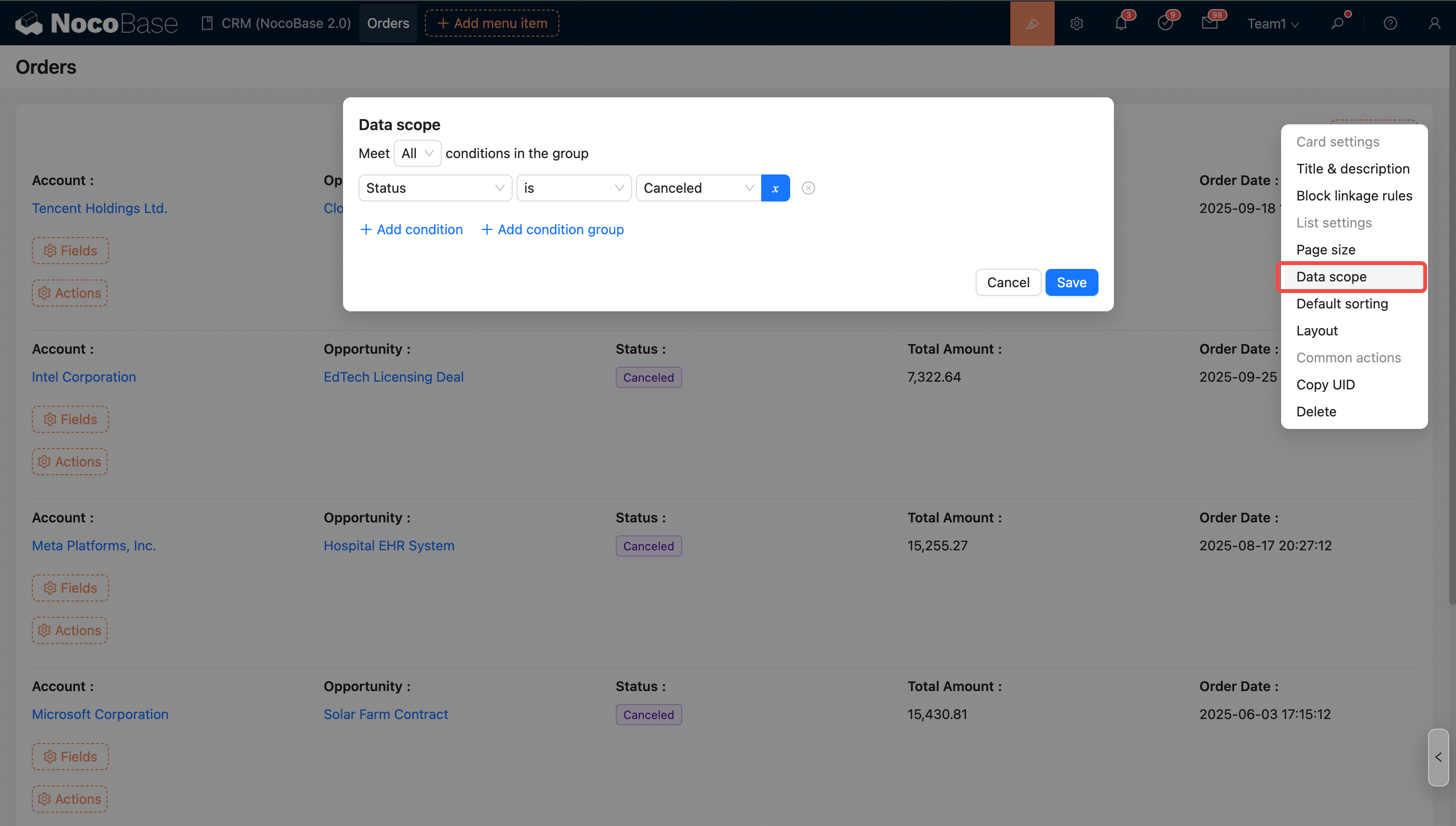

#Set Data Scope

As shown: Filter for orders with a "Cancelled" status.

20251023202927

For more details, see Set Data Scope

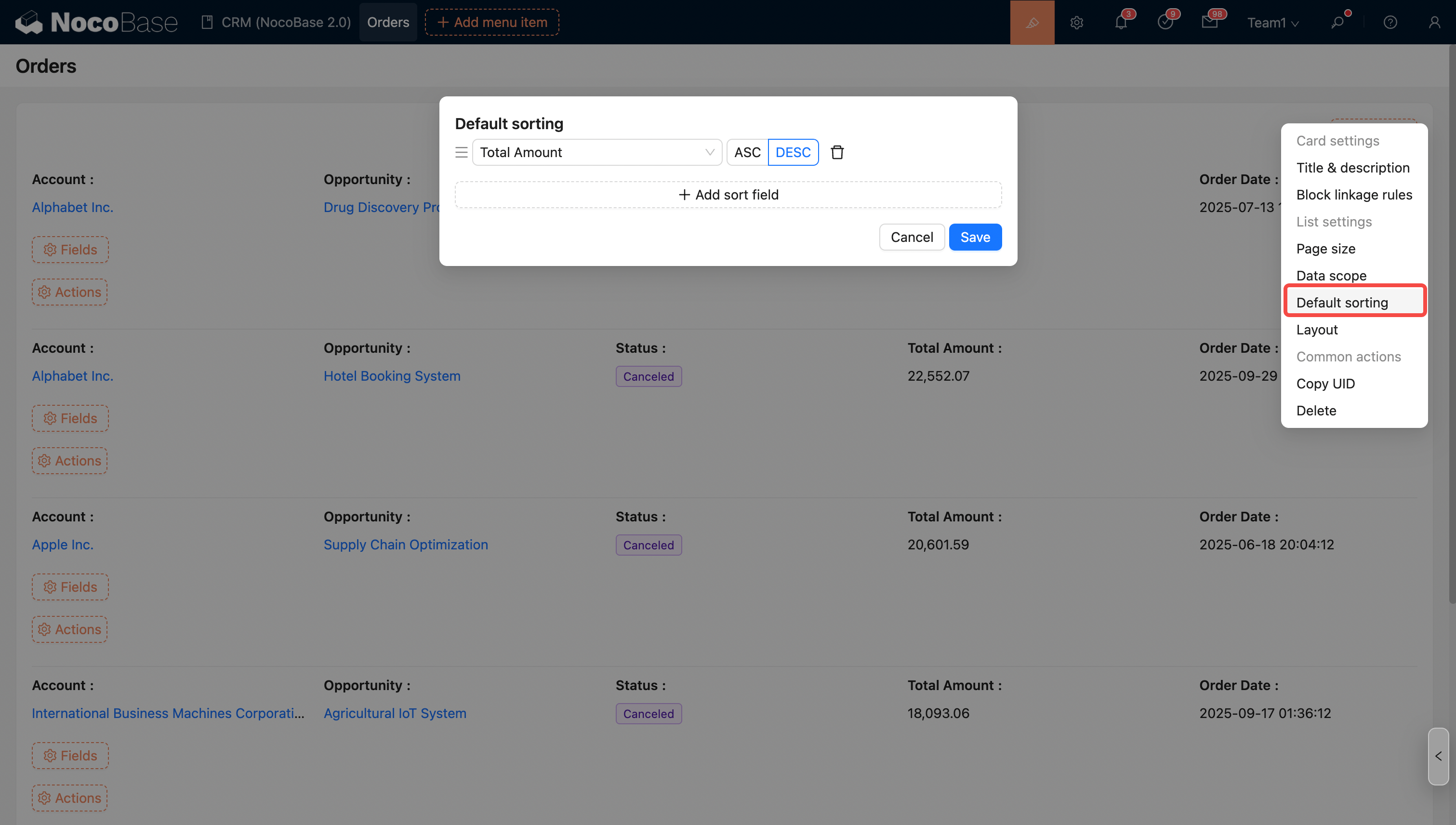

#Set Sorting Rules

As shown: Sort by order amount in descending order.

20251023203022

For more details, see Set Sorting Rules

#Configure Fields

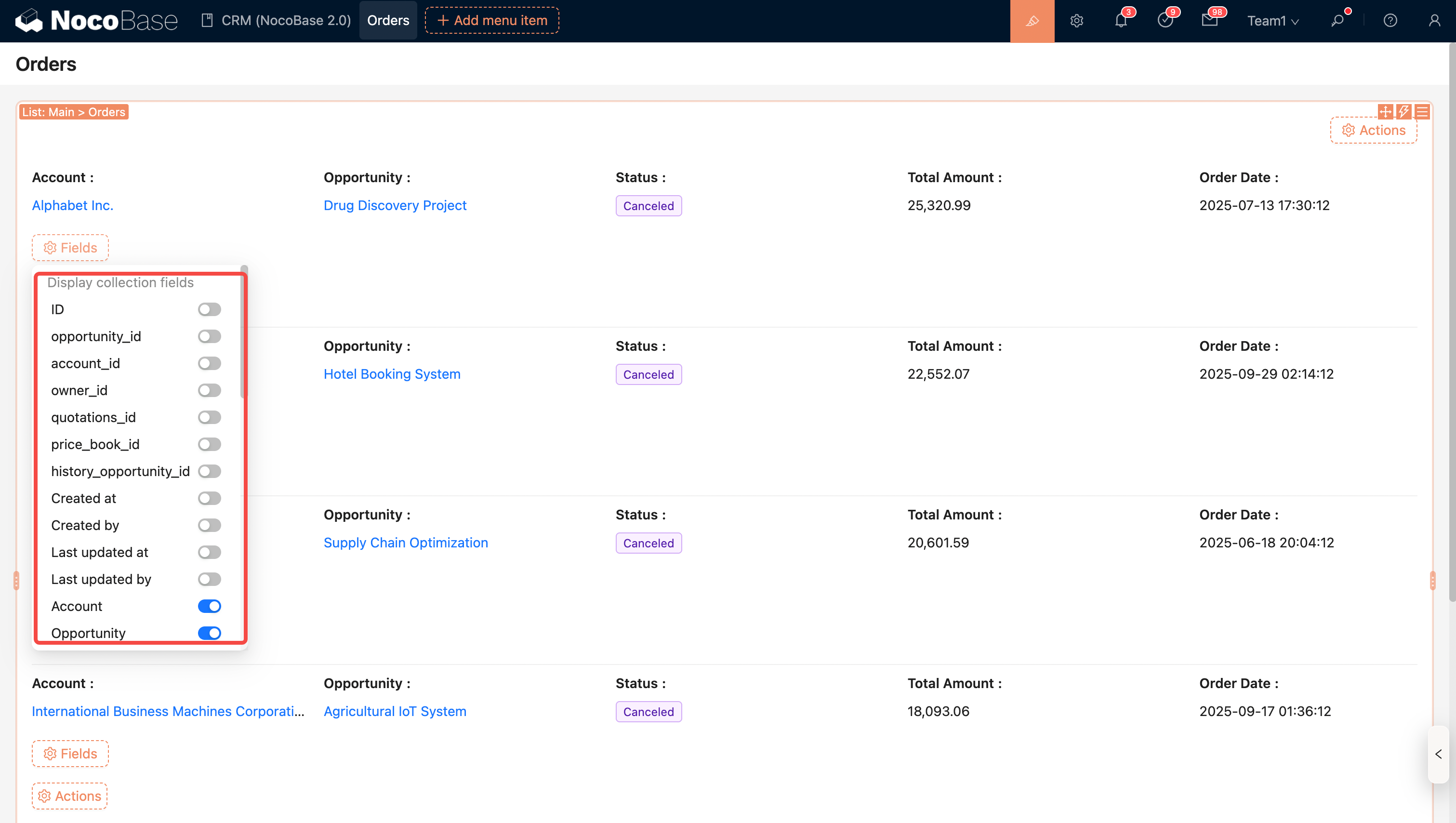

#Fields from this Collection

Note: Fields from inherited collections (i.e., parent collections) are automatically merged and displayed in the current field list.

20251023203103

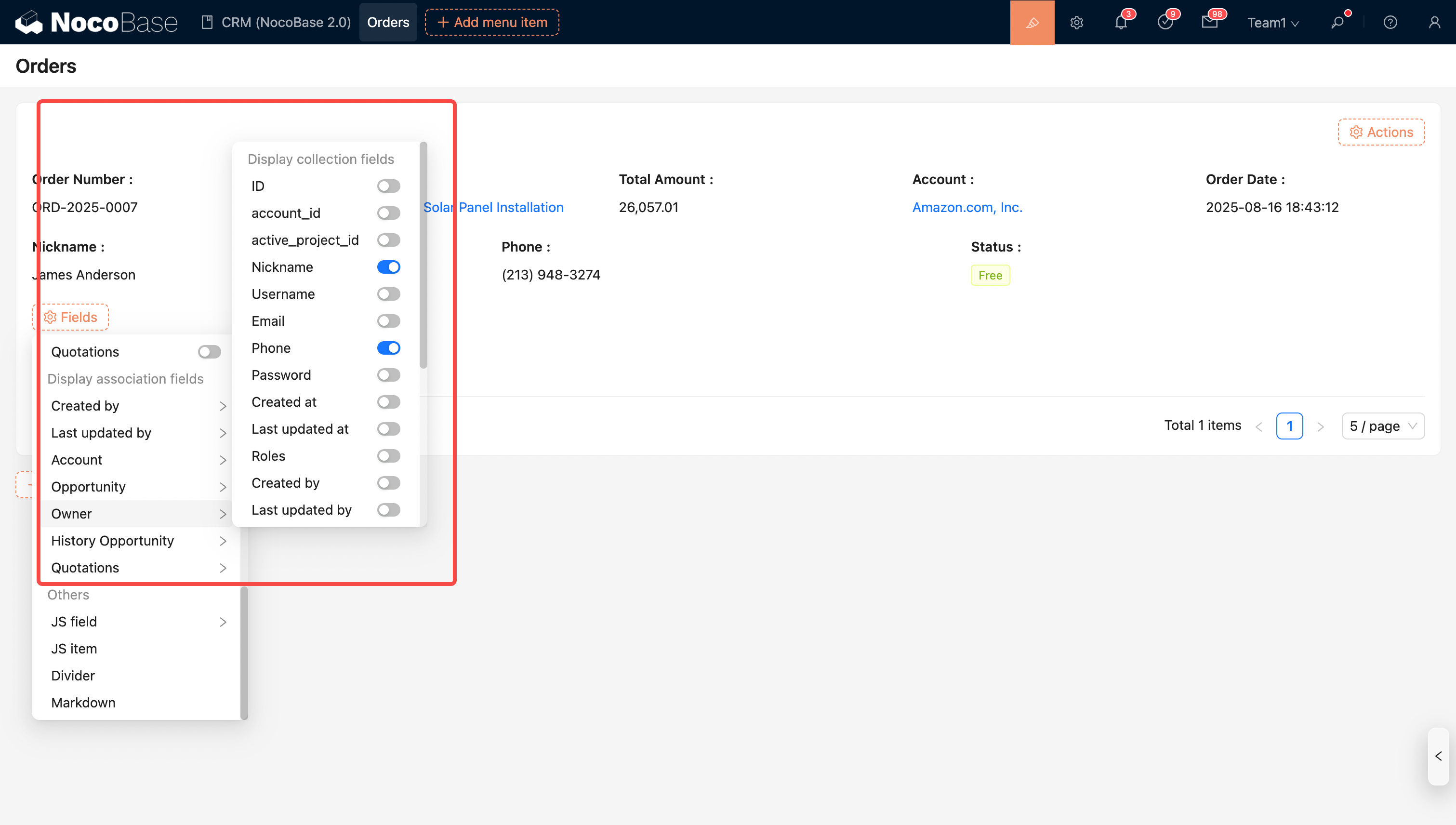

#Fields from Associated Collections

Note: Fields from associated collections can be displayed (currently only to-one relationships are supported).

20251023203611

For list field configuration, see Details Field

#Configure Actions

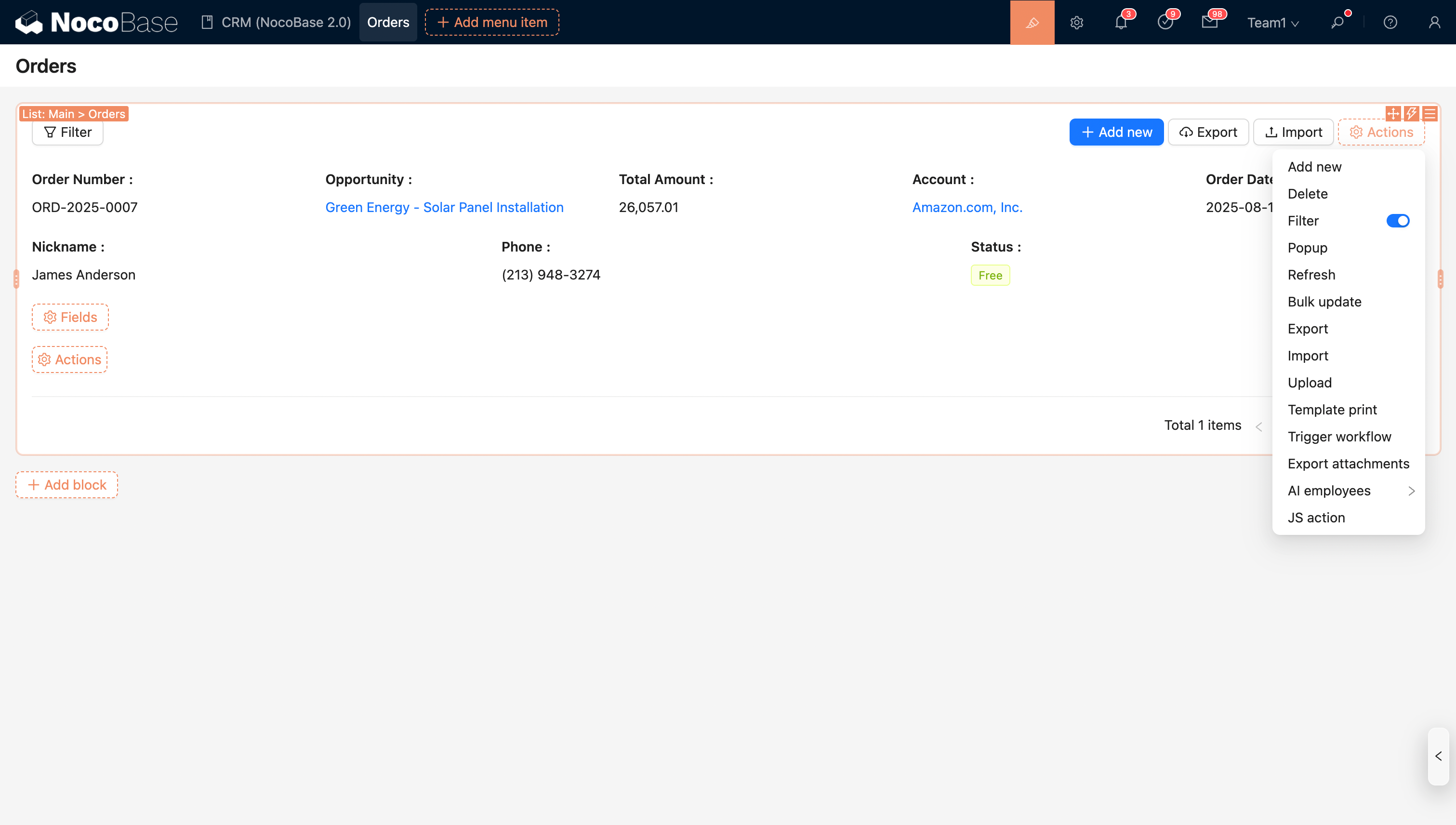

#Global Actions

20251023203918

  • Filter
  • Add
  • Delete
  • Refresh
  • Import
  • Export
  • Template Print
  • Bulk Update
  • Export Attachments
  • Trigger Workflow
  • JS Action
  • AI Employee

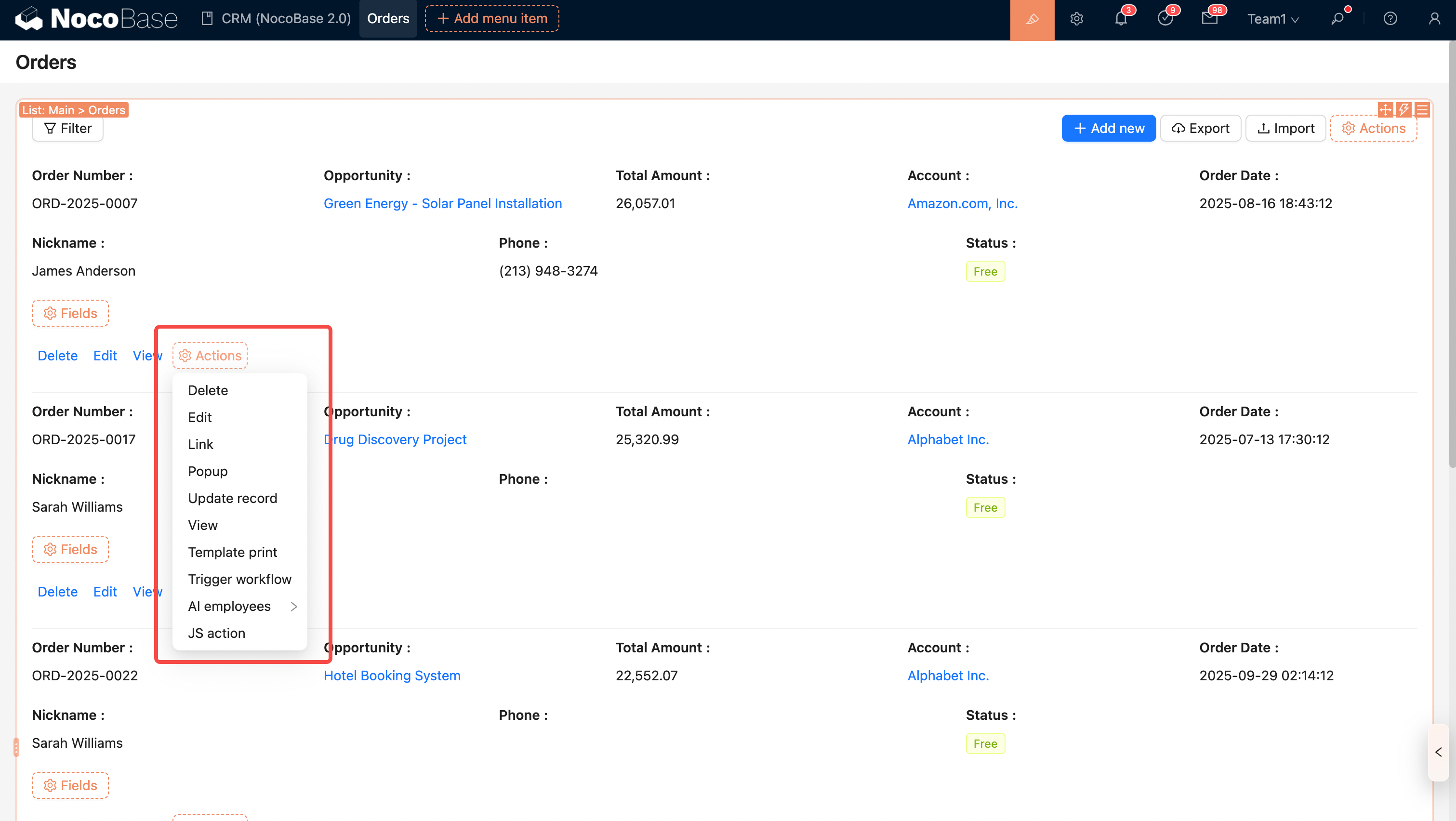

#Row Actions

20251023204329

  • Edit
  • Delete
  • Link
  • Pop-up
  • Update Record
  • Template Print
  • Trigger Workflow
  • JS Action
  • AI Employee
