#Grid Card

#Introduction

The Grid Card block displays summary information of data records in a card format. It supports configuring the number of columns for different screen sizes to ensure a user-friendly display on various devices.

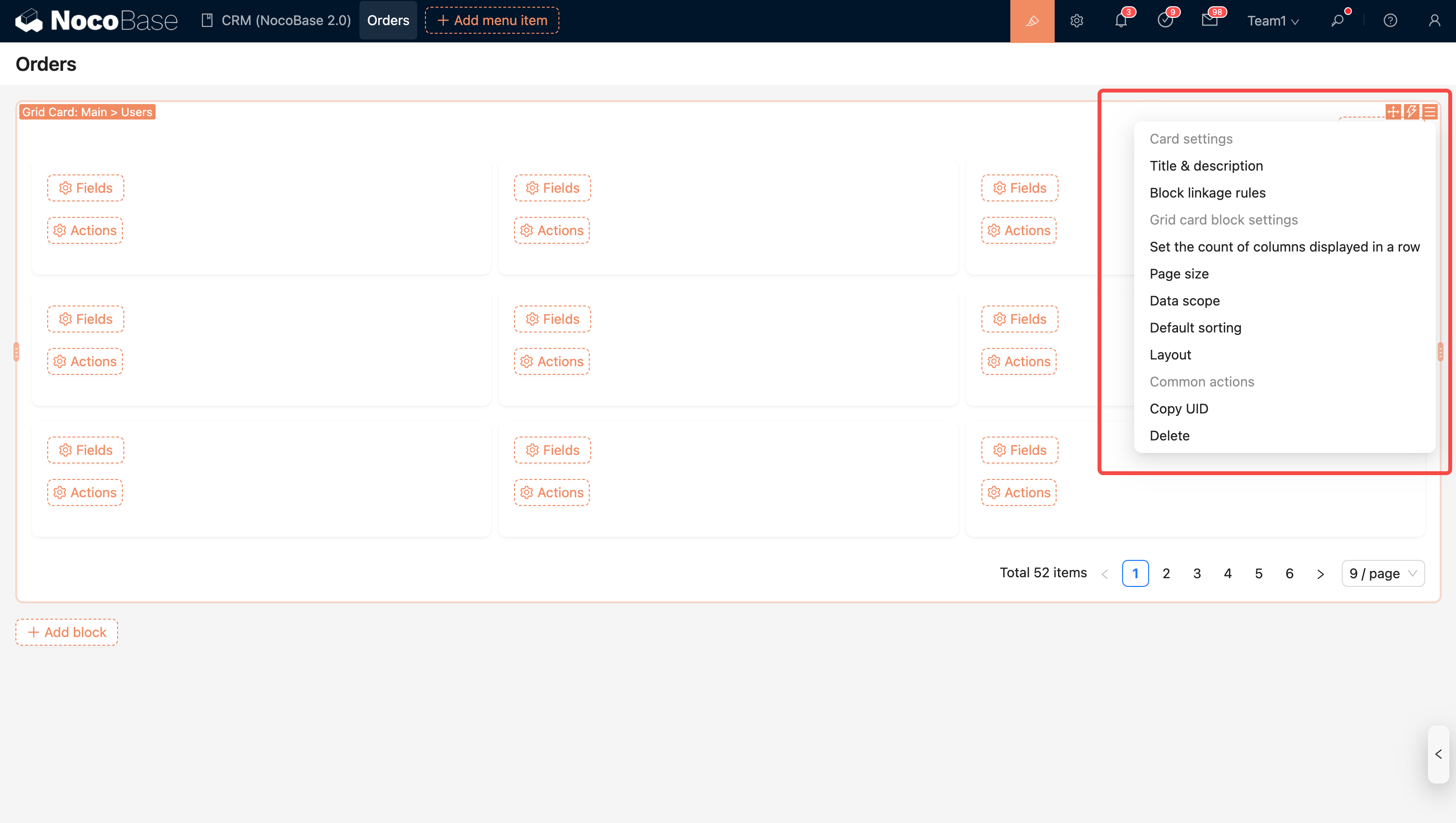

#Block Settings

20251023205037

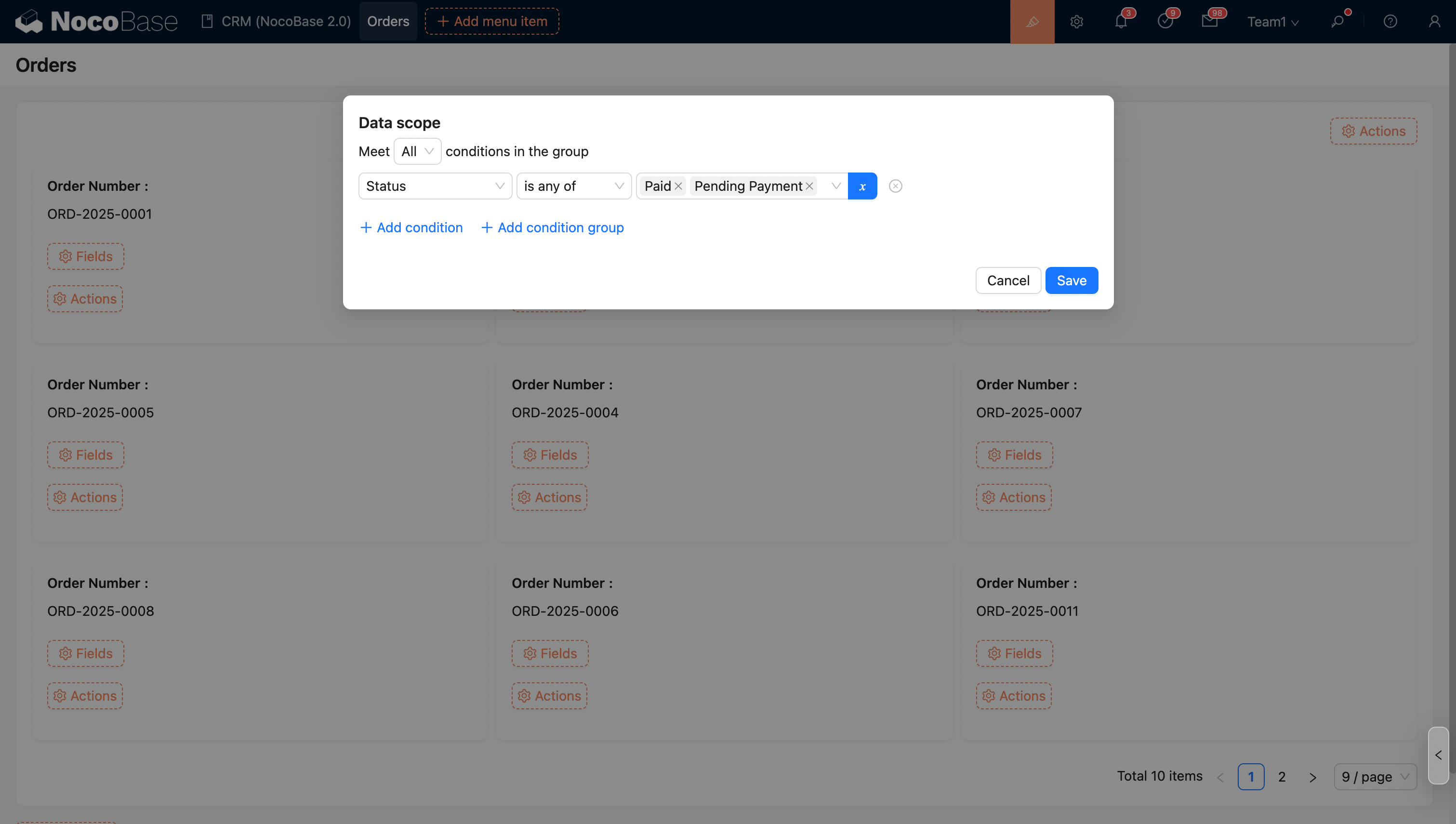

#Data Scope

20251023205425

For more information, see Set data scope

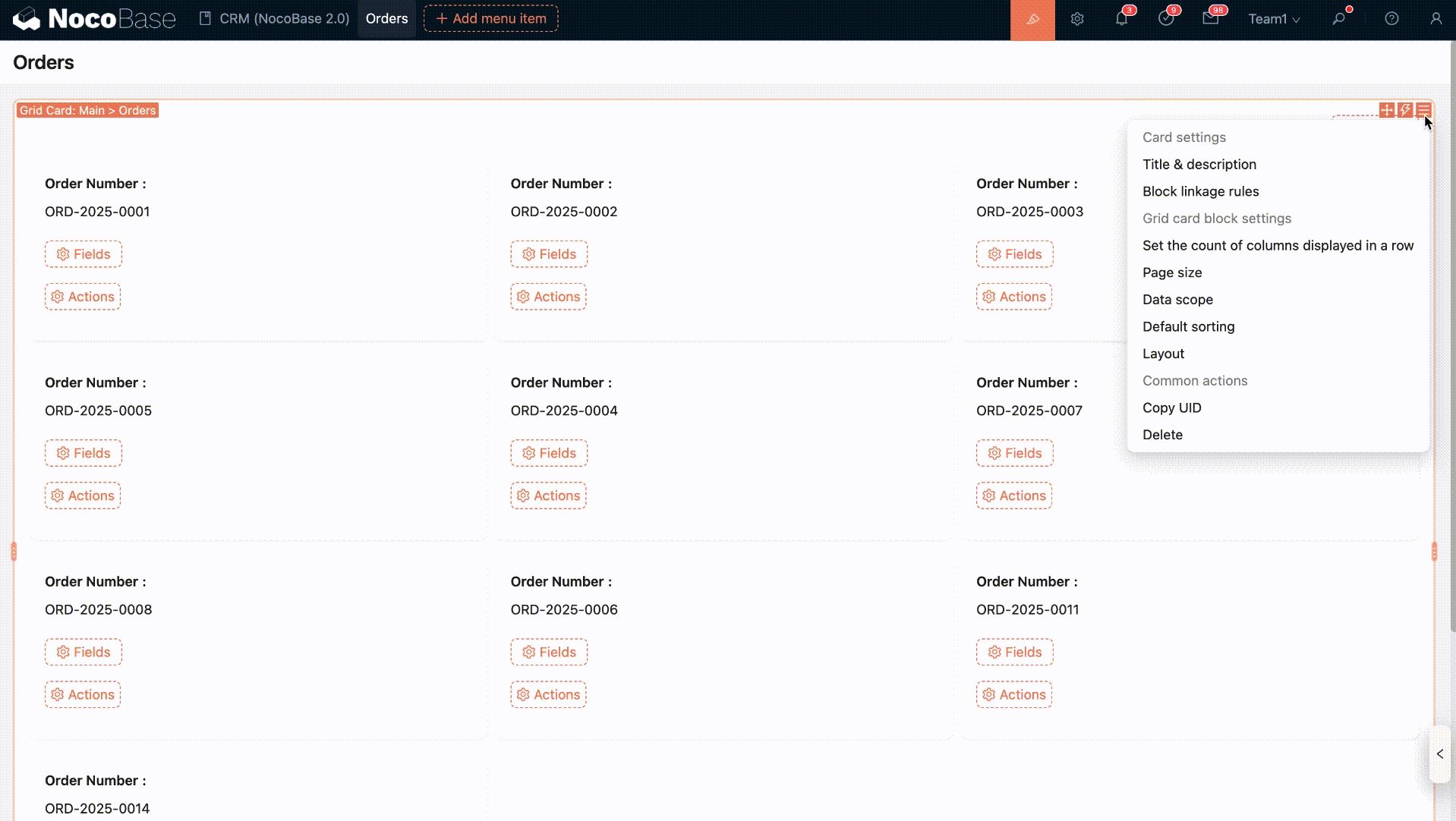

#Set the number of columns per row

20251023210137

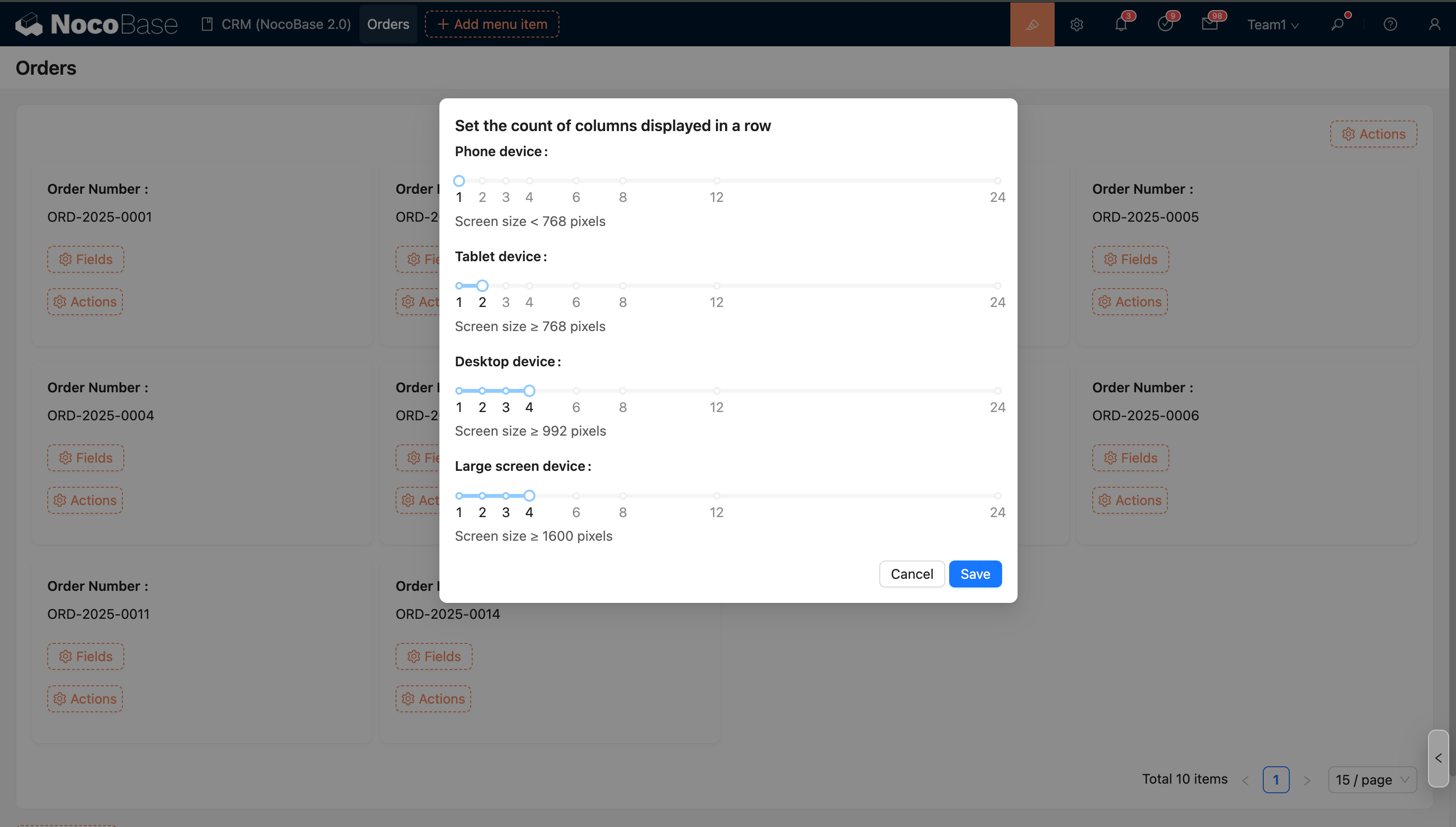

Supports configuring the number of columns for different screen sizes.

20251023210303

#Configure Fields

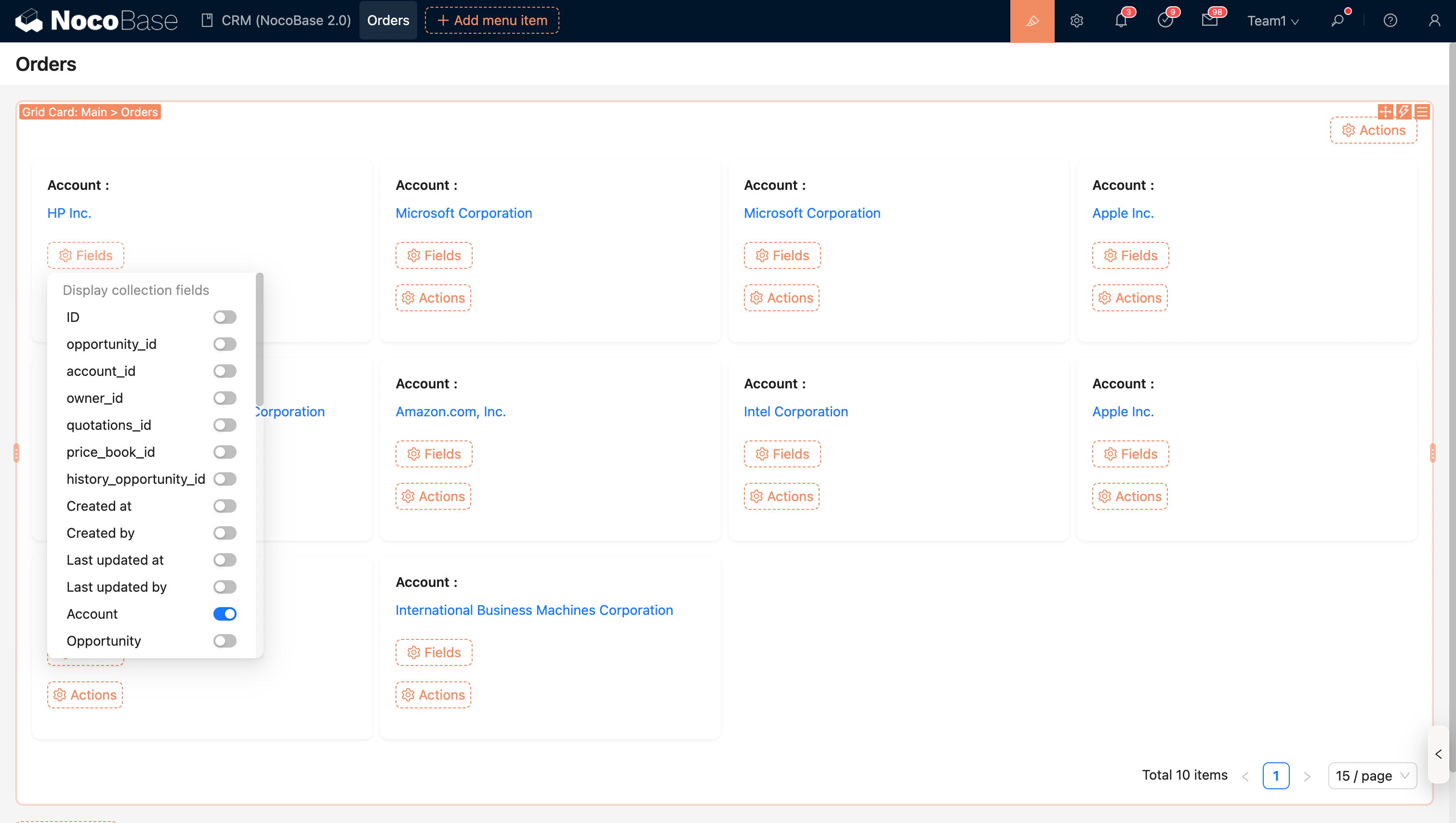

#Fields from this collection

20251023210533

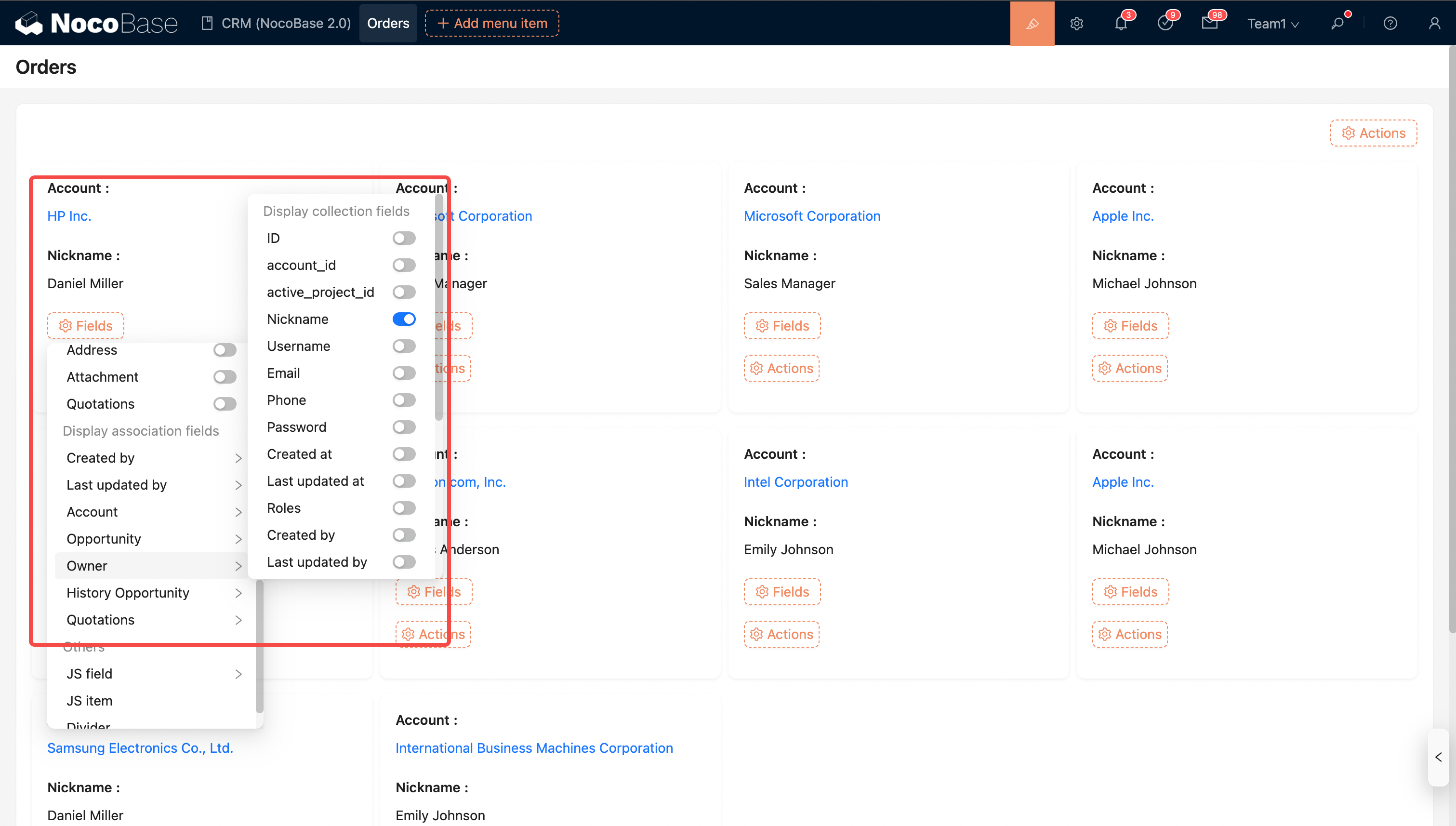

#Fields from associated collections

20251023210629

For Grid Card block field settings, see Details Field

#Configure Actions

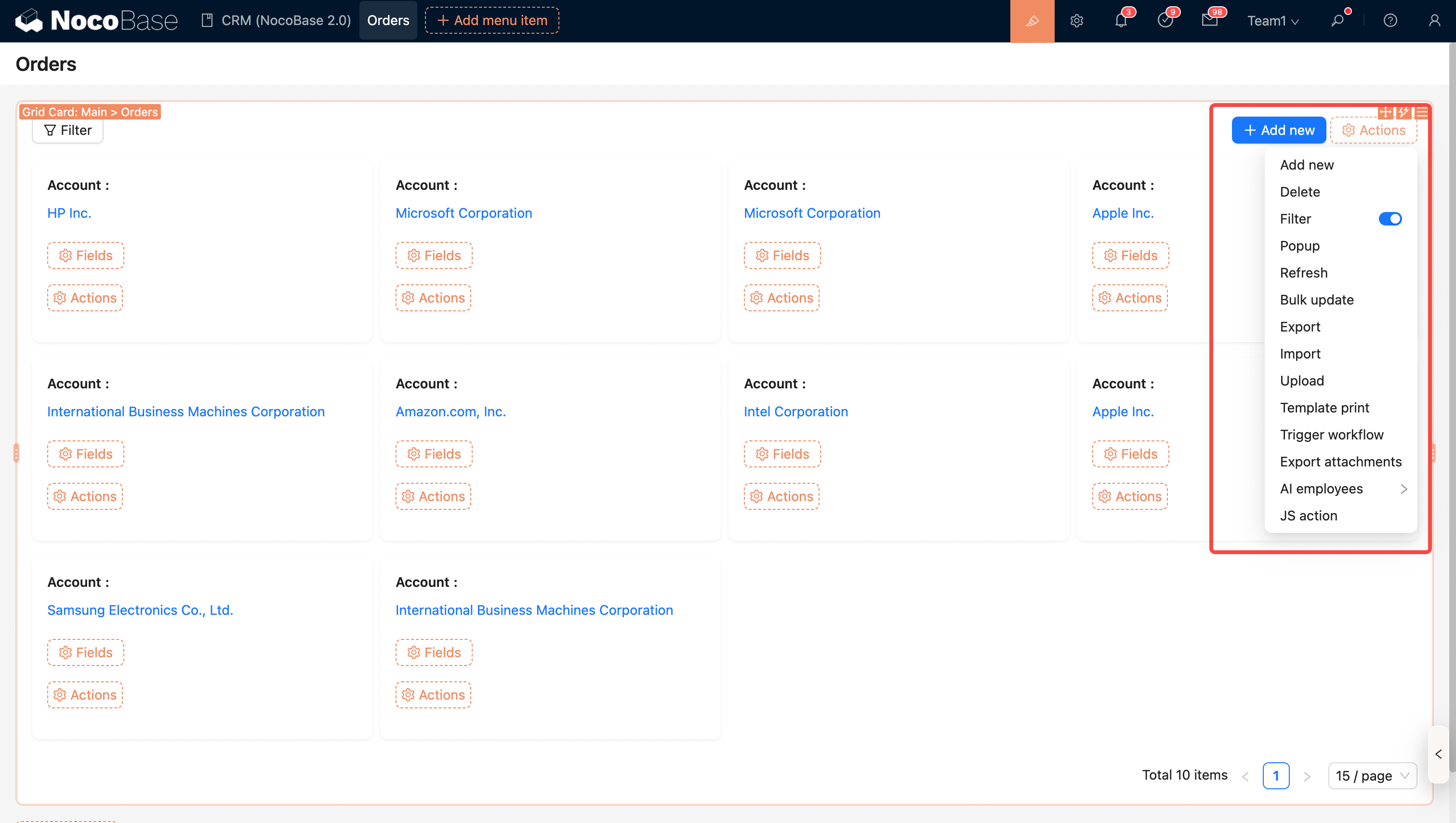

#Global Actions

20251023211330

  • Filter
  • Add new
  • Delete
  • Refresh
  • Import
  • Export
  • Template print
  • Bulk update
  • Export attachments
  • Trigger workflow
  • AI employee
  • JS Action

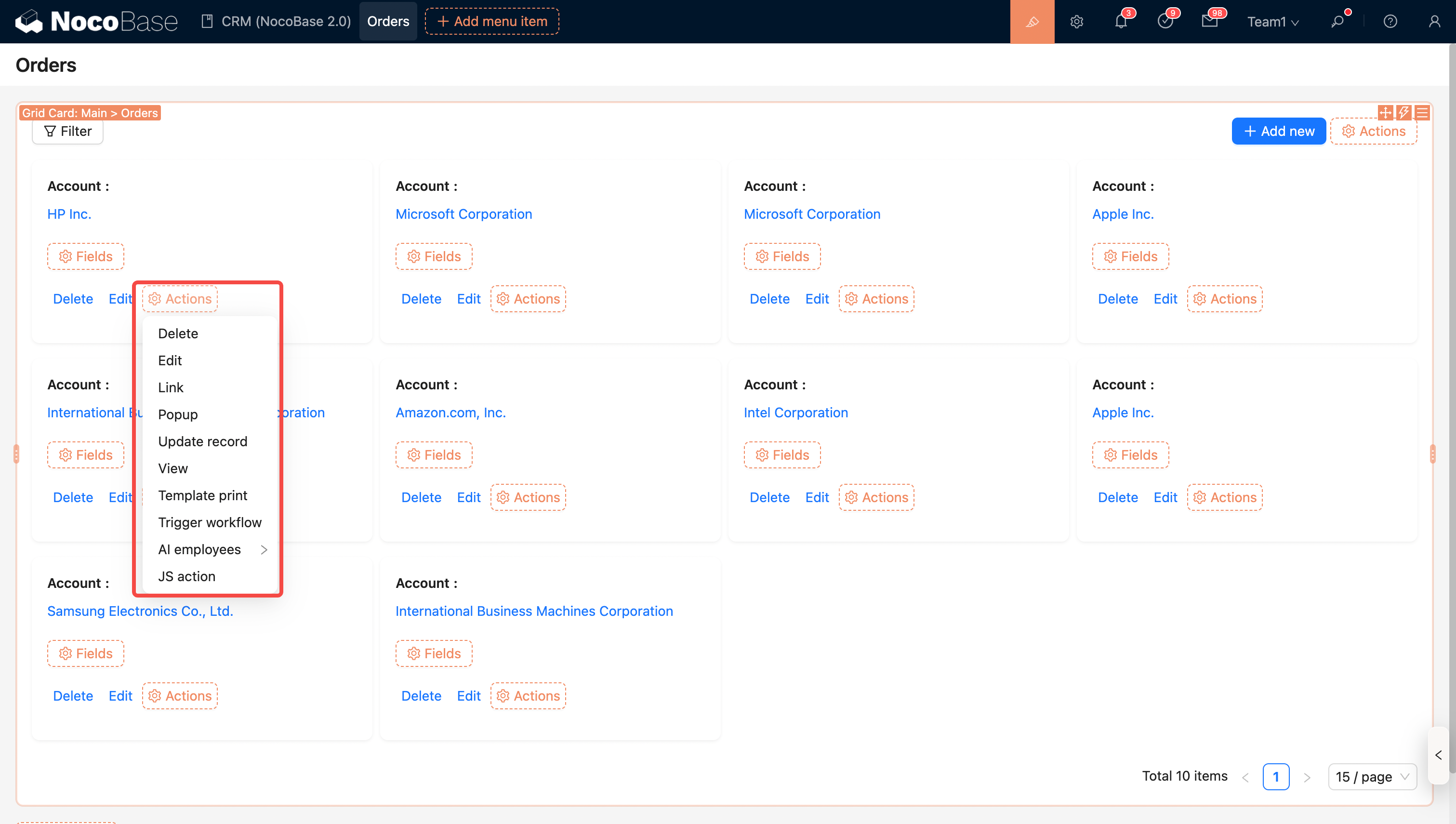

#Row Actions

20251023211054

  • Edit
  • Delete
  • Link
  • Pop-up
  • Update record
  • Template print
  • Trigger workflow
  • AI employee
  • JS Action
