#Sub-table

#Introduction

The sub-table is suitable for handling to-many relationship fields. It supports batch creation and association of new data in the target collection, or selecting and associating existing data.

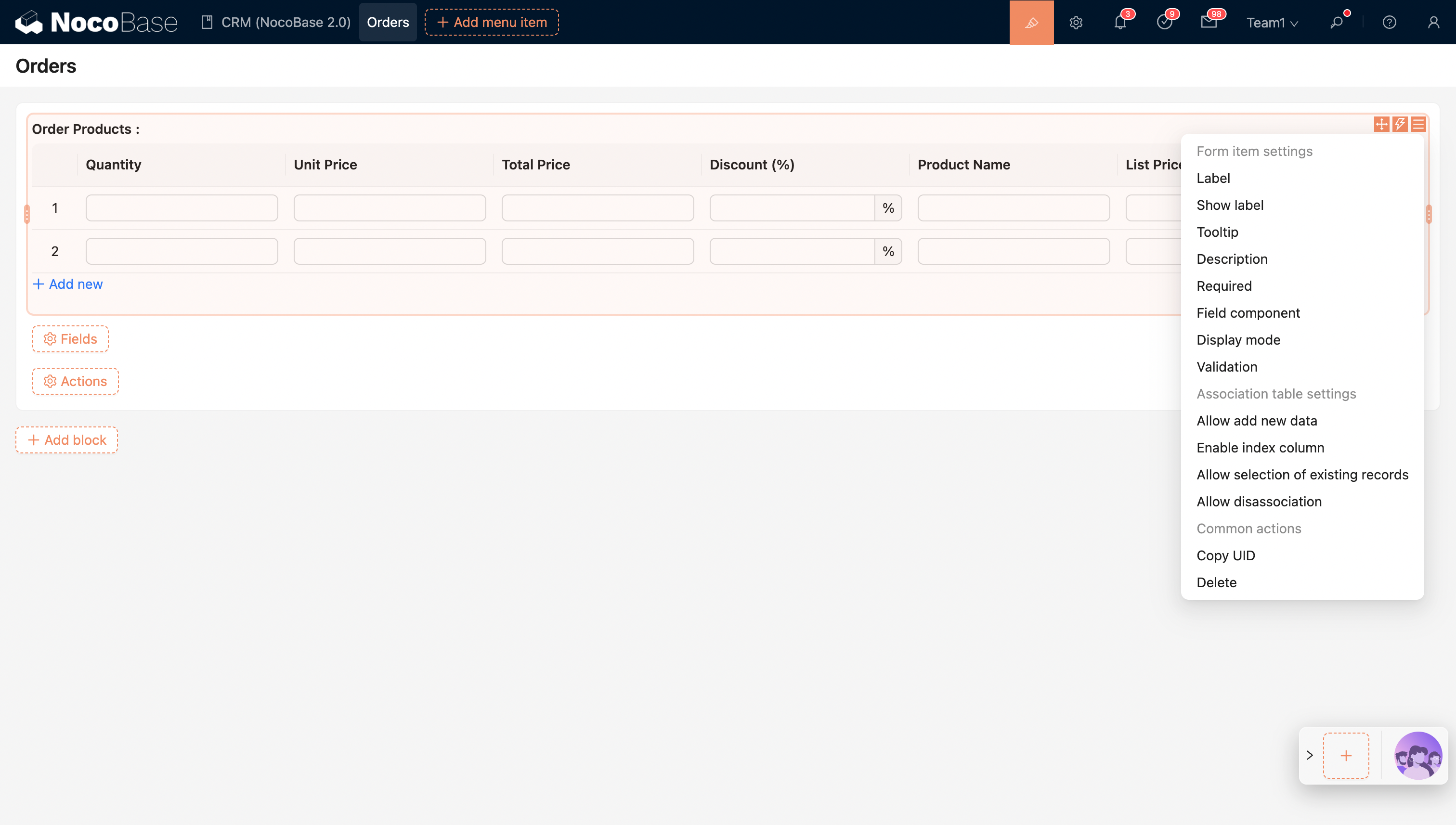

#Usage Instructions

20251027223350

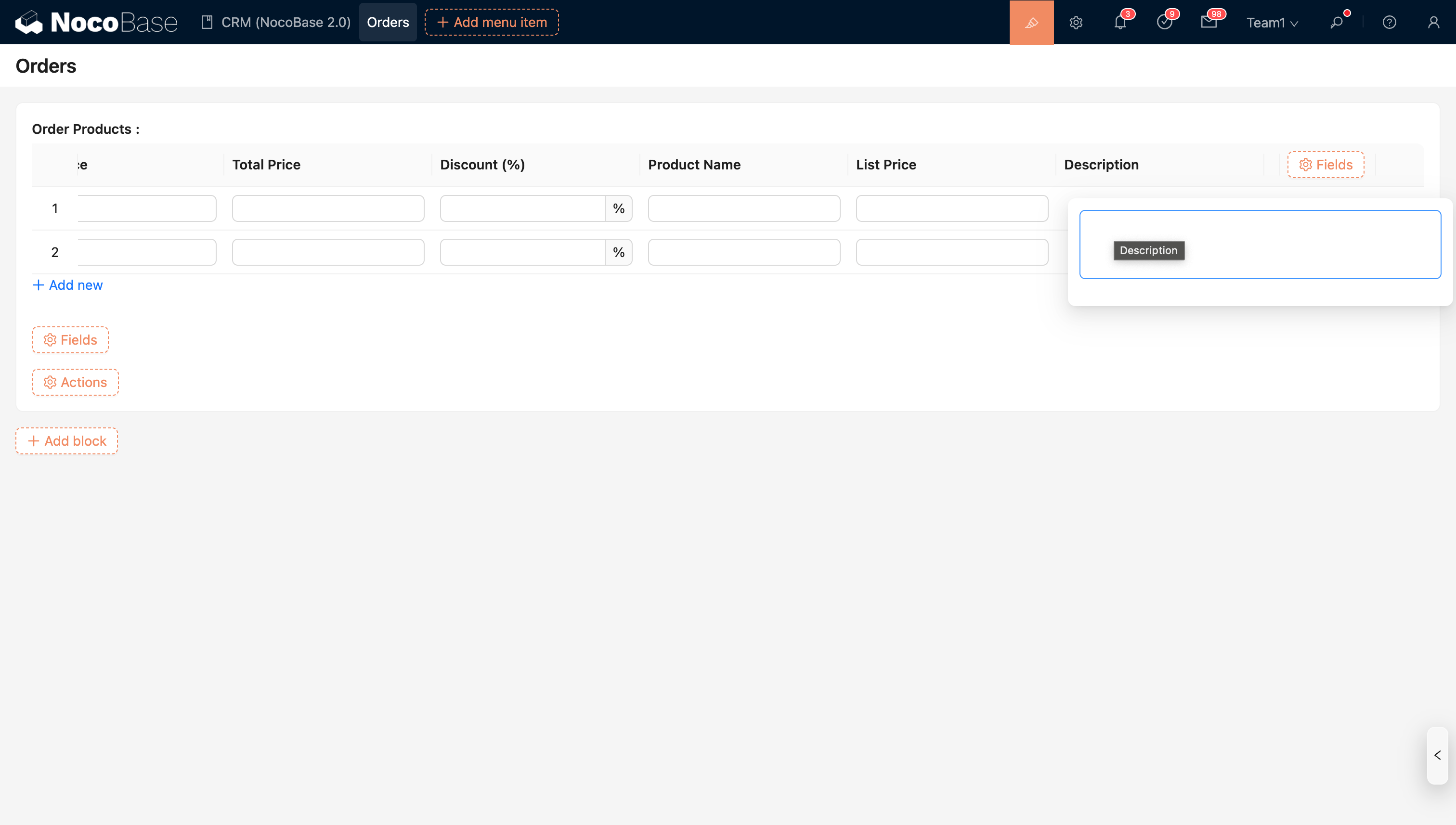

Different types of fields in the sub-table display different field components. Large fields (such as Rich Text, JSON, Long Text) are edited through a pop-up modal.

20251027223426

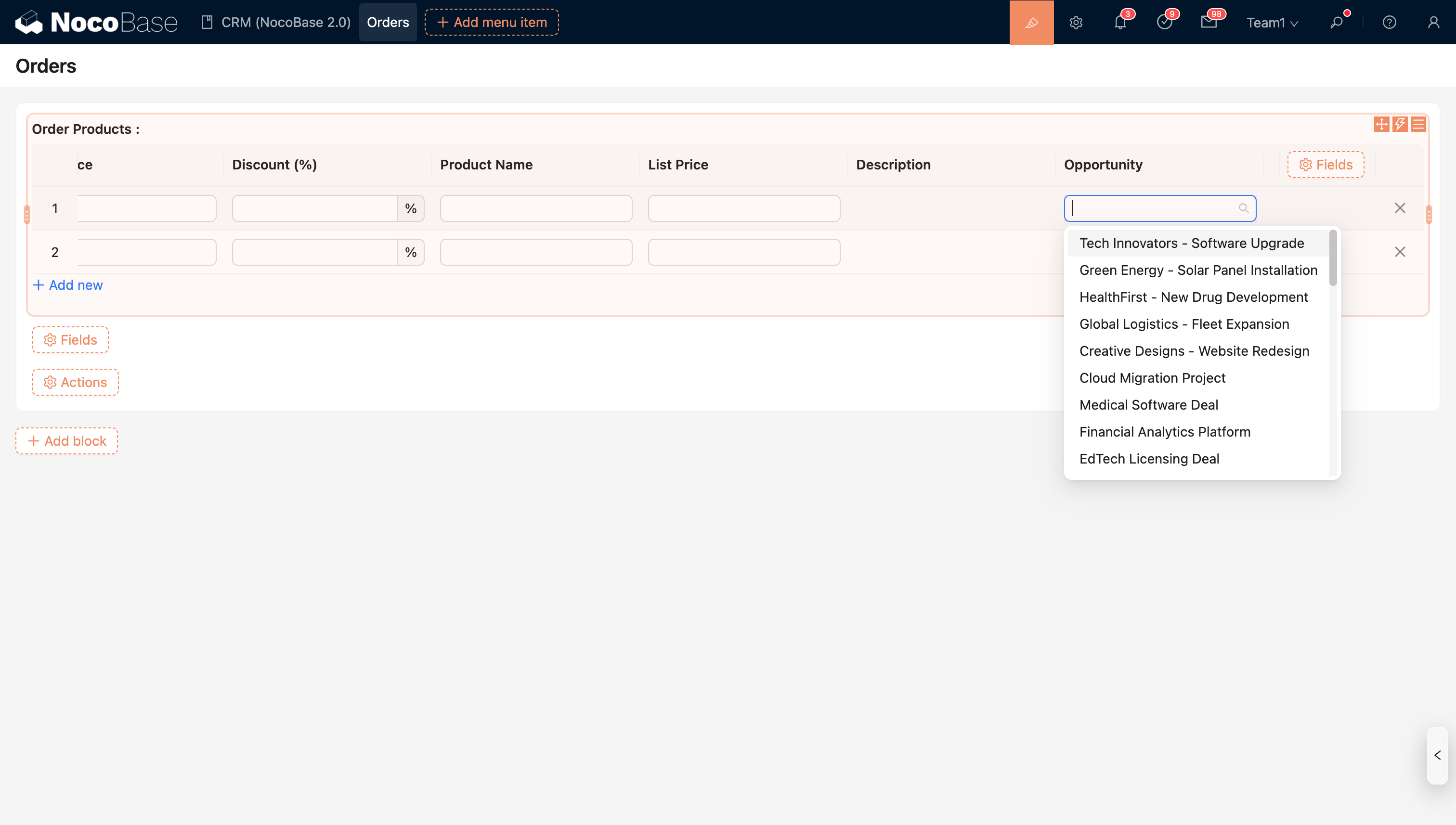

Relationship fields in the sub-table.

Orders (One-to-Many) > Order Products (One-to-One) > Opportunity

20251027223530

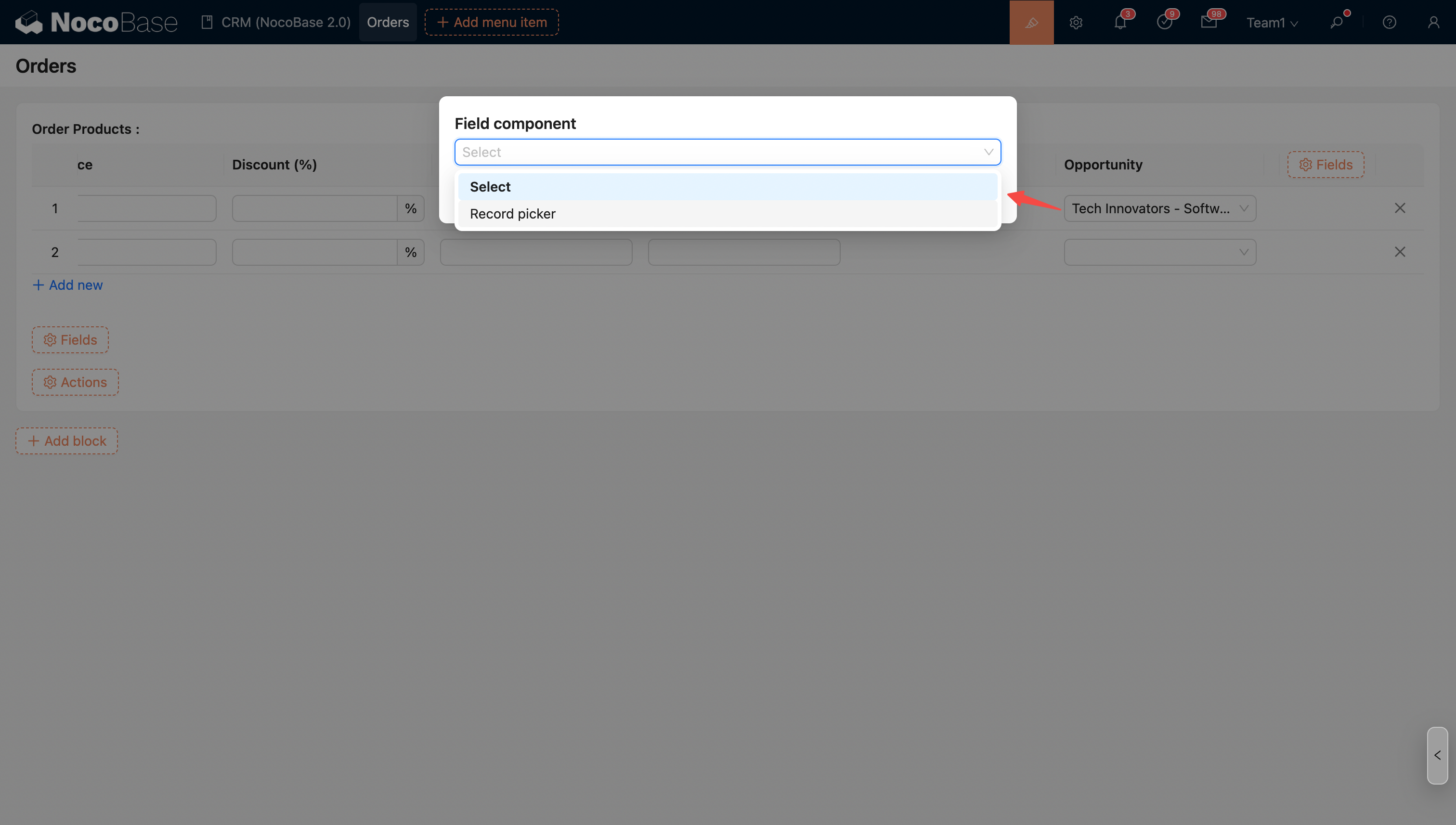

The default component for a relationship field is the Dropdown (supports Dropdown/Data Picker).

20251027223754

#Field Configuration Options

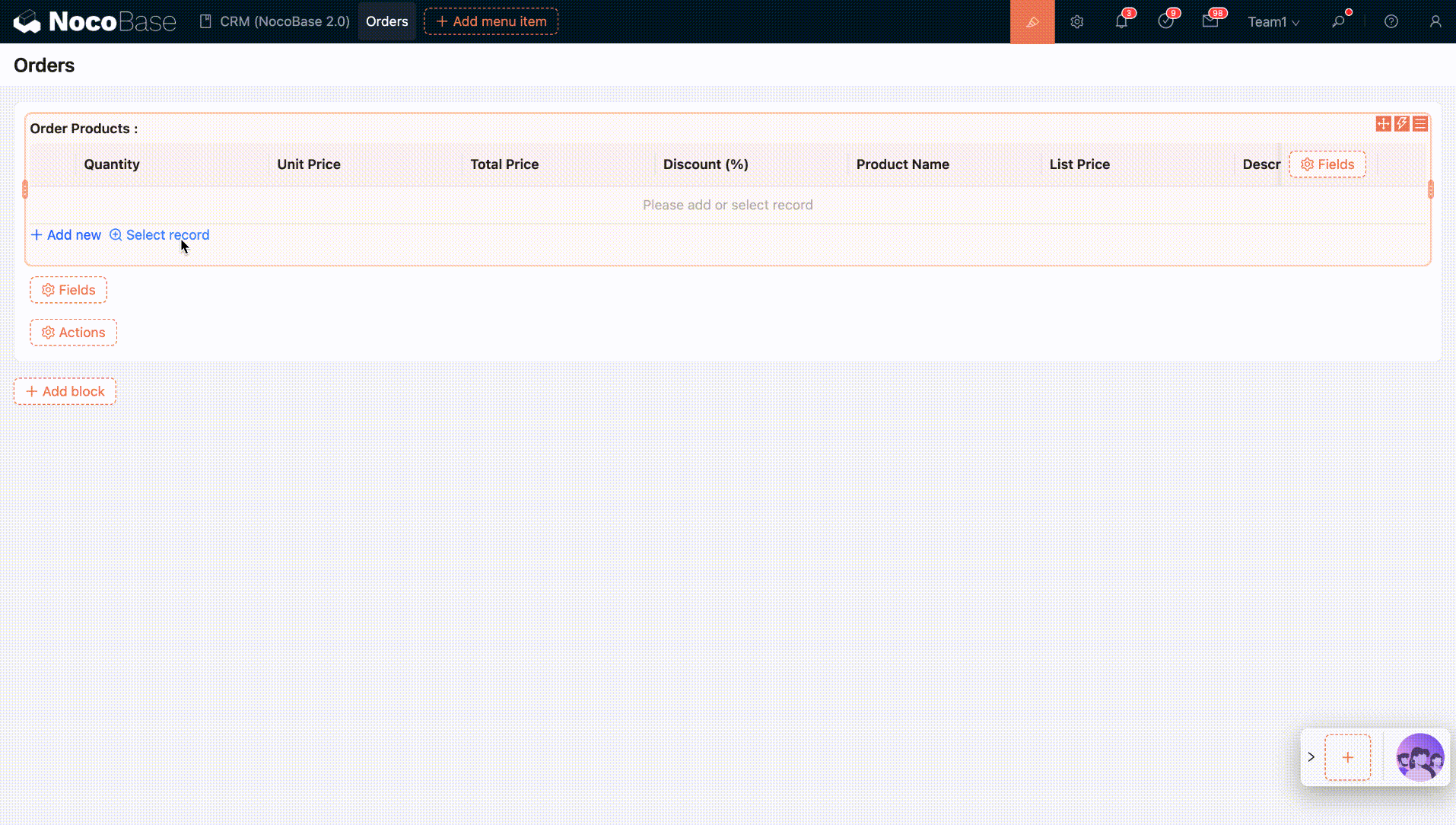

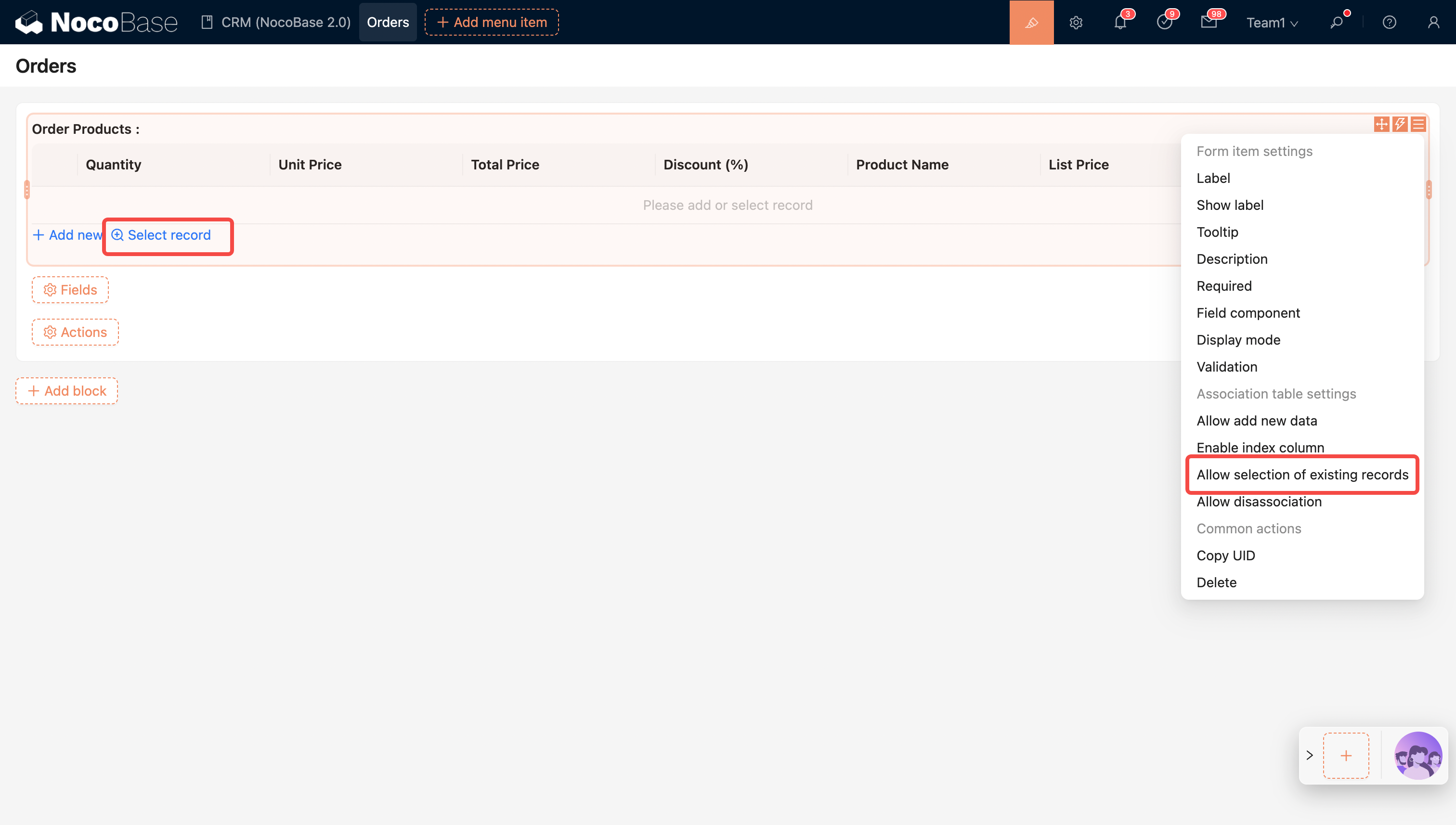

#Allow selecting existing data (disabled by default)

Supports selecting and associating existing data.

20251027224008

20251027224023

#Field Component

Field Component: Switch to other relationship field components, such as Dropdown, Data Picker, etc.

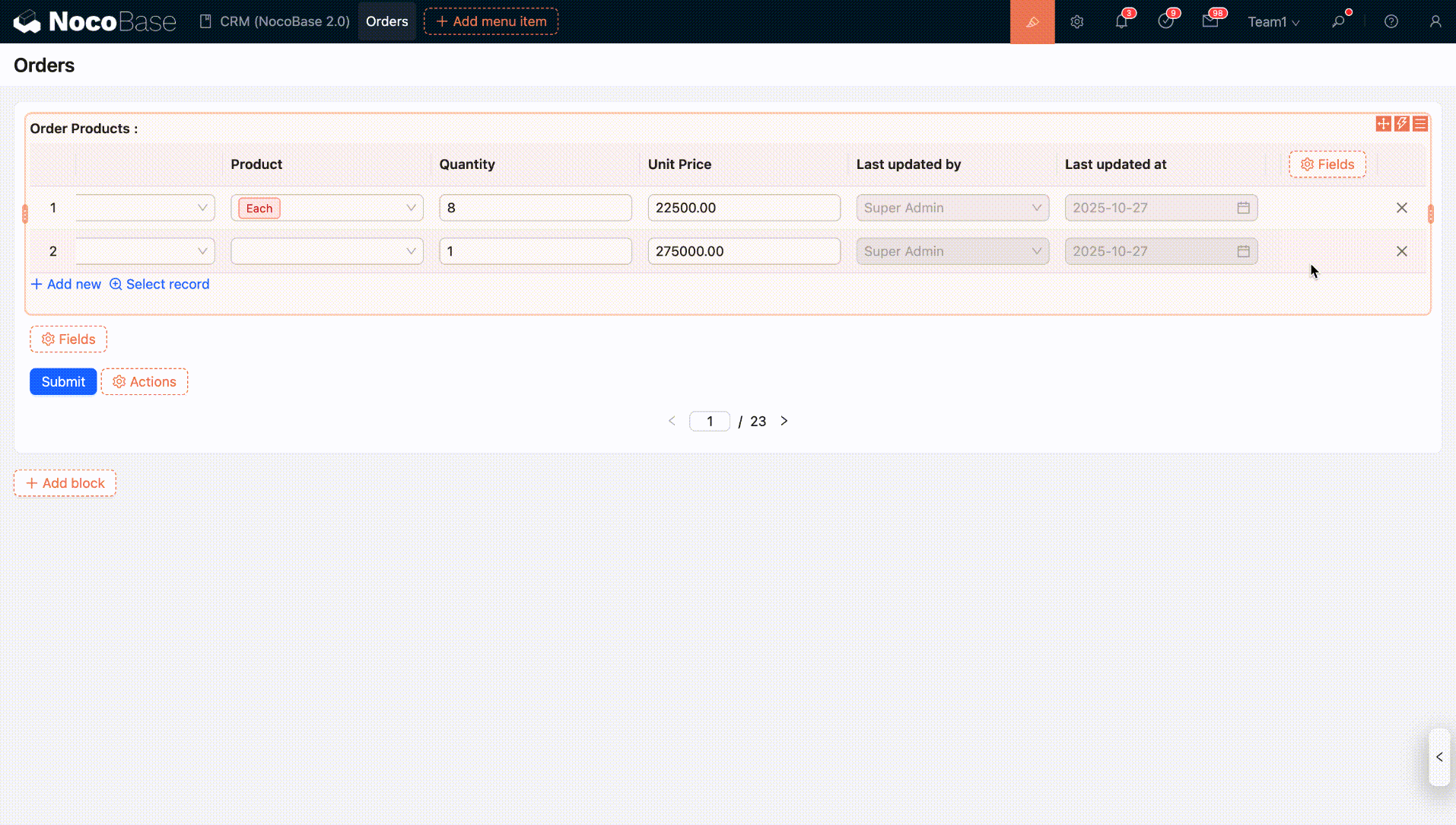

#Allow unlinking existing data

Whether to allow unlinking existing data for the relationship field in the edit form.

20251028153425
