#Details Block

#Introduction

The Details block is used to display the field values of each data record. It supports flexible field layouts and has built-in data action functions, making it convenient for users to view and manage information.

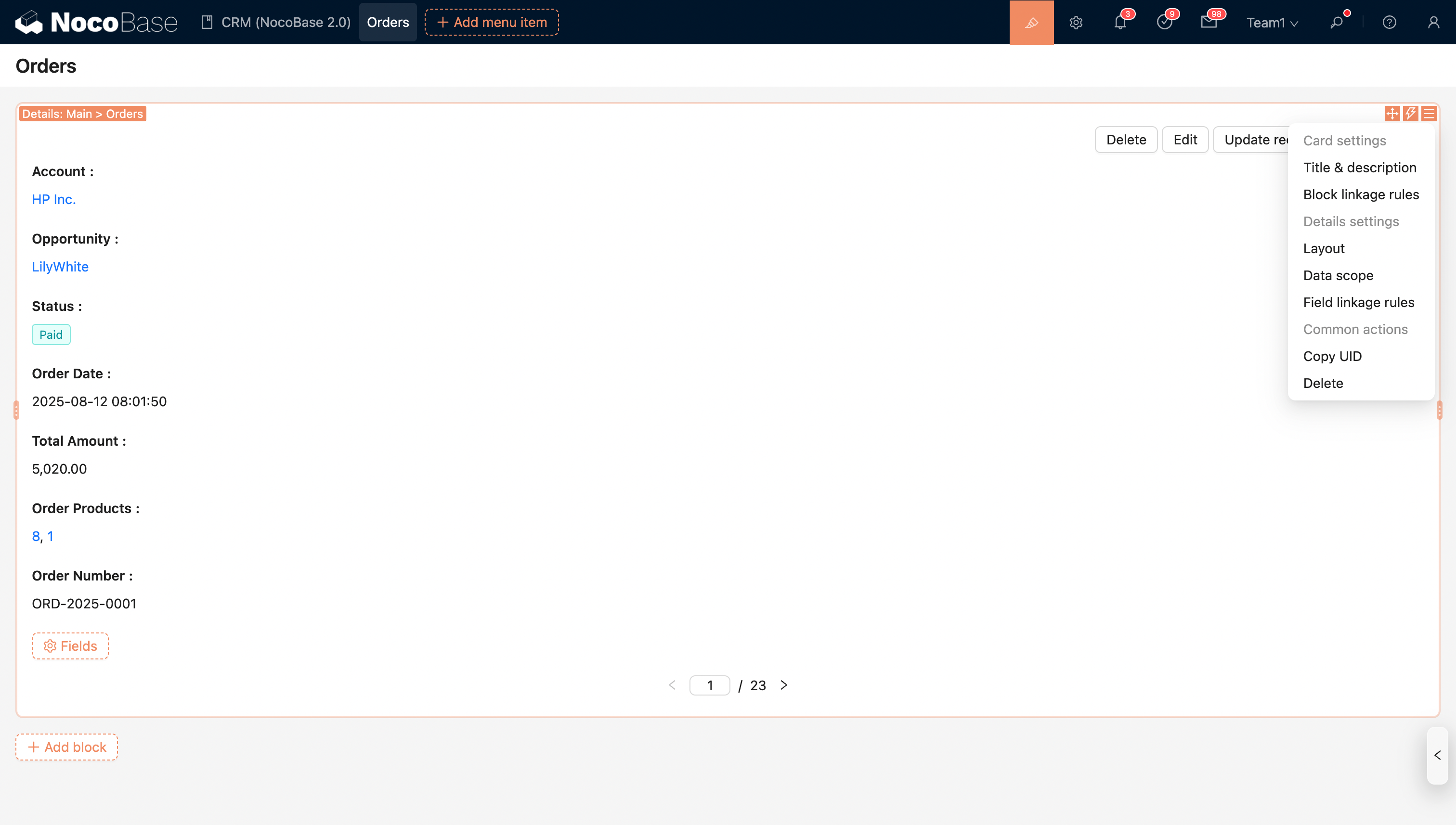

#Block Settings

20251029202614

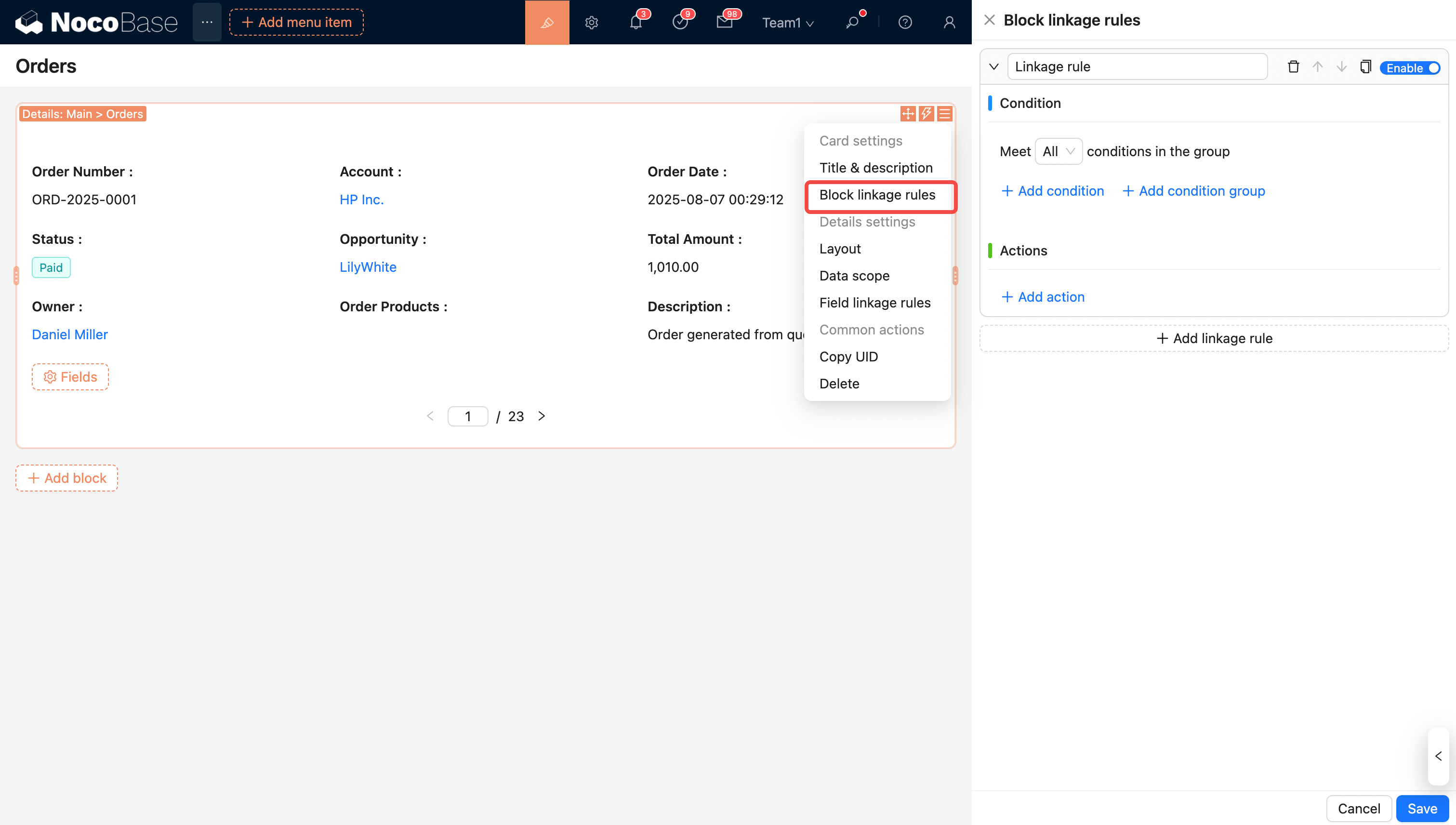

#Block Linkage Rules

Control block behavior (e.g., whether to display it or execute JavaScript) through linkage rules.

20251023195004

For more details, see Linkage Rules

#Set Data Scope

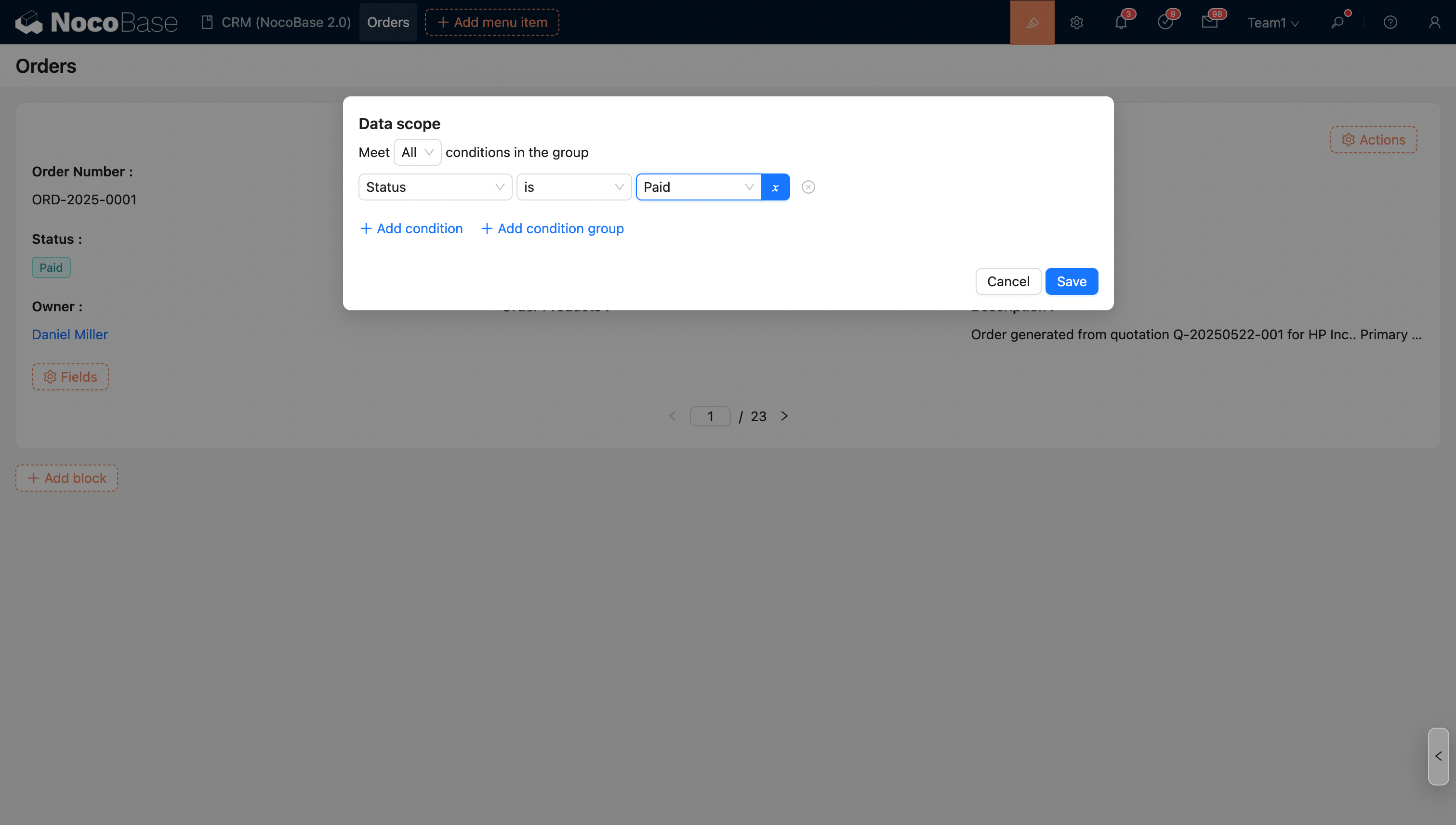

Example: Only display paid orders

20251023195051

For more details, see Set Data Scope

#Field Linkage Rules

Linkage rules in the Details block support dynamically setting fields to be shown/hidden.

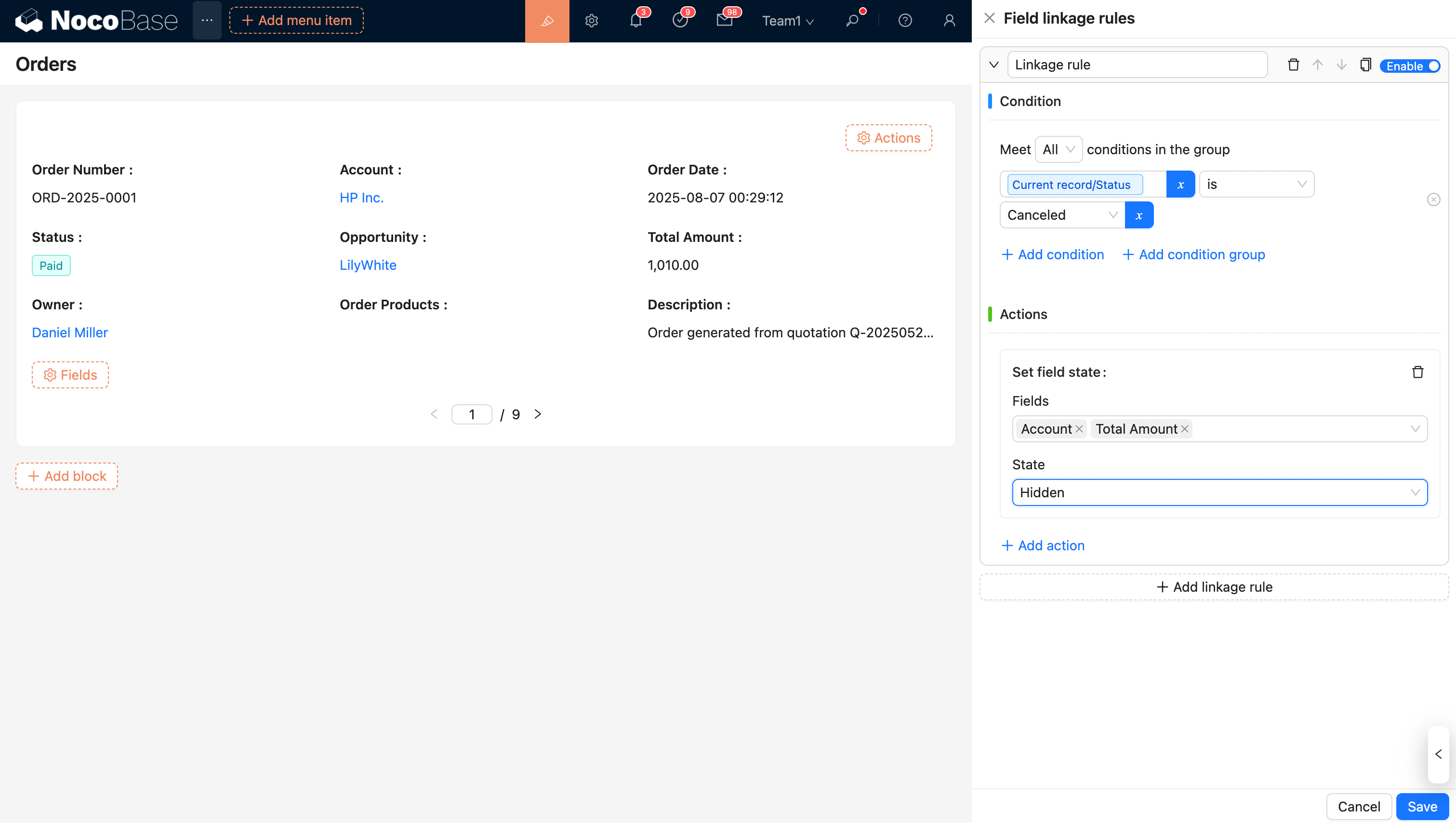

Example: Do not display the amount when the order status is "Cancelled".

20251023200739

For more details, see Linkage Rules

#Configure Fields

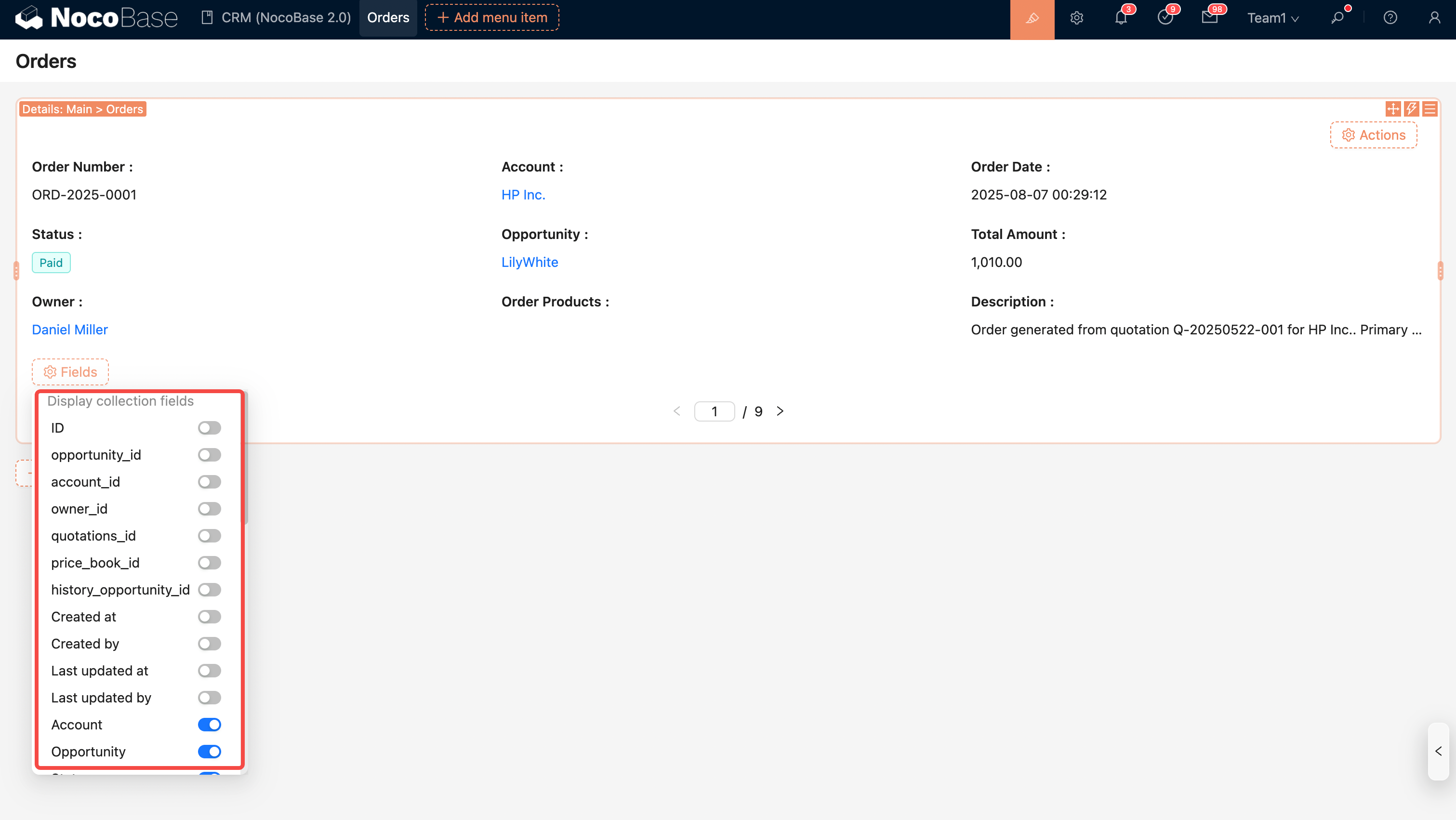

#Fields from This Collection

Note: Fields from inherited collections (i.e., parent collection fields) are automatically merged and displayed in the current field list.

20251023201012

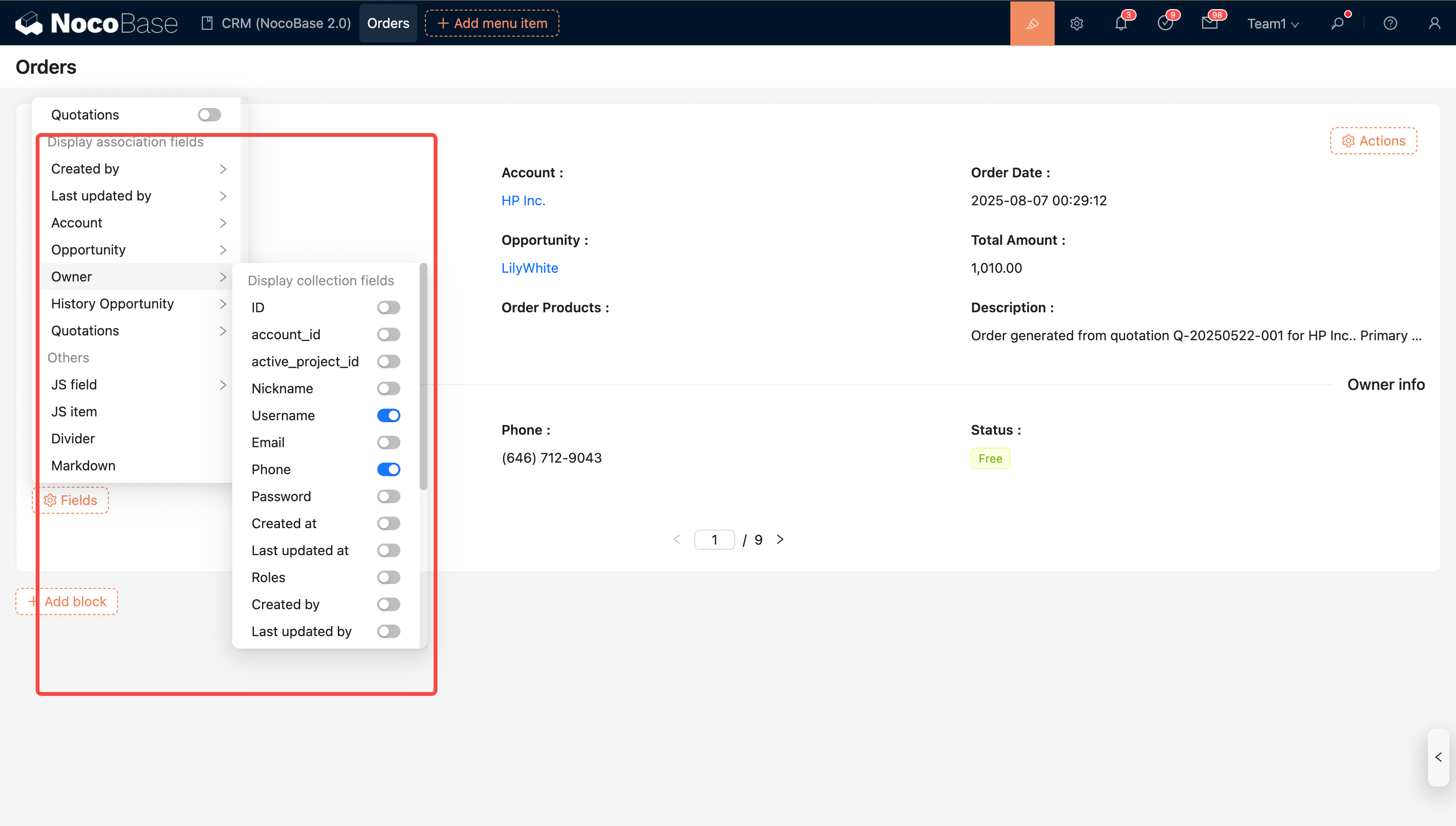

#Fields from Associated Collections

Note: Displaying fields from associated collections is supported (currently only for to-one relationships).

20251023201258

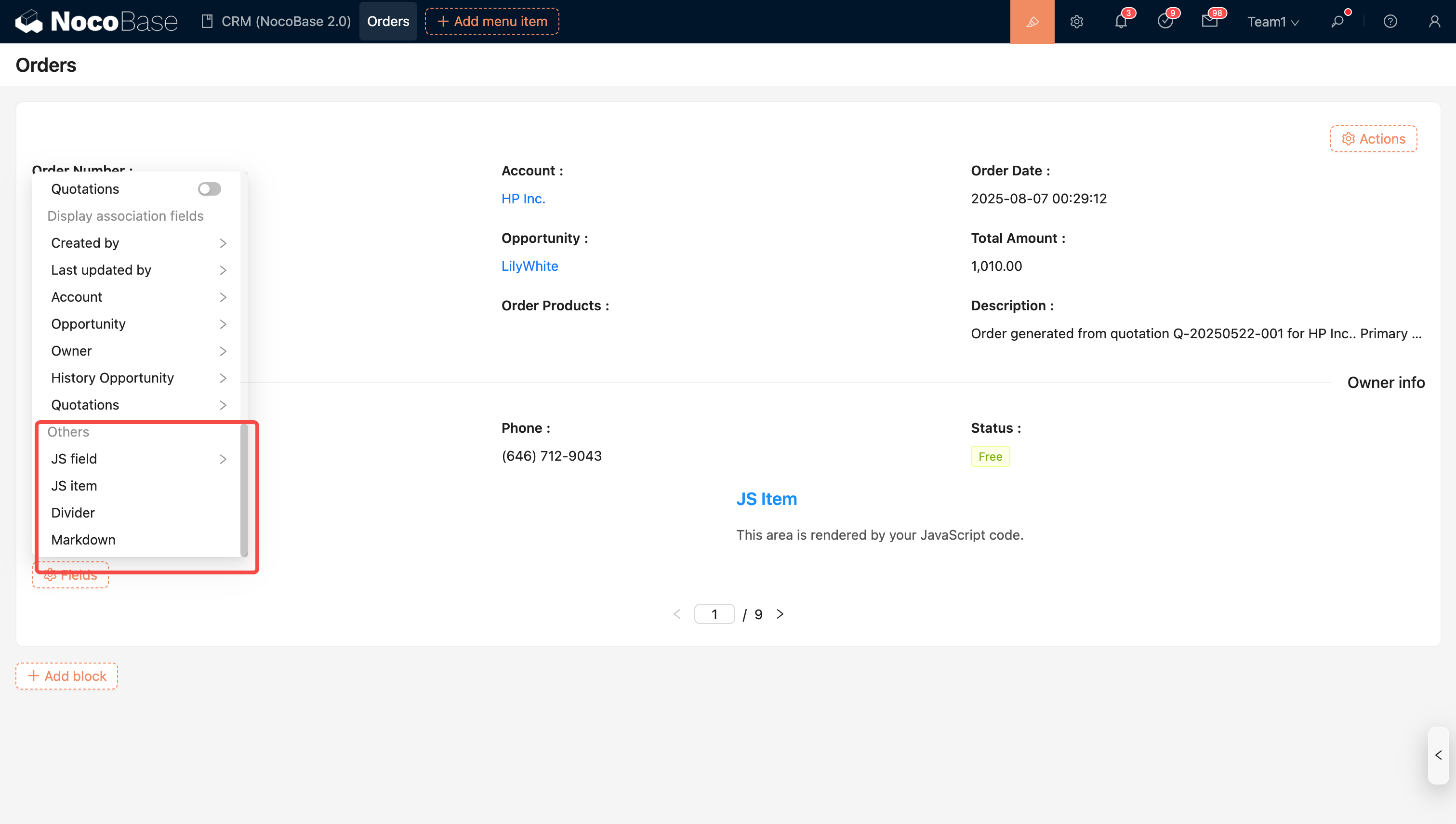

#Other Fields

  • JS Field
  • JS Item
  • Divider
  • Markdown

20251023201514

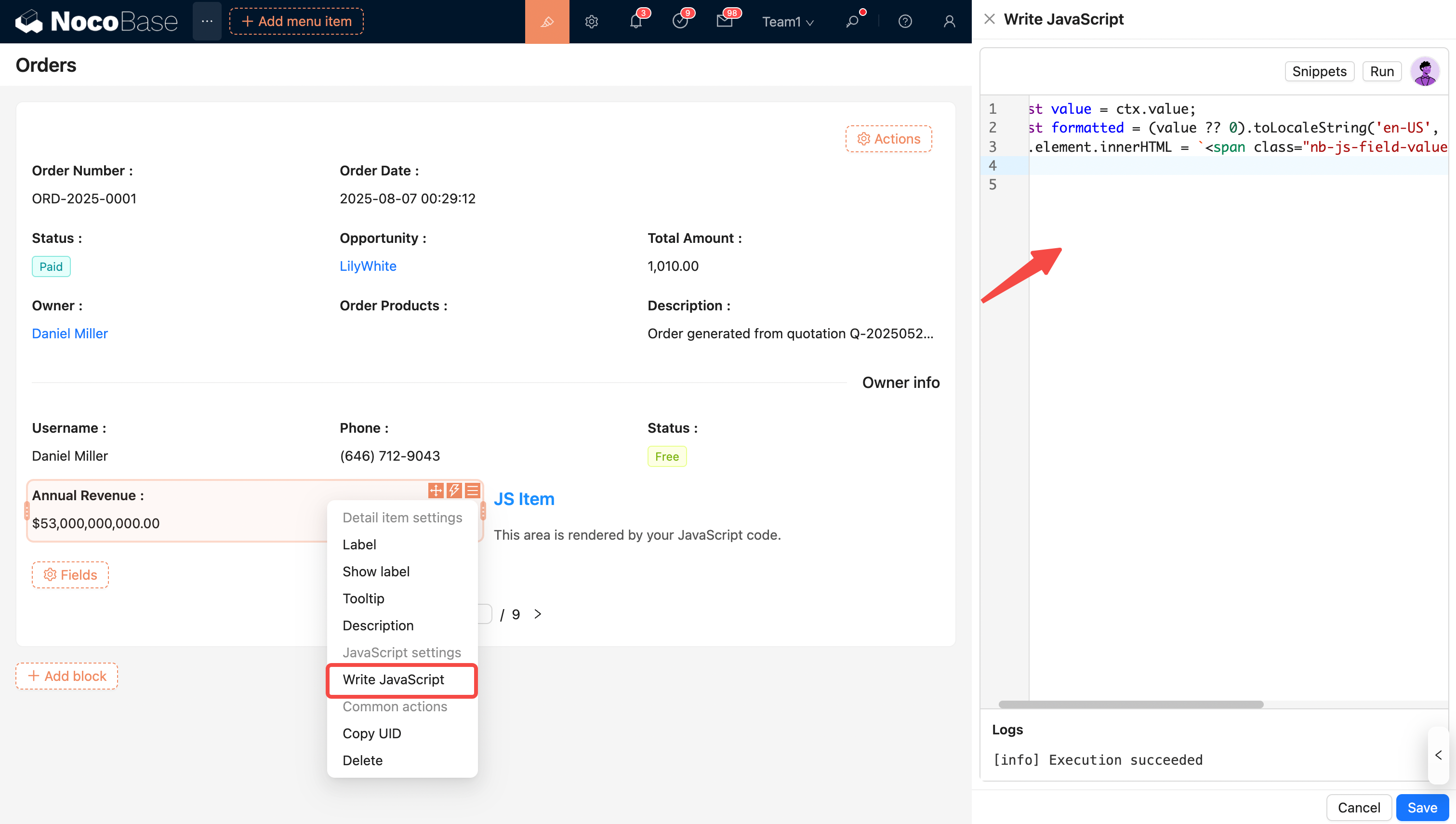

Tip: You can write JavaScript to implement custom display content, allowing you to show more complex information.
For example, you can render different display effects based on different data types, conditions, or logic.

20251023202017

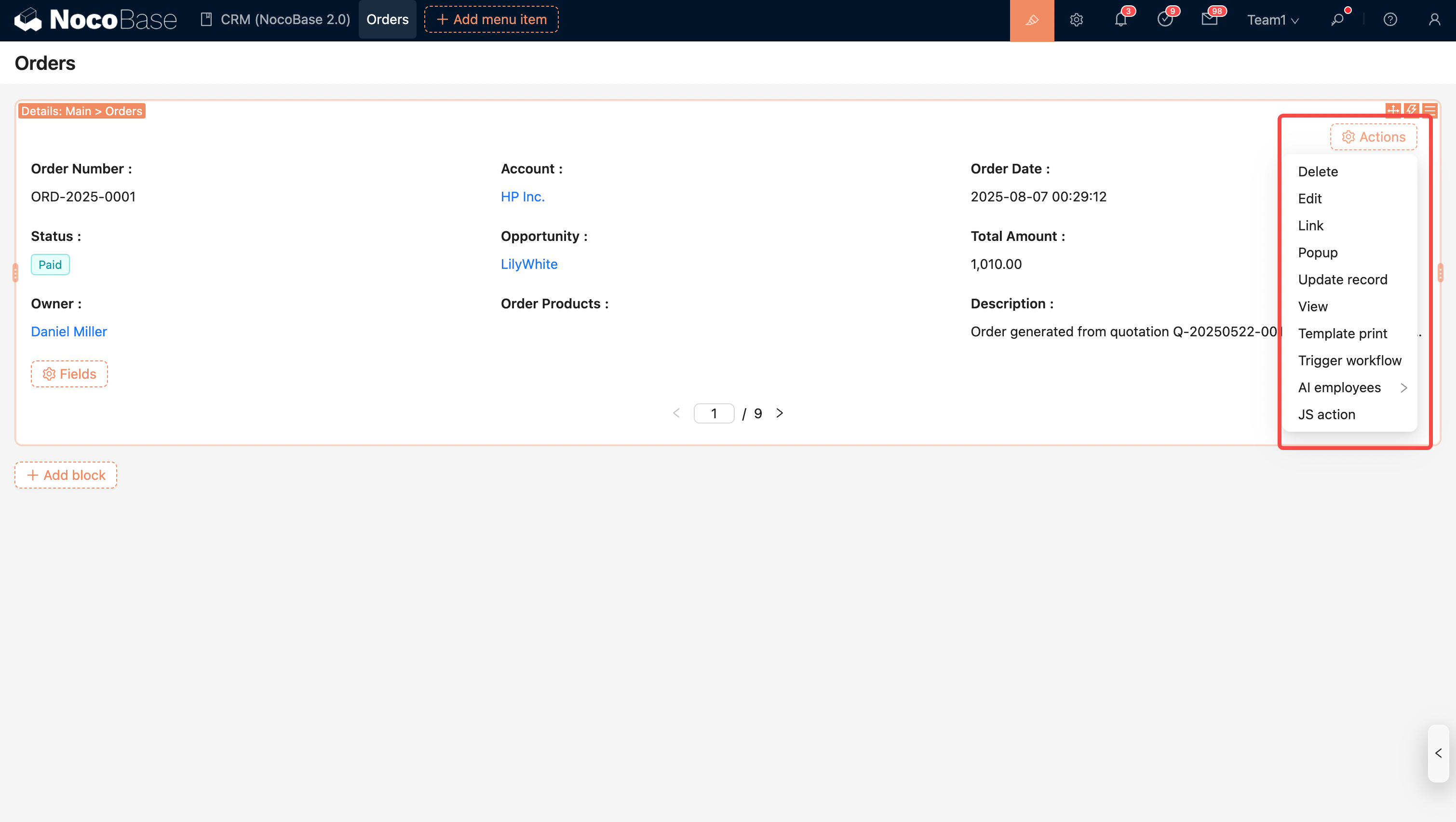

#Configure Actions

20251023200529

  • Edit
  • Delete
  • Link
  • Pop-up
  • Update Record
  • Trigger Workflow
  • JS Action
  • AI Employee
